LF DriverPrestige series
SEAS
SEAS H1353-08/06 T18REX/XFC
SEAS H1353-08/06 T18REX/XFC is a 7" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 30Hz, Qts 0.24, Vas 42L, Xmax 3mm, sensitivity 88dB, plus 38cm³ Vd and 103 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
7"
Impedance
8Ω
RMS Power
200W
Sensitivity
88.0dB
EBP
103
Vented alignment
Vd
38cm³

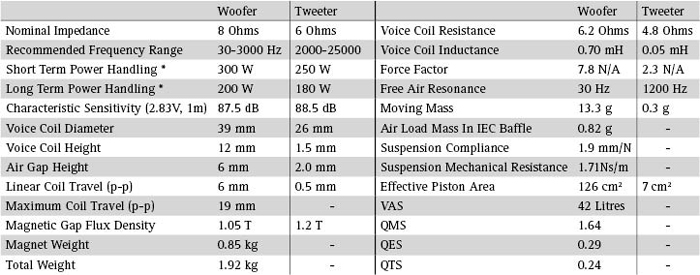

Overall Parameters
Valid
Fs30Hz
Qts0.24
Qes0.29
Qms1.6
Vas42.0L
Re6.2Ω
Le0.70mH
BL7.8Tm
Sd126cm²
Mms13g
Xmax3.0mm
SPL88dB
Power200W
Impedance8Ω
F Low30Hz
F High3000Hz
Voice Coil39mm
Flux Density1.05T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.9kg
Driver Components
LFPrimary
7"Fs30 Hz
Qts0.24
Qes0.29
Qms1.6
Vas42.0 L
Re6.2 Ω
Le0.70 mH
BL7.8 Tm
Sd126 cm²
Mms13 g
Xmax3.0 mm
SPL88 dB
Power200 W
Impedance8 Ω
F Low30 Hz
F High3000 Hz
Voice Coil39 mm
Flux Density1.05 T
Cms1.9
Power Peak300
Rms1.71
Xmech9.5
Section dimensions
Weight1920.0 kg
