Overview
LF DriverPrestige series
SEAS
SEAS H1316-08 CA26RE4X
SEAS H1316-08 CA26RE4X is a 15" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 25Hz, Qts 0.28, Vas 164L, Xmax 4mm, sensitivity 91.3dB, plus 140cm³ Vd and 83 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
80W
Sensitivity
91.3dB
EBP
83
Either alignment
Vd
140cm³

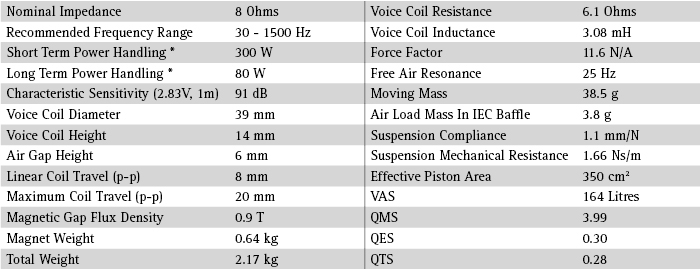

T/S Parameters
Valid
Fs25Hz
Qts0.28
Qes0.30
Qms4.0
Vas164.0L
Re6.1Ω
Le3.08mH
BL11.6Tm
Sd350cm²
Mms39g
Xmax4.0mm
SPL91dB
Power80W
Impedance8Ω
F Low30Hz
F High1500Hz
Voice Coil39mm
Flux Density0.90T
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£244.82
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

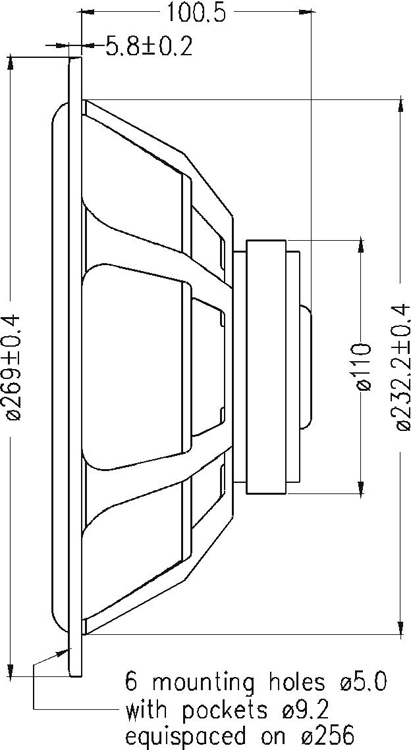

Dimensions & Physical
Weight2.2kg
