LF DriverPrestige series
SEAS
SEAS H1305-08 CA26RFX
SEAS H1305-08 CA26RFX is a 2" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 29Hz, Qts 0.34, Vas 129L, Xmax 7mm, sensitivity 91dB, plus 245cm³ Vd and 73 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
8Ω
RMS Power
100W
Sensitivity
91.0dB
EBP
73
Either alignment
Vd
245cm³

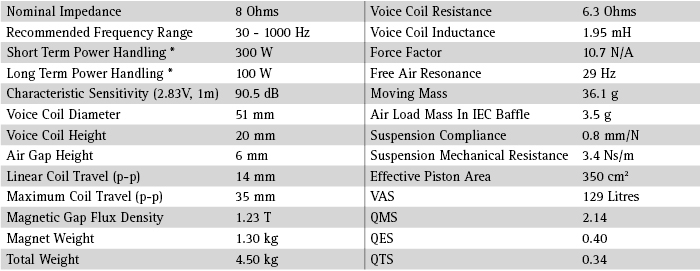

T/S Parameters
Valid
Fs29Hz
Qts0.34
Qes0.40
Qms2.1
Vas129.0L
Re6.3Ω
Le1.95mH
BL10.7Tm
Sd350cm²
Mms36g
Xmax7.0mm
SPL91dB
Power100W
Impedance8Ω
F Low30Hz
F High1000Hz
Voice Coil51mm
Flux Density1.23T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

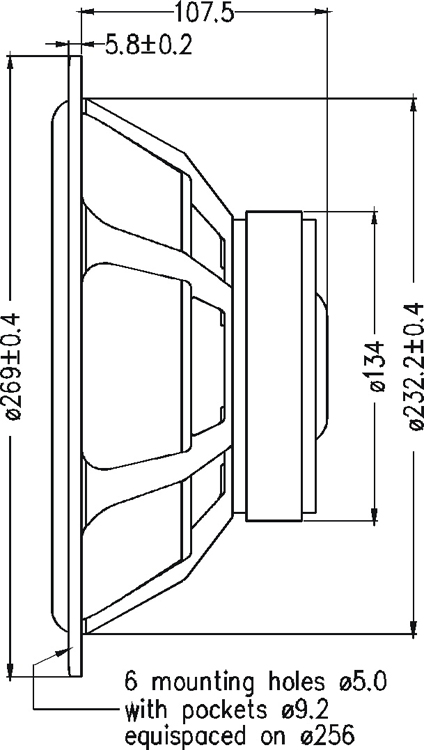

Dimensions & Physical
Weight4.5kg
