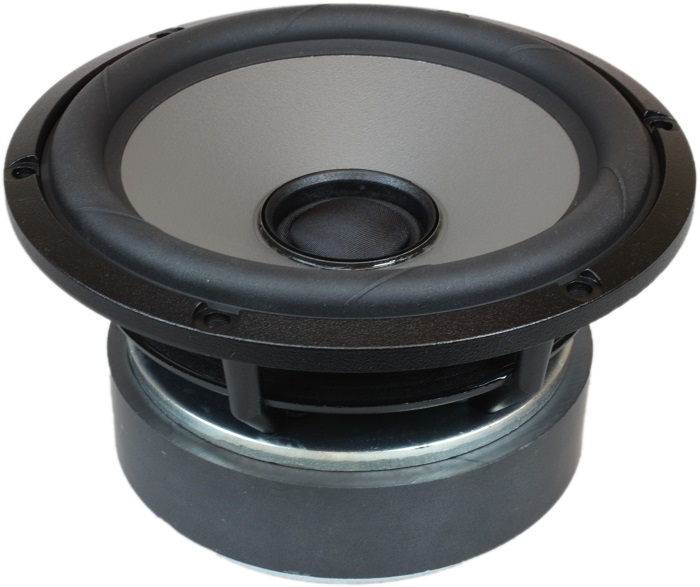

LF driver · Excel series
SEAS E0080-04/06 C16NX001/F 4Ω
4 Ω
£409.76
SteadySoundImports · 1 in stock · All 1 offer
- Fs
- 35Hz
- Xmax
- 7mm
- SPL
- 85dB
- Pe
- –
- BL
- 5.7T·m
- Vd
- 66cm³
- Qts
- 0.31
- Vas
- 16L

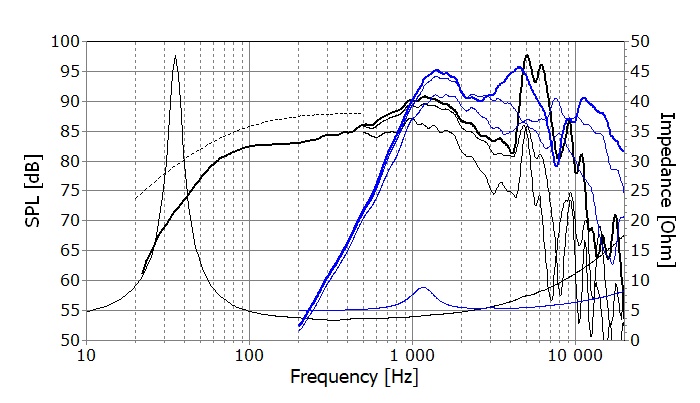

Published graphs
SEAS E0080-04/06 C16NX001/F is a 4 ohm LF driver. The validated T/S data includes Fs 35 Hz, Qts 0.31, Vas 16 L, Xmax 7 mm, sensitivity 85.2 dB, plus 66 cm³ Vd and 106 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £409.76.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.31
- Qes
- 0.33
- Qms
- 4.8
- Vas
- 16L
- Re
- 3Ω
Motor and cone
- BL
- 5.7T·m
- Sd
- 94cm²
- Mms
- 16g
- Xmax
- 7mm
- Vd †
- 66cm³
Power and response
- Sensitivity †
- 85.2dB
- Impedance
- 4Ω
- EBP †
- 106 · Leans vented
Other published values
- Cms
- 1.26mm/N
- Rms
- 0.74kg/s
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary
- BL
- 5.7T·m
- Fs
- 35Hz
- Re
- 3Ω
- Sd
- 94cm²
- Cms
- 1.26mm/N
- Mms
- 16g
- Qes
- 0.33
- Qms
- 4.8
- Qts
- 0.31
- Rms
- 0.74kg/s
- SPL
- 85.2dB
- Vas
- 16L
- Xmax
- 7mm
- Impedance
- 4Ω
- Calculated sensitivity †
- 85.2dB
02
Compare
Same-size drivers, compared with the E0080-04/06 C16NX001/F. Clear differences are green when better and red when worse.
This driverE0080-04/06 C16NX001/F
Best price
£409.76
Fs
35 Hz
Qts
0.31
Vas
16 L
BL
5.7 T·m
Xmax
7 mm
Sensitivity
85.2 dB
Power
–
Finding drivers like the E0080-04/06 C16NX001/F…
Search similarTune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
SoundImports | £409.76, the lowest price | 1 in stock | Visit shop at SoundImports |
Best price over time
Tracked since 1 Apr
