Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Not enough T/S data
Missing Mms
SEAS E0060-08/06 C18EN002/A 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverExcel series
SEAS
SEAS E0060-08/06 C18EN002/A
SEAS E0060-08/06 C18EN002/A is a 7" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 98Hz, Qts 0.62, Vas 3.7L, Xmax 3mm, sensitivity 88.1dB, plus 39cm³ Vd and 114 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Mms
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
- EBP can be derived from Fs and Qes
Size
7"
Impedance
8Ω
RMS Power
100W
Sensitivity
88.1dB
87.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
114
Vented alignment
Vd
39cm³

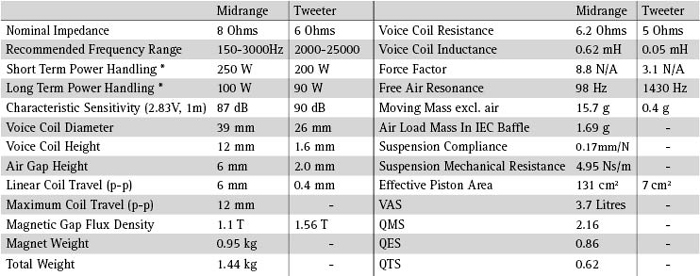

Overall Parameters
Valid
Fs98Hz
Qts0.62
Qes0.86
Qms2.2
Vas3.7L
Re6.2Ω
Le0.62mH
BL8.8Tm
Sd131cm²
Xmax3.0mm
SPL88dB
Power100W
Impedance8Ω
F Low150Hz
F High3000Hz
Voice Coil39mm
Flux Density1.10T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Mms
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Mms
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.4kg
Driver Components
LFPrimary
7"Fs98 Hz
Qts0.62
Qes0.86
Qms2.2
Vas3.7 L
Re6.2 Ω
Le0.62 mH
BL8.8 Tm
Sd131 cm²
Xmax3.0 mm
SPL88 dB
Power100 W
Impedance8 Ω
F Low150 Hz
F High3000 Hz
Voice Coil39 mm
Flux Density1.10 T
Cms0.17
Power Peak250
Rms4.95
Xmech6
Section dimensions
Weight1440.0 kg
