LF driver · Excel series · 51 mm voice coil · 100 W
SEAS E0046-08S W26FX002 8Ω
8 Ω · 30–1000 Hz
£515.94
Falcon Acoustics · In stock · All 2 offers
- Fs
- 31Hz
- Xmax
- 7mm
- SPL
- 89dB
- Pe
- 100W
- BL
- 10.9T·m
- Vd
- 231cm³
- Qts
- 0.39
- Vas
- 87L

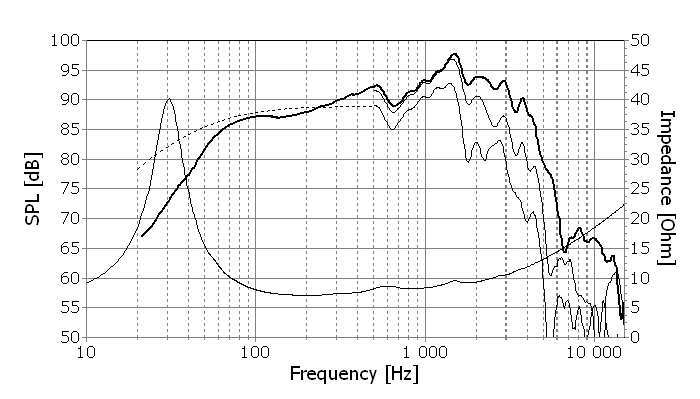

Published graphs
SEAS E0046-08S W26FX002 is an 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 31 Hz, Qts 0.39, Vas 87 L, Xmax 7 mm, sensitivity 89.4 dB, plus 231 cm³ Vd and 66 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £515.94.
The published T/S values agree with each other
Thiele/Small
- Fs
- 31Hz
- Qts
- 0.39
- Qes
- 0.47
- Qms
- 2.5
- Vas
- 87L
- Re
- 6.2Ω
- Le
- 0.81mH
Motor and cone
- BL
- 10.9T·m
- Sd
- 330cm²
- Mms
- 42g
- Xmax
- 7mm
- Vd †
- 231cm³
- Voice coil
- 51mm
- Flux density
- 1.23T
Power and response
- Sensitivity †
- 89.4dB
- Manufacturer sensitivity
- 89dB
- Power
- 100W
- Impedance
- 8Ω
- Range
- 30–1000Hz
- EBP †
- 66 · Sealed or vented

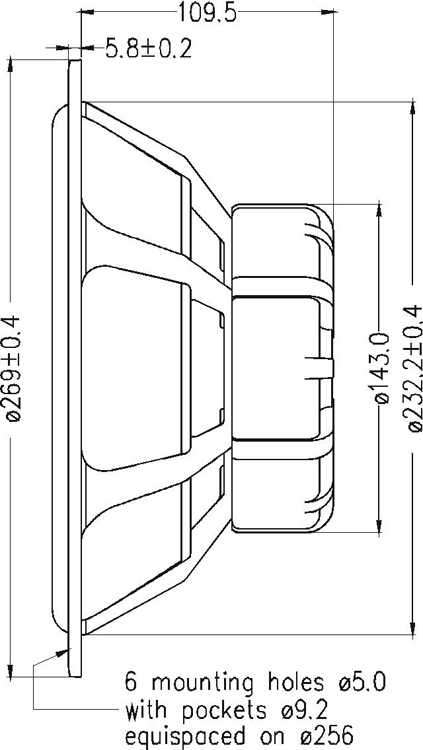

Size and mounting
- Weight
- 4.5kg
Other published values
- Cms
- 0.60mm/N
- Rms
- 3.52kg/s
- Xmech
- 17.5
- Power Peak
- 300
† Calculated by bits from the published values
What this validation status means

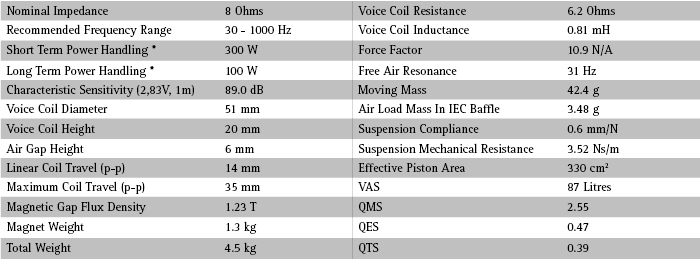

Everything else SEAS lists
LF · Primary
- BL
- 10.9T·m
- Fs
- 31Hz
- Le
- 0.81mH
- Re
- 6.2Ω
- Sd
- 330cm²
- Cms
- 0.60mm/N
- Mms
- 42g
- Qes
- 0.47
- Qms
- 2.5
- Qts
- 0.39
- Rms
- 3.52kg/s
- SPL
- 89.4dB
- Vas
- 87L
- Xmax
- 7mm
- Xmech
- 17.5
- Power
- 100W
- Impedance
- 8Ω
- Power Peak
- 300
- Flux density
- 1.23T
- Sensitivity
- 89dB
- Low limit
- 30Hz
- Calculated sensitivity †
- 89.4dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 89dB
- Voice coil
- 51mm
- Weight
- 4.5kg
