Overview
LF DriverExcel series
SEAS

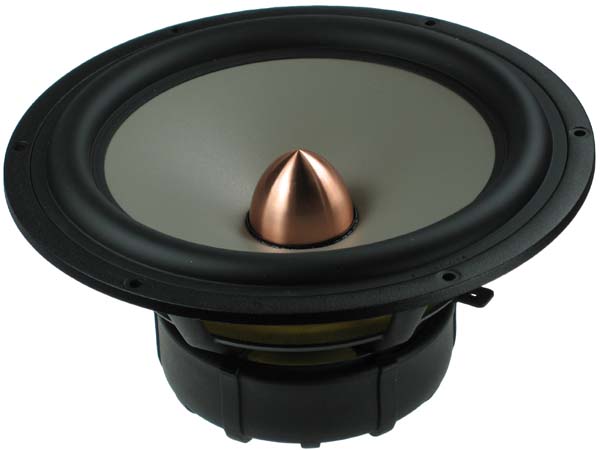

SEAS E0026-08S W26FX001
SEAS E0026-08S W26FX001 is a 2" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 20Hz, Qts 0.35, Vas 162L, Xmax 7mm, sensitivity 87dB, plus 231cm³ Vd and 49 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
8Ω
RMS Power
150W
Sensitivity
87.0dB
EBP
49
Sealed alignment
Vd
231cm³

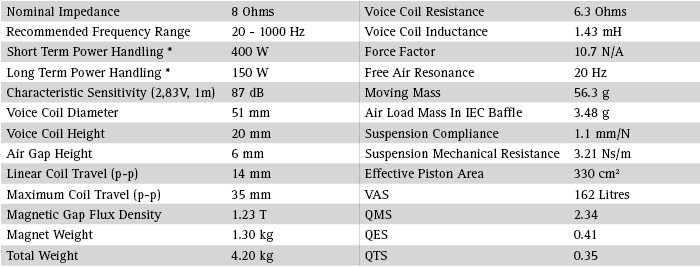

T/S Parameters
Valid
Fs20Hz
Qts0.35
Qes0.41
Qms2.3
Vas162.0L
Re6.3Ω
Le1.43mH
BL10.7Tm
Sd330cm²
Mms56g
Xmax7.0mm
SPL87dB
Power150W
Impedance8Ω
F Low20Hz
F High1000Hz
Voice Coil51mm
Flux Density1.23T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

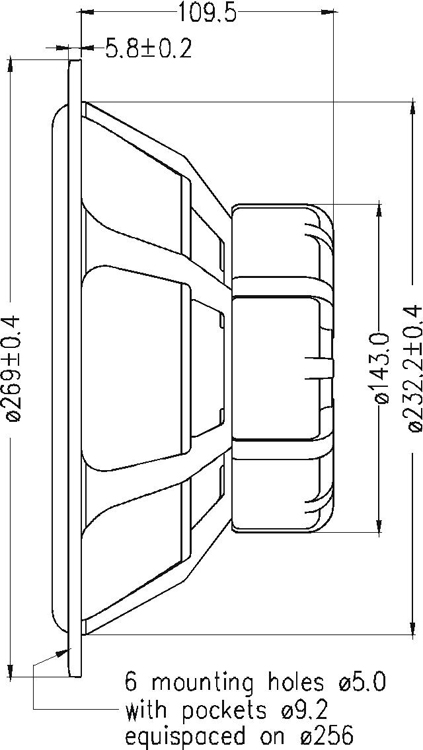

Dimensions & Physical
Weight4.2kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SEAS
E0026-08S W26FX001
2"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
SEAS

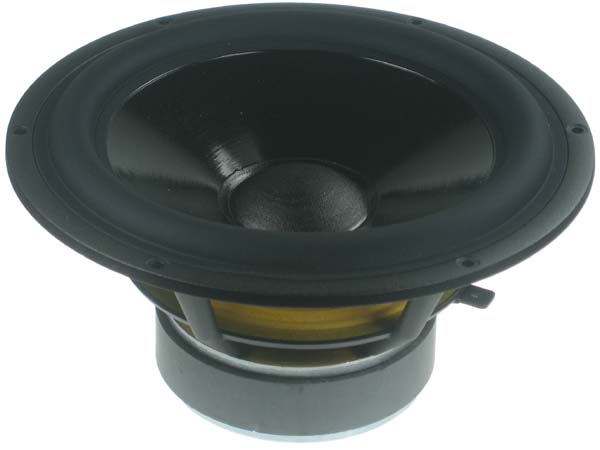

H1305-08 CA26RFX
2"
Xmax7mm0%
Qts0.34-3%
BL10.7Tm0%
Vas129L-20%
Qes0.4-2%
73%
Similarity
SEAS

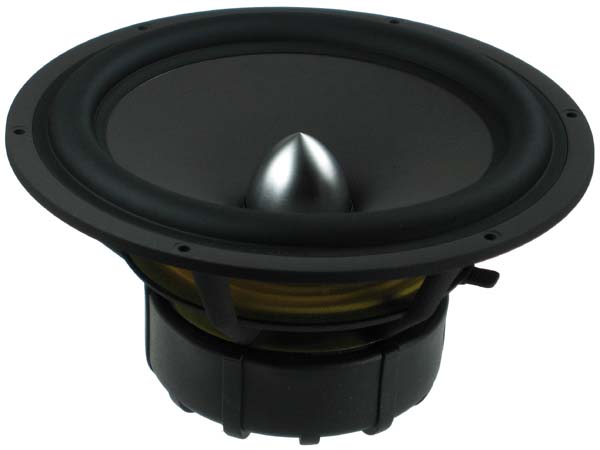

E0046-08S W26FX002
