5-inch passive radiator · SB13 series

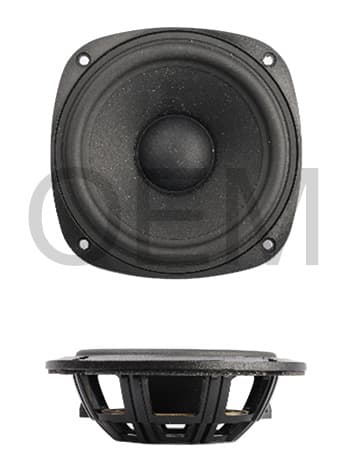

SB Acoustics SB13PFC-00
No current price
Simulator support pending: 00 Simulator import needs complete passive-radiator parameters.
- Fs
- 23Hz
- Sd
- 87cm²
- Xmax
- –
- Mms
- 36g
- Vas
- 14L
- Qms
- 5.9
SB Acoustics SB13PFC-00 is a 5-inch passive radiator. The source-backed mechanical data includes Fs 23 Hz, Vas 14.2 L. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Partial source evidence
No automated T/S validation result is published for this record yet.
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Thiele/Small
- Fs
- 23Hz
- Qms
- 5.9
- Vas
- 14.2L
Motor and cone
- Sd
- 87cm²
- Mms
- 36g
Size and mounting
- Weight
- 0.13kg
Other published values
- Cms
- 1.33mm/N
Everything else SB Acoustics lists
LF · Primary · 5″
- Fs
- 23Hz
- Sd
- 87cm²
- Cms
- 1.33mm/N
- Mms
- 36g
- Qms
- 5.9
- Vas
- 14.2L
- Weight
- 0.13kg
No current price found. Pricing may appear after the next vendor refresh.
