4-inch passive radiator · SB12 series

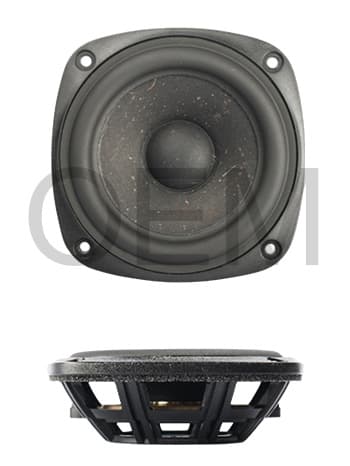

SB Acoustics SB12PFC-00
£16.98
14%RumoH · All 2 offers
Simulator support pending: 00 Simulator import needs complete passive-radiator parameters.
- Fs
- 34Hz
- Sd
- 50cm²
- Xmax
- –
- Mms
- 19g
- Vas
- 4L
- Qms
- 12.5
SB Acoustics SB12PFC-00 is a 4-inch passive radiator. The source-backed mechanical data includes Fs 34 Hz, Vas 4.2 L. bits tracks UK vendor pricing, price movement, and datasheet links, with a current best price of £16.98.
Partial source evidence
No automated T/S validation result is published for this record yet.
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Thiele/Small
- Fs
- 34Hz
- Qms
- 12.5
- Vas
- 4.2L
Motor and cone
- Sd
- 50cm²
- Mms
- 19g
Size and mounting
- Weight
- 78kg
Other published values
- Cms
- 1.20mm/N
Everything else SB Acoustics lists
LF · Primary · 4″
- Fs
- 34Hz
- Sd
- 50cm²
- Cms
- 1.20mm/N
- Mms
- 19g
- Qms
- 12.5
- Vas
- 4.2L
- Weight
- 78kg
- SoundImports4.0 out of 51 rating · Checked 30 Sep 2026Read reviews on SoundImports
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
RumoH | £16.98, the lowest price | Stock not listed | Visit shop at RumoH | |
SoundImports | £19.67 | 16% above the lowest price | 2 in stock | Visit shop at SoundImports |
Best price over time
Tracked since 1 Apr
