2-inch compression driver · PD series · 72 mm voice coil · 105 W

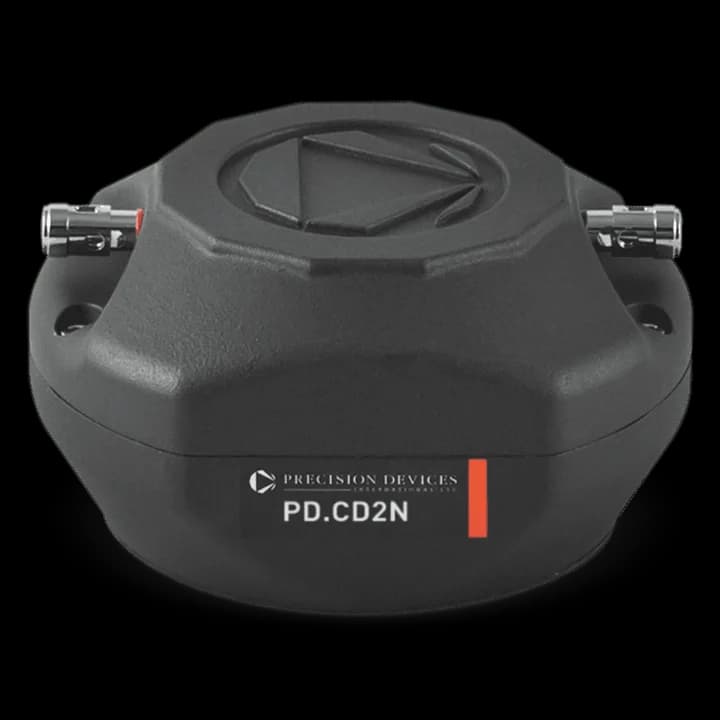

Precision Devices PD.CD2N 8Ω
8 Ω · 500–18000 Hz
No current price
- SPL
- 111dB
- Pe
- 105W
- Xover
- 1600Hz
- Throat
- 51mm
- VC
- 72mm
Precision Devices PD.CD2N is a 2-inch 8 ohm compression driver rated at 105 W RMS. The source-backed specifications include sensitivity 111 dB, range from 500 Hz, to 18000 Hz, throat 50.8 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 72mm
- Flux density
- 1.80T
Power and response
- Sensitivity
- 111dB
- Power
- 105W
- Impedance
- 8Ω
- Min. impedance
- 7.2Ω
- Range
- 500–18000Hz
- Crossover
- 1600Hz
- Throat
- 51mm
Size and mounting
- Diameter
- 140mm
- Bolt circle
- 101.6mm
- Depth
- 73mm
- Weight
- 2.3kg
Everything else Precision Devices lists
HF · Primary · 2″
- SPL
- 111dB
- Power
- 105W
- Impedance
- 8Ω
- Flux density
- 1.80T
- Sensitivity
- 111dB
- Low limit
- 500Hz
- High limit
- 18000Hz
- Throat
- 51mm
- Manufacturer sensitivity
- 111dB
- Min. impedance
- 7.2Ω
- Voice coil
- 72mm
- Crossover
- 1600Hz
- Weight
- 2.3kg
- Diameter
- 140mm
- Depth
- 73mm
- Bolt circle
- 101.6mm
