1-inch compression driver · PD series · 44 mm voice coil · 40 W
Precision Devices PD.CD1NB 8Ω
8 Ω · 1000–18500 Hz
No current price
- SPL
- 109dB
- Pe
- 40W
- Xover
- 1900Hz
- Throat
- 25mm
- VC
- 44mm

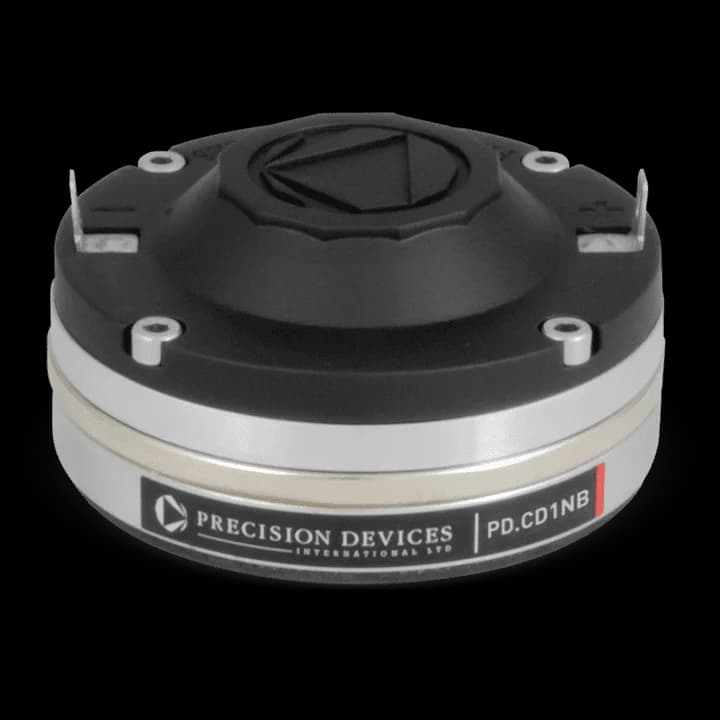

Precision Devices PD.CD1NB is a 1-inch 8 ohm compression driver rated at 40 W RMS. The source-backed specifications include sensitivity 109 dB, range from 1000 Hz, to 18500 Hz, throat 25.4 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 44mm
- Flux density
- 1.80T
Power and response
- Sensitivity
- 109dB
- Power
- 40W
- Impedance
- 8Ω
- Min. impedance
- 7.5Ω
- Range
- 1000–18500Hz
- Crossover
- 1900Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 85mm
- Bolt circle
- 76mm
- Depth
- 41mm
- Weight
- 0.85kg
Everything else Precision Devices lists
HF · Primary · 1″
- SPL
- 109dB
- Power
- 40W
- Impedance
- 8Ω
- Flux density
- 1.80T
- Sensitivity
- 109dB
- Low limit
- 1000Hz
- High limit
- 18500Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 109dB
- Min. impedance
- 7.5Ω
- Voice coil
- 44mm
- Crossover
- 1900Hz
- Weight
- 0.85kg
- Diameter
- 85mm
- Depth
- 41mm
- Bolt circle
- 76mm
