1-inch compression driver · PD series · 44 mm voice coil · 40 W

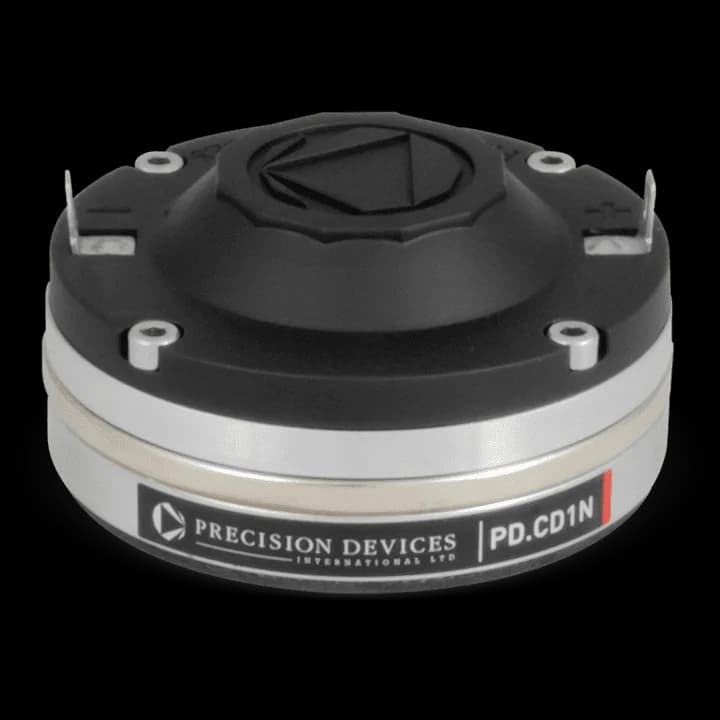

Precision Devices PD.CD1N 8Ω
8 Ω · 900–19000 Hz
No current price
- SPL
- 109dB
- Pe
- 40W
- Xover
- 1800Hz
- Throat
- 25mm
- VC
- 44mm
Precision Devices PD.CD1N is a 1-inch 8 ohm compression driver rated at 40 W RMS. The source-backed specifications include sensitivity 109 dB, range from 900 Hz, to 19000 Hz, throat 25.4 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 44mm
- Flux density
- 1.80T
Power and response
- Sensitivity
- 109dB
- Power
- 40W
- Impedance
- 8Ω
- Min. impedance
- 7.5Ω
- Range
- 900–19000Hz
- Crossover
- 1800Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 85mm
- Bolt circle
- 76mm
- Depth
- 41mm
- Weight
- 0.9kg
Everything else Precision Devices lists
HF · Primary · 1″
- SPL
- 109dB
- Power
- 40W
- Impedance
- 8Ω
- Flux density
- 1.80T
- Sensitivity
- 109dB
- Low limit
- 900Hz
- High limit
- 19000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 109dB
- Min. impedance
- 7.5Ω
- Voice coil
- 44mm
- Crossover
- 1800Hz
- Weight
- 0.9kg
- Diameter
- 85mm
- Depth
- 41mm
- Bolt circle
- 76mm
