1.5-inch compression driver · PD series · 64 mm voice coil · 90 W

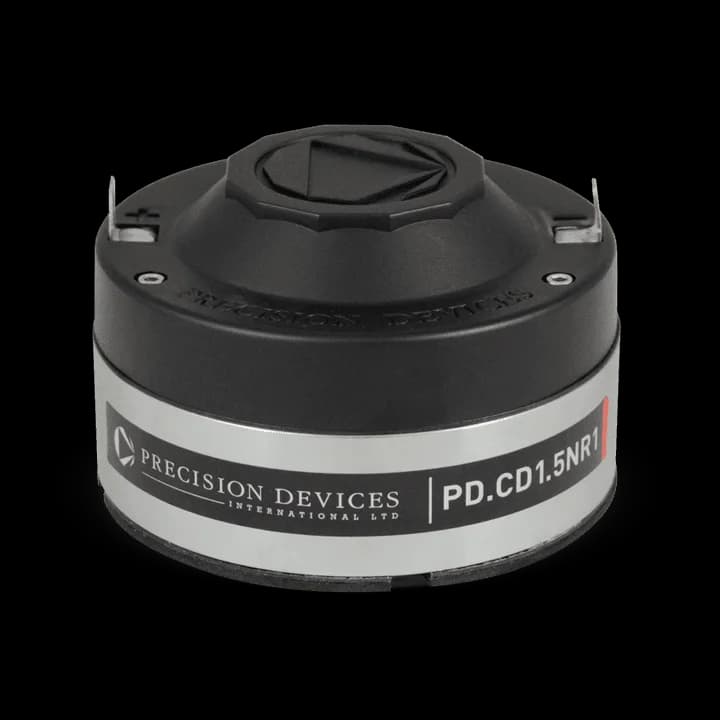

Precision Devices PD.CD1.5NR1 8Ω
8 Ω · 500–18000 Hz
No current price
- SPL
- 110dB
- Pe
- 90W
- Xover
- 1600Hz
- Throat
- 38mm
- VC
- 64mm
Precision Devices PD.CD1.5NR1 is a 1.5-inch 8 ohm compression driver rated at 90 W RMS. The source-backed specifications include sensitivity 110 dB, range from 500 Hz, to 18000 Hz, throat 38.1 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 64mm
- Flux density
- 1.80T
Power and response
- Sensitivity
- 110dB
- Power
- 90W
- Impedance
- 8Ω
- Min. impedance
- 6.4Ω
- Range
- 500–18000Hz
- Crossover
- 1600Hz
- Throat
- 38mm
Size and mounting
- Diameter
- 96mm
- Bolt circle
- 85mm
- Depth
- 60mm
- Weight
- 1.2kg
Everything else Precision Devices lists
HF · Primary · 1.5″
- SPL
- 110dB
- Power
- 90W
- Impedance
- 8Ω
- Flux density
- 1.80T
- Sensitivity
- 110dB
- Low limit
- 500Hz
- High limit
- 18000Hz
- Throat
- 38mm
- Manufacturer sensitivity
- 110dB
- Min. impedance
- 6.4Ω
- Voice coil
- 64mm
- Crossover
- 1600Hz
- Weight
- 1.2kg
- Diameter
- 96mm
- Depth
- 60mm
- Bolt circle
- 85mm
