1.5-inch compression driver · PD series · 64 mm voice coil · 90 W

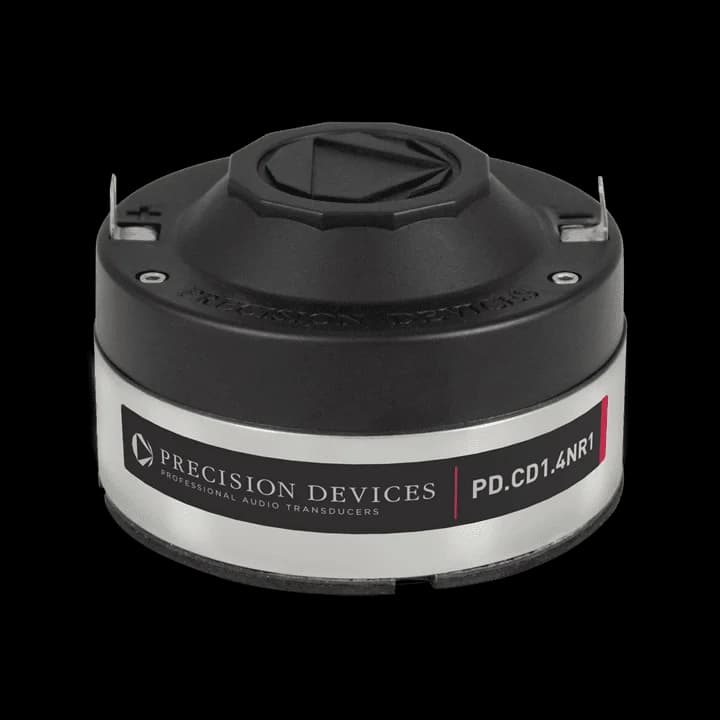

Precision Devices PD.CD1.4NR1 8Ω
8 Ω · 900–18500 Hz
No current price
- SPL
- 109dB
- Pe
- 90W
- Xover
- 1600Hz
- Throat
- 36mm
- VC
- 64mm
Precision Devices PD.CD1.4NR1 is a 1.5-inch 8 ohm compression driver rated at 90 W RMS. The source-backed specifications include sensitivity 109 dB, range from 900 Hz, to 18500 Hz, throat 35.6 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 64mm
- Flux density
- 1.80T
Power and response
- Sensitivity
- 109dB
- Power
- 90W
- Impedance
- 8Ω
- Min. impedance
- 6.4Ω
- Range
- 900–18500Hz
- Crossover
- 1600Hz
- Throat
- 36mm
Size and mounting
- Diameter
- 96mm
- Bolt circle
- 85mm
- Depth
- 60mm
- Weight
- 1.4kg
Everything else Precision Devices lists
HF · Primary · 1.4″
- SPL
- 109dB
- Power
- 90W
- Impedance
- 8Ω
- Flux density
- 1.80T
- Sensitivity
- 109dB
- Low limit
- 900Hz
- High limit
- 18500Hz
- Throat
- 36mm
- Manufacturer sensitivity
- 109dB
- Min. impedance
- 6.4Ω
- Voice coil
- 64mm
- Crossover
- 1600Hz
- Weight
- 1.4kg
- Diameter
- 96mm
- Depth
- 60mm
- Bolt circle
- 85mm
No current price found. Pricing may appear after the next vendor refresh.
