LF DriverSTW series
Peerless

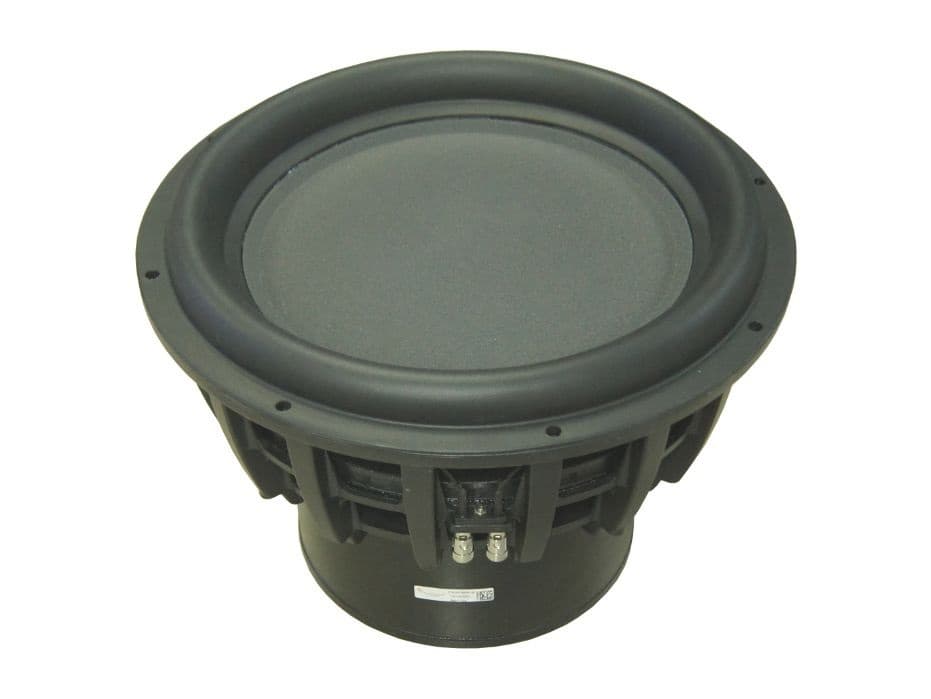

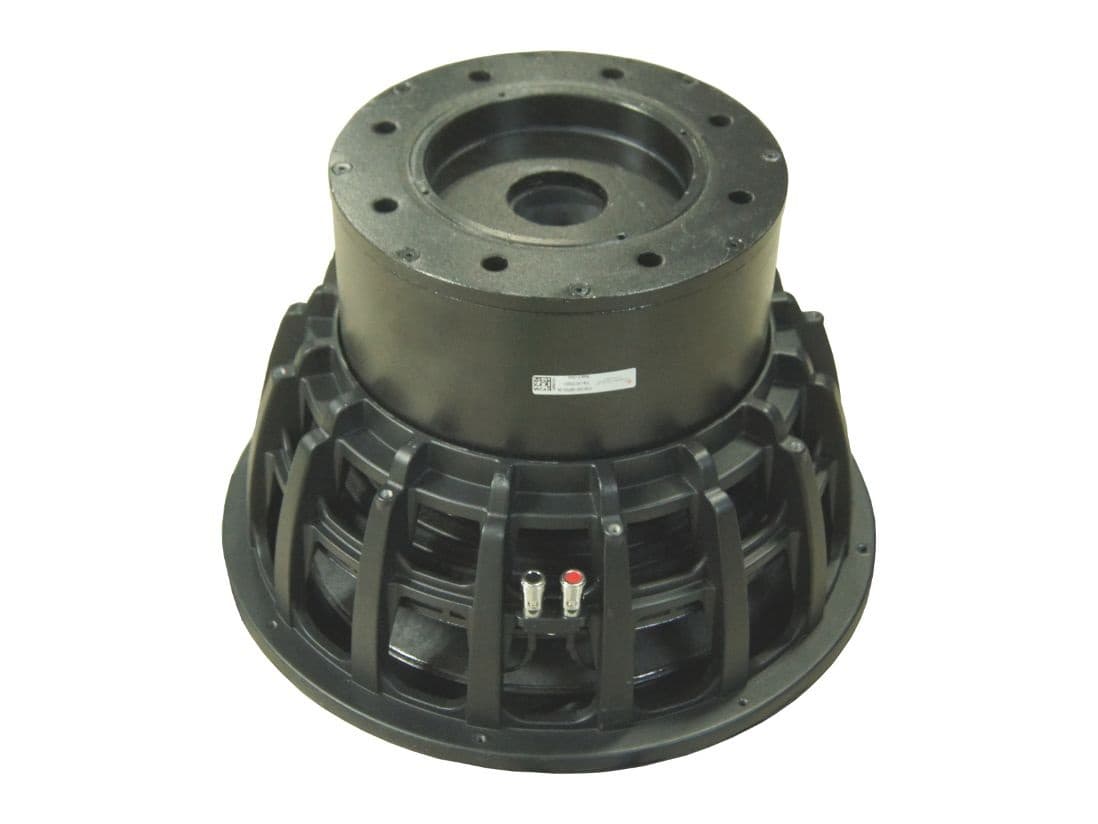

Peerless STW-350F188PR01-04
Peerless STW-350F188PR01-04 is a 15" 12 ohm LF driver rated at 2500W RMS. The validated T/S data includes Fs 21Hz, Qts 0.46, Vas 90.3L, Xmax 22.4mm, sensitivity 84.5dB, plus 1736cm³ Vd and 45 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
12Ω
RMS Power
2500W
Sensitivity
84.5dB
76.2dBmanufacturer; using T/S-derived value (8.3dB delta).
EBP
45
Sealed alignment
Vd
1736cm³
T/S Parameters
Valid
Fs21Hz
Qts0.46
Qes0.47
Qms14.6
Vas90.3L
Re12.0Ω
Le9.19mH
BL43.3Tm
Sd775cm²
Mms561g
Xmax22.4mm
SPL85dB
Power2500W
Impedance12Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight26.3kg
