Overview
LF DriverGBS series
Peerless

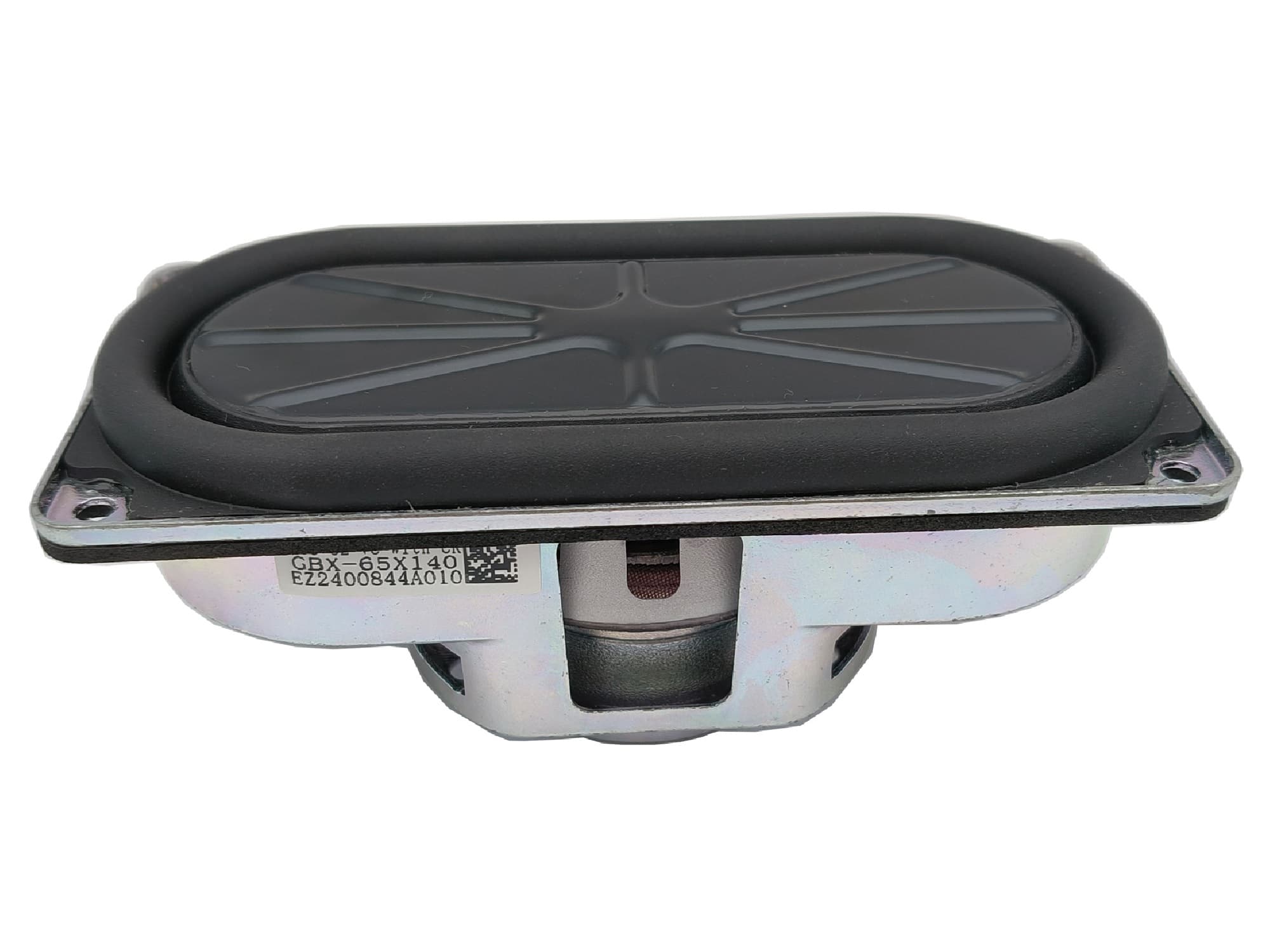

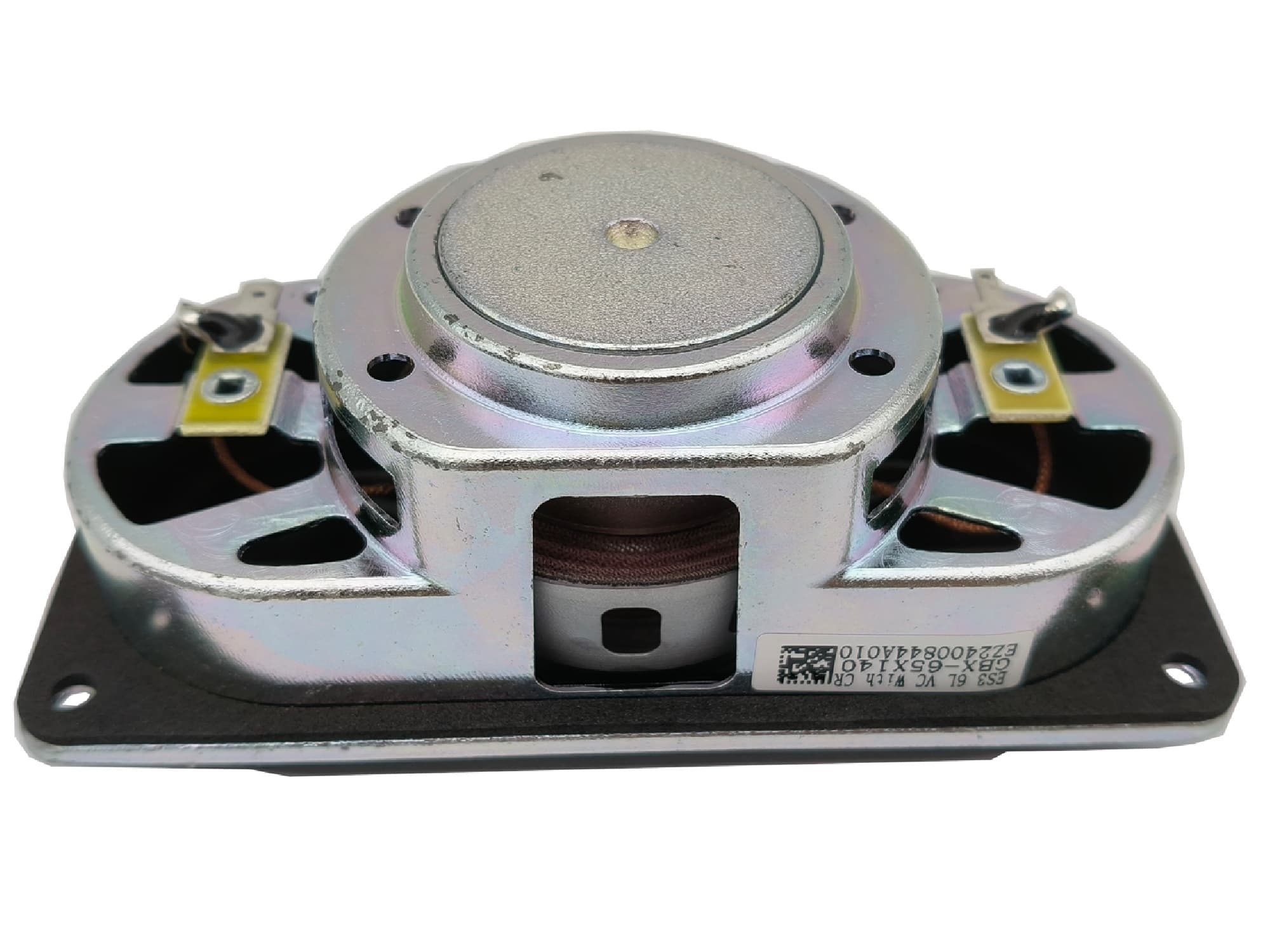

Peerless GBX-65X140N25AL00-04
Peerless GBX-65X140N25AL00-04 is a - 4 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 64Hz, Qts 0.78, Vas 1.1L, Xmax 8mm, sensitivity 77.2dB, plus 49cm³ Vd and 71 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
-
Impedance
4Ω
RMS Power
30W
Sensitivity
77.2dB
74.6dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
71
Either alignment
Vd
49cm³
T/S Parameters
Valid
Fs64Hz
Qts0.78
Qes0.90
Qms6.1
Vas1.1L
Re3.9Ω
Le0.69mH
BL7.1Tm
Sd62cm²
Mms29g
Xmax8.0mm
SPL77dB
Power30W
Impedance4Ω
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 4Ω
Source: inc VAT
£55.80
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.4kg
