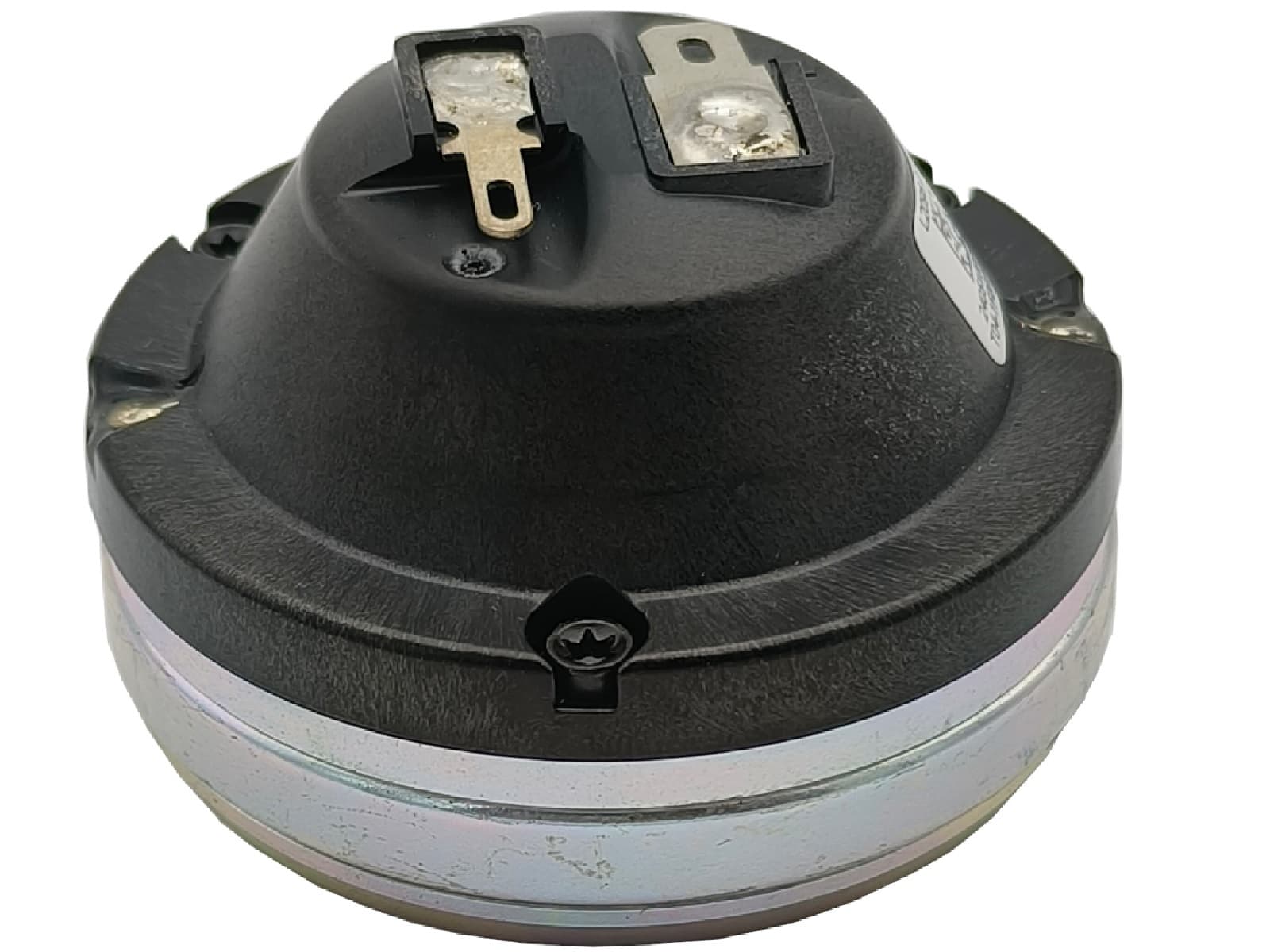

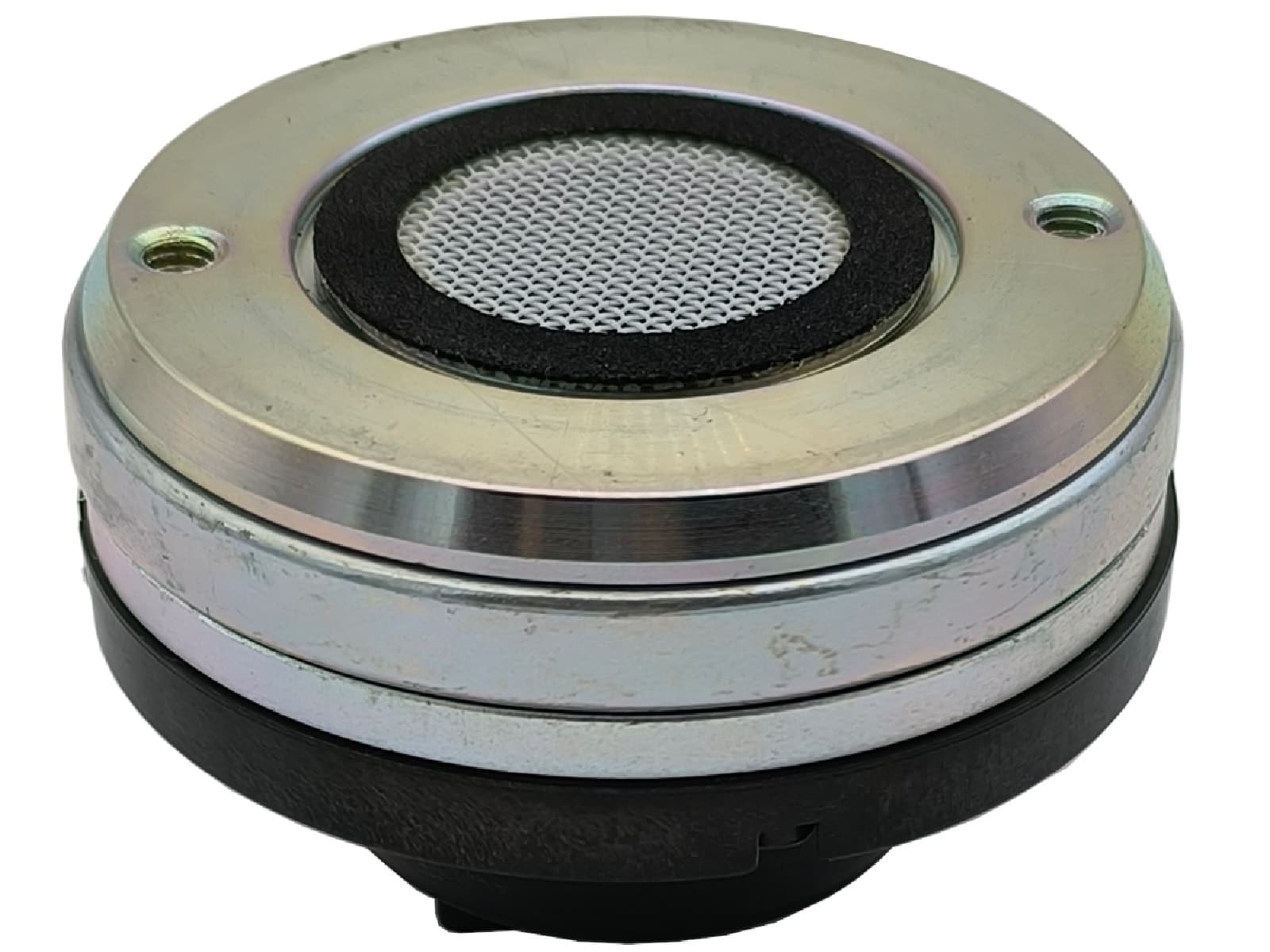

0.75-inch compression driver · DNM series · 36 mm voice coil · 40 W
Peerless DNM-2035R01-16 16Ω
16 Ω · 1200–18000 Hz
No current price
- SPL
- 87dB
- Pe
- 40W
- Xover
- –
- Throat
- –
- VC
- 36mm
Peerless DNM-2035R01-16 is a 0.75-inch 16 ohm compression driver rated at 40 W RMS. The source-backed specifications include sensitivity 106 dB, range from 1200 Hz, to 18000 Hz. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Fs
- 790Hz
- Qts
- 1.20
- Qes
- 1.46
- Qms
- 5.8
- Vas
- 0.01L
- Re
- 12Ω
- Le
- 0.07mH
Motor and cone
- BL
- 5.3T·m
- Sd
- 11cm²
- Mms
- 0.66g
- Xmax
- 1.9mm
- Voice coil
- 36mm
Power and response
- Sensitivity †
- 87.3dB
- Manufacturer sensitivity
- 106dB
- Power
- 40W
- Impedance
- 16Ω
- Min. impedance
- 13Ω
- Range
- 1200–18000Hz
Size and mounting
- Weight
- 0.21kg
Other published values
- Cms
- 0.06mm/N
Sensitivity shows 87.3 dB, calculated from the T/S values. Peerless publishes 106.0 dB, 18.7 dB apart.
† Calculated by bits from the published values
Everything else Peerless lists
HF · Primary · 0.751968503937008″
- BL
- 5.3T·m
- Fs
- 790Hz
- Le
- 0.07mH
- Re
- 12Ω
- Sd
- 11cm²
- Cms
- 0.06mm/N
- Mms
- 0.66g
- Qes
- 1.46
- Qms
- 5.8
- Qts
- 1.20
- SPL
- 87.3dB
- Vas
- 0.01L
- Xmax
- 1.9mm
- Power
- 40W
- Impedance
- 16Ω
- Sensitivity
- 106dB
- Low limit
- 1200Hz
- Calculated sensitivity †
- 87.3dB
- High limit
- 18000Hz
- Manufacturer sensitivity
- 106dB
- Min. impedance
- 13Ω
- Voice coil
- 36mm
- Weight
- 0.21kg
No current price found. Pricing may appear after the next vendor refresh.
