0.75-inch compression driver · DNM series · 36 mm voice coil · 40 W

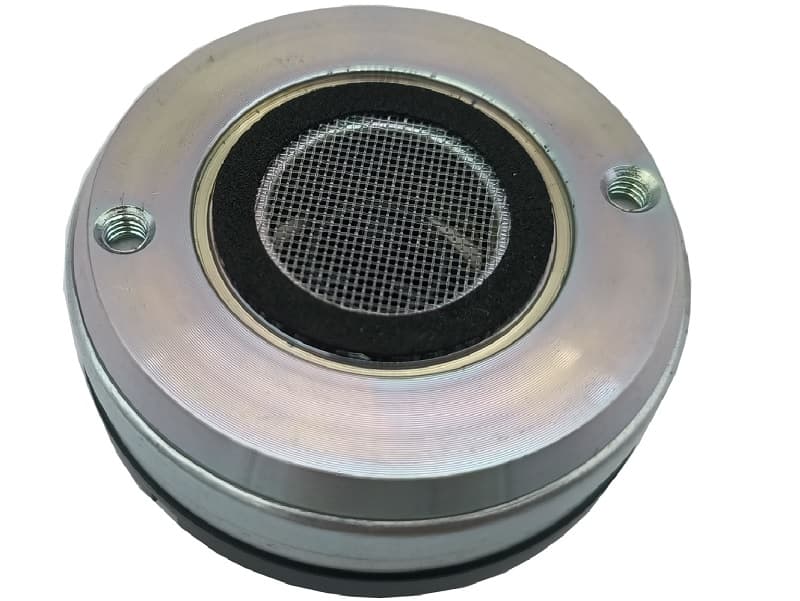

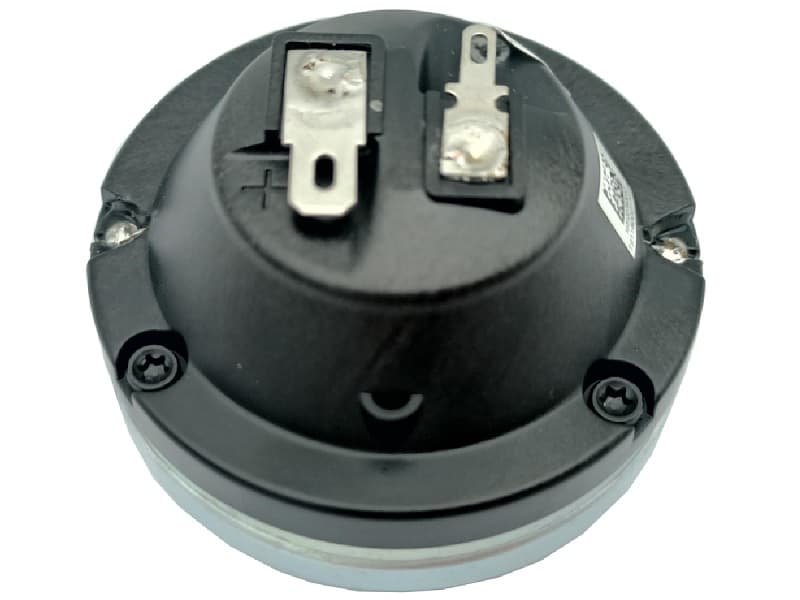

Peerless DNM-2035R01-08 8Ω
8 Ω · 1200–18000 Hz
£45.83
SteadyParts Express · 54 in stock · Ships from United States · All 1 offer
- SPL
- 88dB
- Pe
- 40W
- Xover
- –
- Throat
- –
- VC
- 36mm
Peerless DNM-2035R01-08 is a 0.75-inch 8 ohm compression driver rated at 40 W RMS. The source-backed specifications include sensitivity 104 dB, range from 1200 Hz, to 18000 Hz. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £45.83.
Source-backed specifications
Thiele/Small
- Fs
- 780Hz
- Qts
- 1.10
- Qes
- 1.29
- Qms
- 6.5
- Vas
- 0.011L
- Re
- 6.3Ω
- Le
- 0.06mH
Motor and cone
- BL
- 4.0T·m
- Sd
- 11cm²
- Mms
- 0.66g
- Xmax
- 1.8mm
- Voice coil
- 36mm
Power and response
- Sensitivity †
- 88.1dB
- Manufacturer sensitivity
- 104dB
- Power
- 40W
- Impedance
- 8Ω
- Min. impedance
- 7.2Ω
- Range
- 1200–18000Hz
Size and mounting
- Weight
- 0.21kg
Other published values
- Cms
- 0.06mm/N
Sensitivity shows 88.1 dB, calculated from the T/S values. Peerless publishes 104.0 dB, 15.9 dB apart.
† Calculated by bits from the published values
Everything else Peerless lists
HF · Primary · 0.751968503937008″
- BL
- 4.0T·m
- Fs
- 780Hz
- Le
- 0.06mH
- Re
- 6.3Ω
- Sd
- 11cm²
- Cms
- 0.06mm/N
- Mms
- 0.66g
- Qes
- 1.29
- Qms
- 6.5
- Qts
- 1.10
- SPL
- 88.1dB
- Vas
- 0.011L
- Xmax
- 1.8mm
- Power
- 40W
- Impedance
- 8Ω
- Sensitivity
- 104dB
- Low limit
- 1200Hz
- Calculated sensitivity †
- 88.1dB
- High limit
- 18000Hz
- Manufacturer sensitivity
- 104dB
- Min. impedance
- 7.2Ω
- Voice coil
- 36mm
- Weight
- 0.21kg
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Parts Express Import VAT and duty may apply | £45.83, the lowest price | 54 in stock | Visit shop at Parts Express |
Best price over time
Tracked since 22 Jul
