1-inch compression driver · MRD series · 26 mm voice coil · 30 W
Monacor MRD-80 8Ω
8 Ω
£17.55
SteadyLTT · Ships from Germany · All 1 offer
- SPL
- 107dB
- Pe
- 30W
- Xover
- 5000Hz
- Throat
- –
- VC
- 26mm
Monacor MRD-80 is a 1-inch 8 ohm compression driver rated at 30 W RMS. The source-backed specifications include sensitivity 107 dB. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £17.55.
Partial source evidence
Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.
Material fields not published: Frequency range (low), Frequency range (high)
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Thiele/Small
- Fs
- 2000Hz
Motor and cone
- Voice coil
- 26mm
Power and response
- Sensitivity
- 107dB
- Power
- 30W
- Impedance
- 8Ω
- Crossover
- 5000Hz

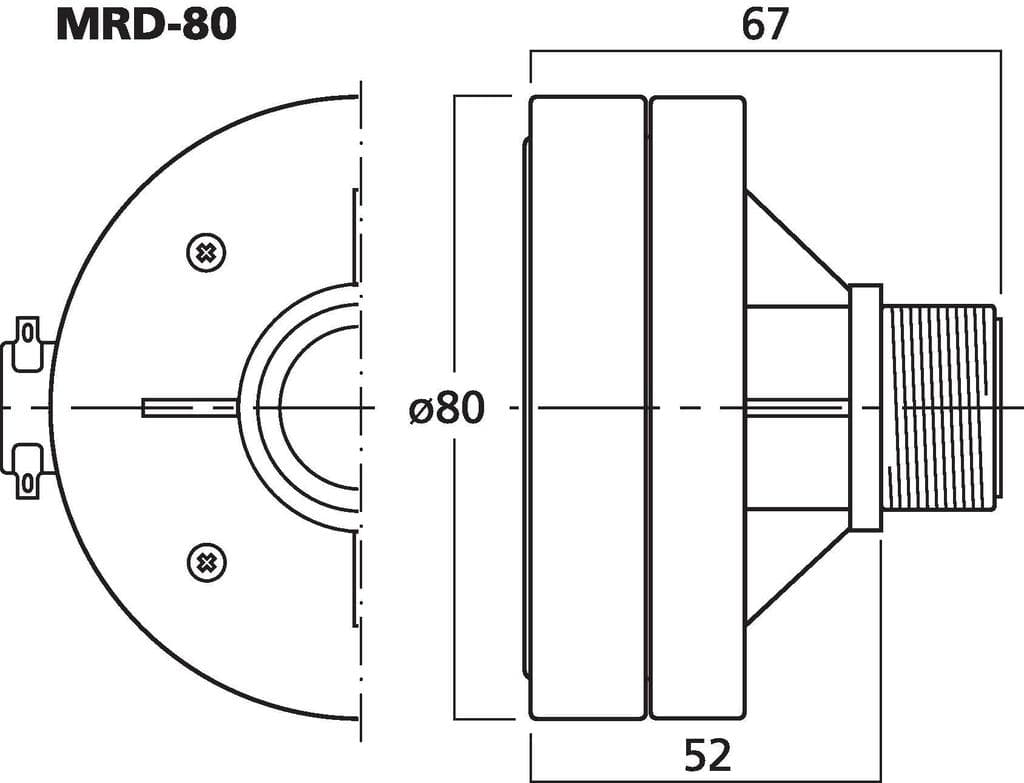

Size and mounting
- Diameter
- 80mm
- Depth
- 67mm
- Weight
- 0.7kg
Other published values
- Power Peak
- 60
Everything else Monacor lists
HF · Primary · 1″
- Fs
- 2000Hz
- SPL
- 107dB
- Power
- 30W
- Impedance
- 8Ω
- Power Peak
- 60
- Sensitivity
- 107dB
- Manufacturer sensitivity
- 107dB
- Voice coil
- 26mm
- Crossover
- 5000Hz
- Weight
- 0.7kg
- Diameter
- 80mm
- Depth
- 67mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
LTT Import VAT and duty may apply | £17.55, the lowest price | Stock not listed | Visit shop at LTT |
Best price over time
Tracked since 28 Sep
