1.5-inch compression driver · CDX series · 75 mm voice coil · 100 W
Monacor CDX14-3030/8 8Ω
8 Ω · 500–20000 Hz
£179.69
SteadyLTT · Ships from Germany · All 1 offer
- SPL
- 107dB
- Pe
- 100W
- Xover
- 1000Hz
- Throat
- –
- VC
- 75mm

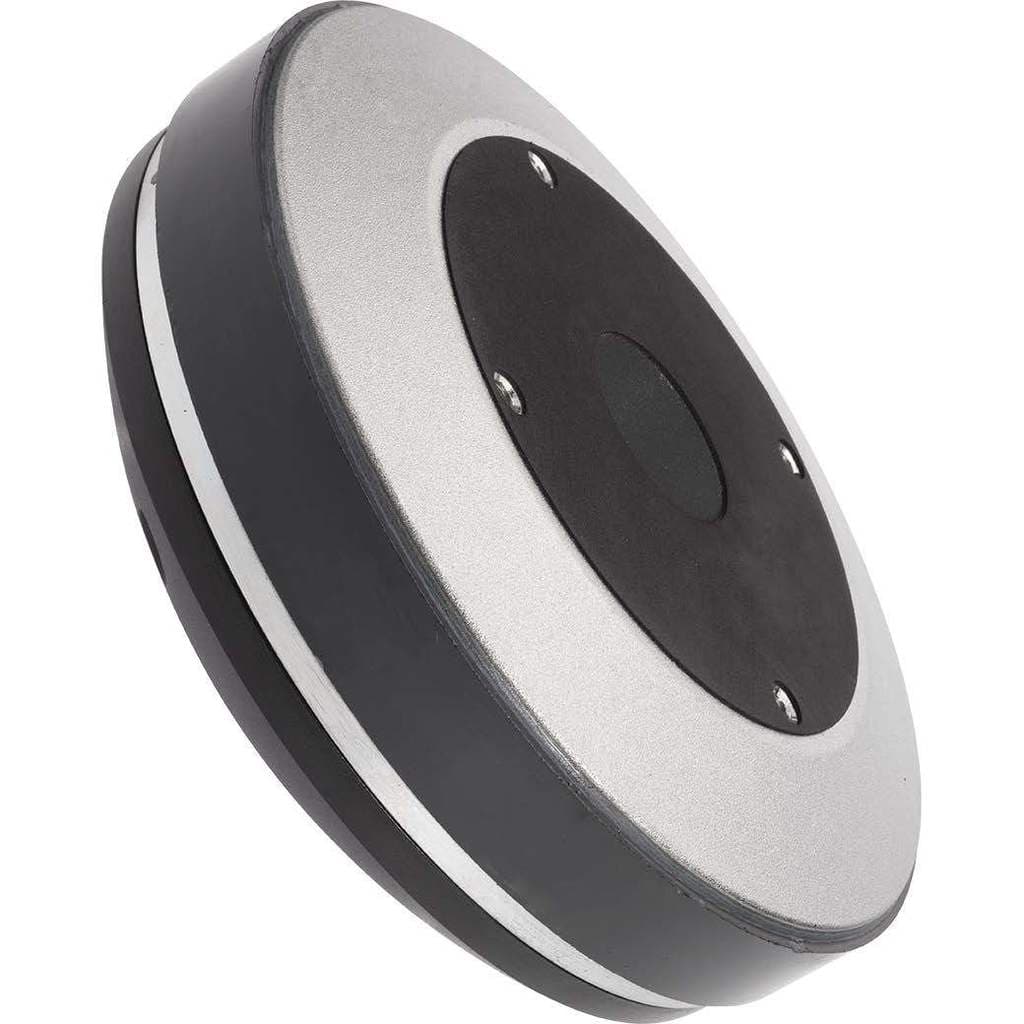

Monacor CDX14-3030/8 is a 1.5-inch 8 ohm compression driver rated at 100 W RMS. The source-backed specifications include sensitivity 106.5 dB, range from 500 Hz, to 20000 Hz. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £179.69.
Source-backed specifications
Motor and cone
- Voice coil
- 75mm
Power and response
- Sensitivity
- 106.5dB
- Power
- 100W
- Impedance
- 8Ω
- Range
- 500–20000Hz
- Crossover
- 1000Hz
Size and mounting
- Diameter
- 180mm
- Depth
- 68mm
- Weight
- 5.5kg
Other published values
- Power Peak
- 200
Everything else Monacor lists
HF · Primary · 1.4″
- SPL
- 106.5dB
- Power
- 100W
- Impedance
- 8Ω
- Power Peak
- 200
- Sensitivity
- 106.5dB
- Low limit
- 500Hz
- High limit
- 20000Hz
- Manufacturer sensitivity
- 106.5dB
- Voice coil
- 75mm
- Crossover
- 1000Hz
- Weight
- 5.5kg
- Diameter
- 180mm
- Depth
- 68mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
LTT Import VAT and duty may apply | £179.69, the lowest price | Stock not listed | Visit shop at LTT |
Best price over time
Tracked since 28 Sep
