Monacor CDX1-1747/8 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Monacor
  4. /CDX1-1747/8

Media

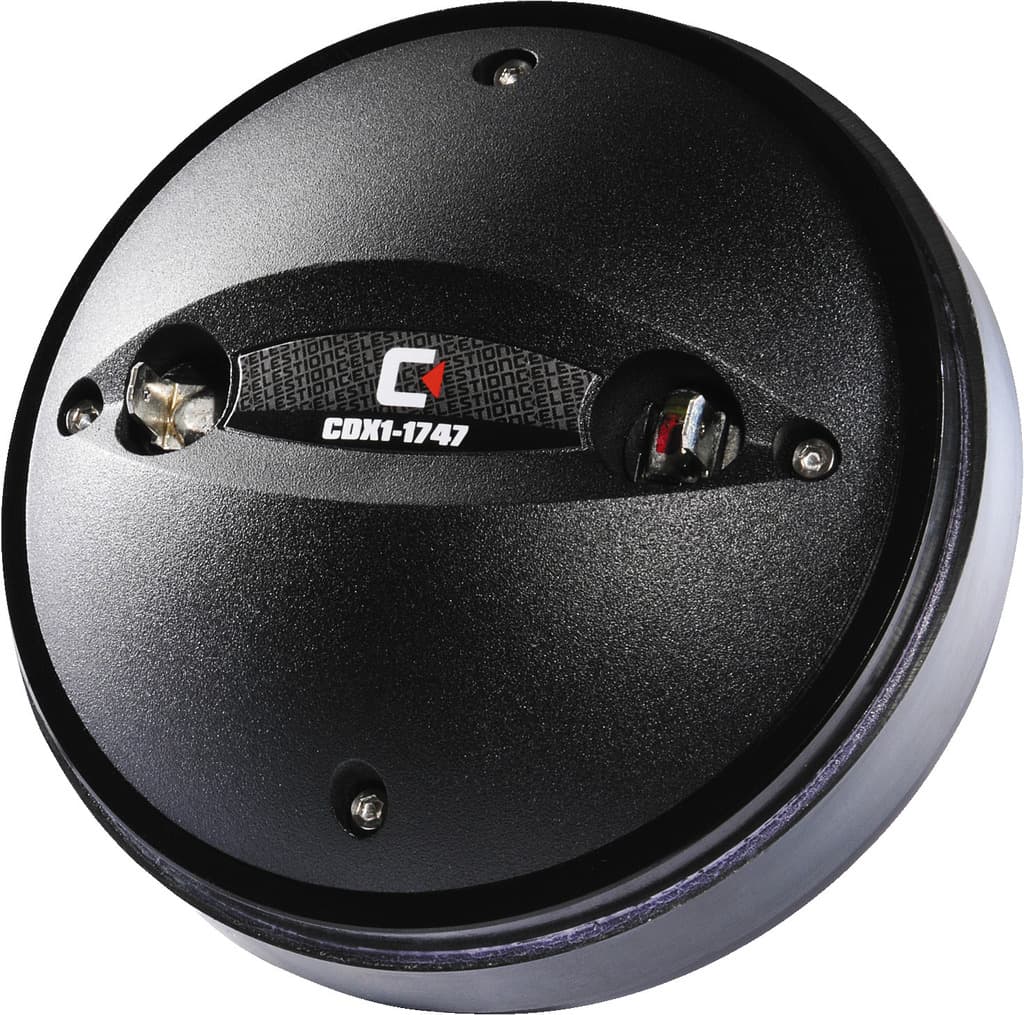

Monacor CDX1-1747/8 1 inch 8 ohm loudspeaker driver view 1

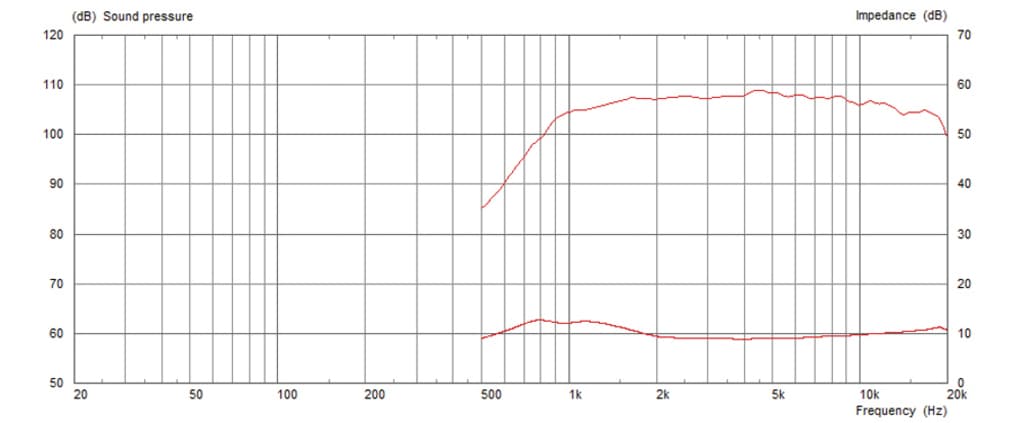

Monacor CDX1-1747/8 1 inch 8 ohm loudspeaker driver view 2

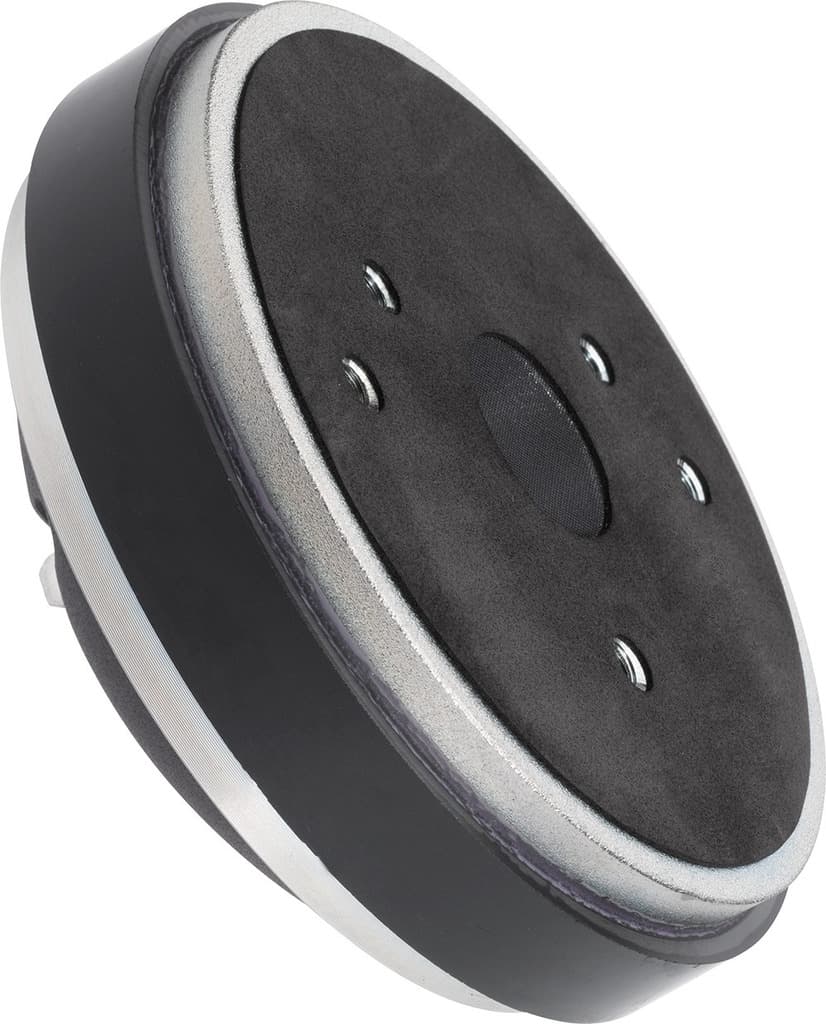

Monacor CDX1-1747/8 1 inch 8 ohm loudspeaker driver view 3

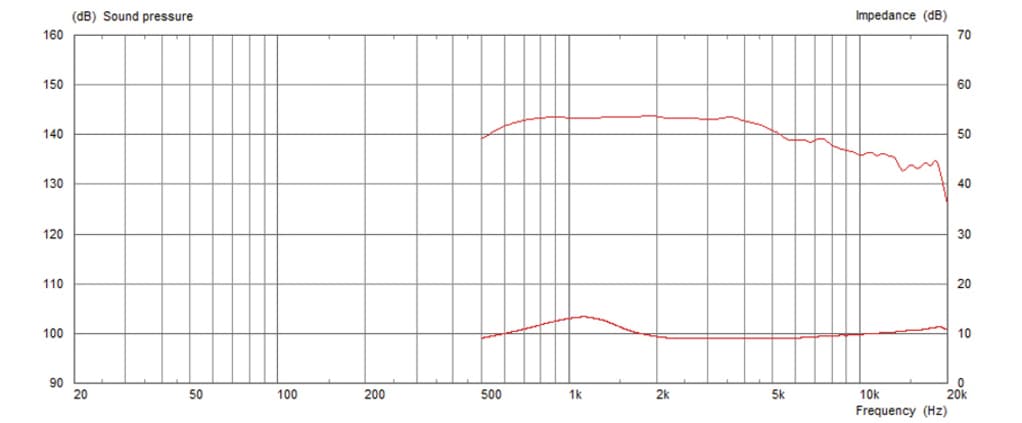

Monacor CDX1-1747/8 1 inch 8 ohm loudspeaker driver view 4
Auto-advancing

Overview

Compression DriverCDX series
Monacor

Monacor CDX1-1747/8

Monacor CDX1-1747/8 is a 1" 8 ohm compression driver rated at 60W RMS. The source-backed specifications include sensitivity 110dB, range from 1000Hz, to 20000Hz. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
8Ω
RMS Power
60W
Sensitivity
110.0dB
Datasheet

Technical Specifications

Canonical
SPL110dB
Power60W
Impedance8Ω
F Low1000Hz
F High20000Hz
Voice Coil44mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight2.0kg
Diameter120.0mm
Overall Depth53.0mm
