Monacor CDX1-1720/8 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Monacor
  4. /CDX1-1720/8

Media

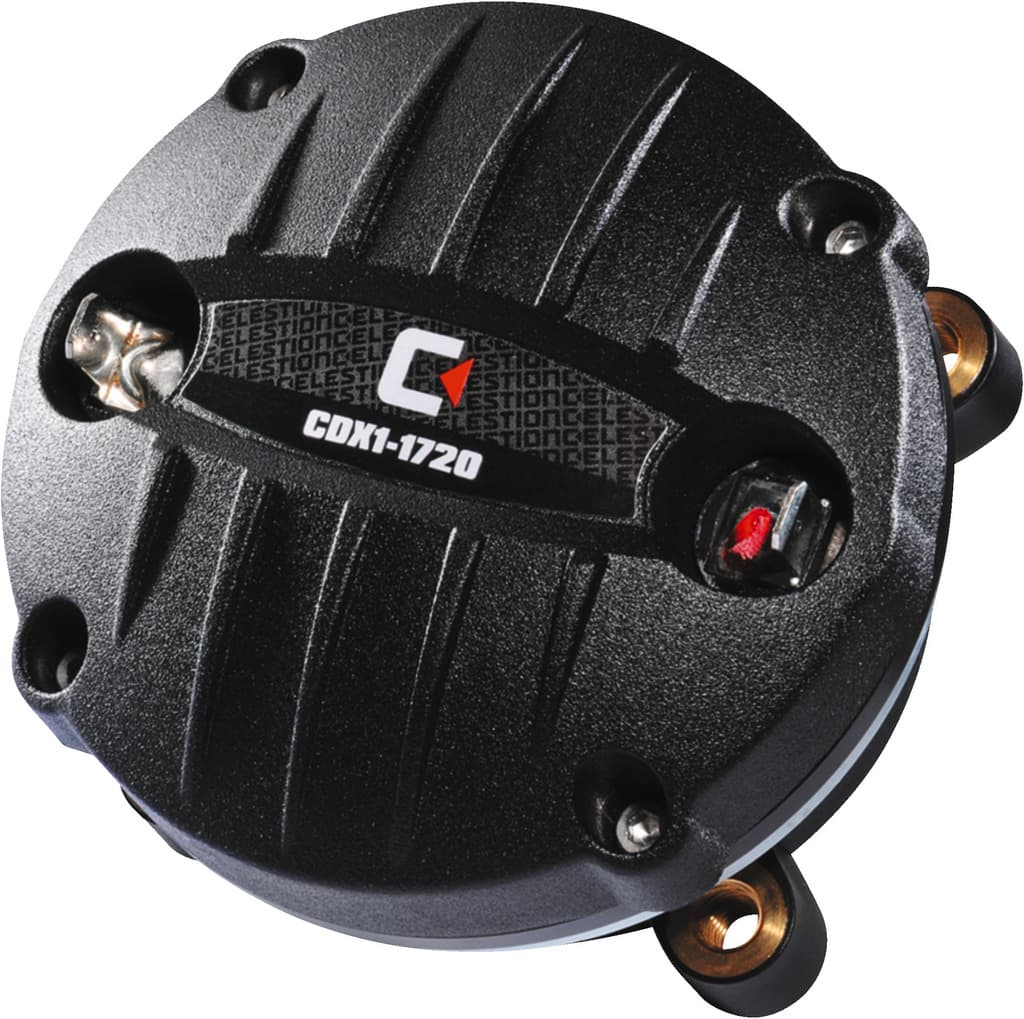

Monacor CDX1-1720/8 1 inch 8 ohm loudspeaker driver view 1

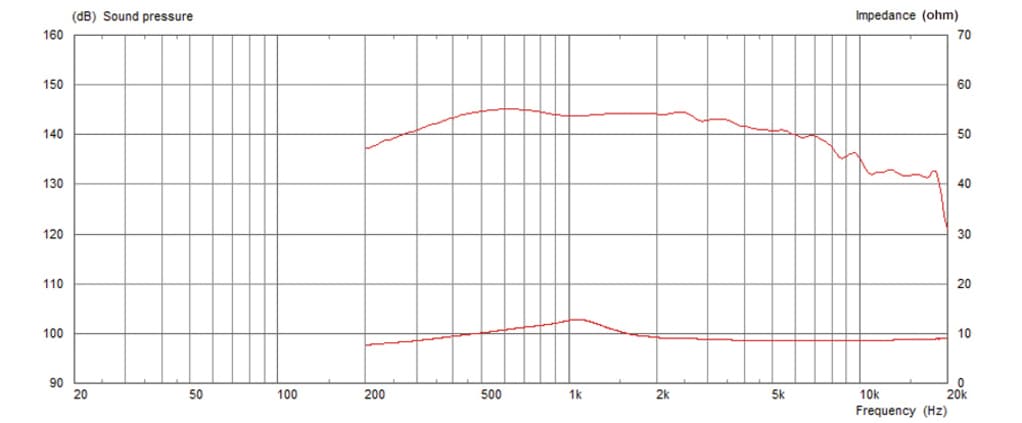

Monacor CDX1-1720/8 1 inch 8 ohm loudspeaker driver view 2

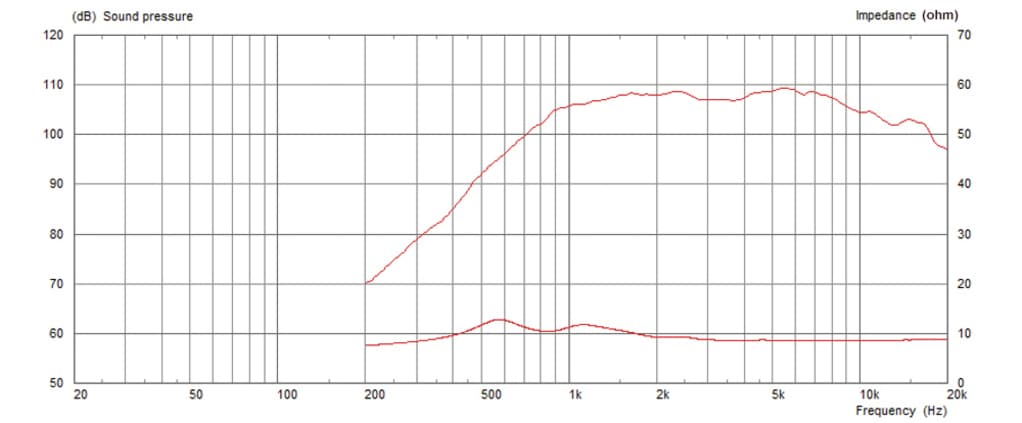

Monacor CDX1-1720/8 1 inch 8 ohm loudspeaker driver view 3

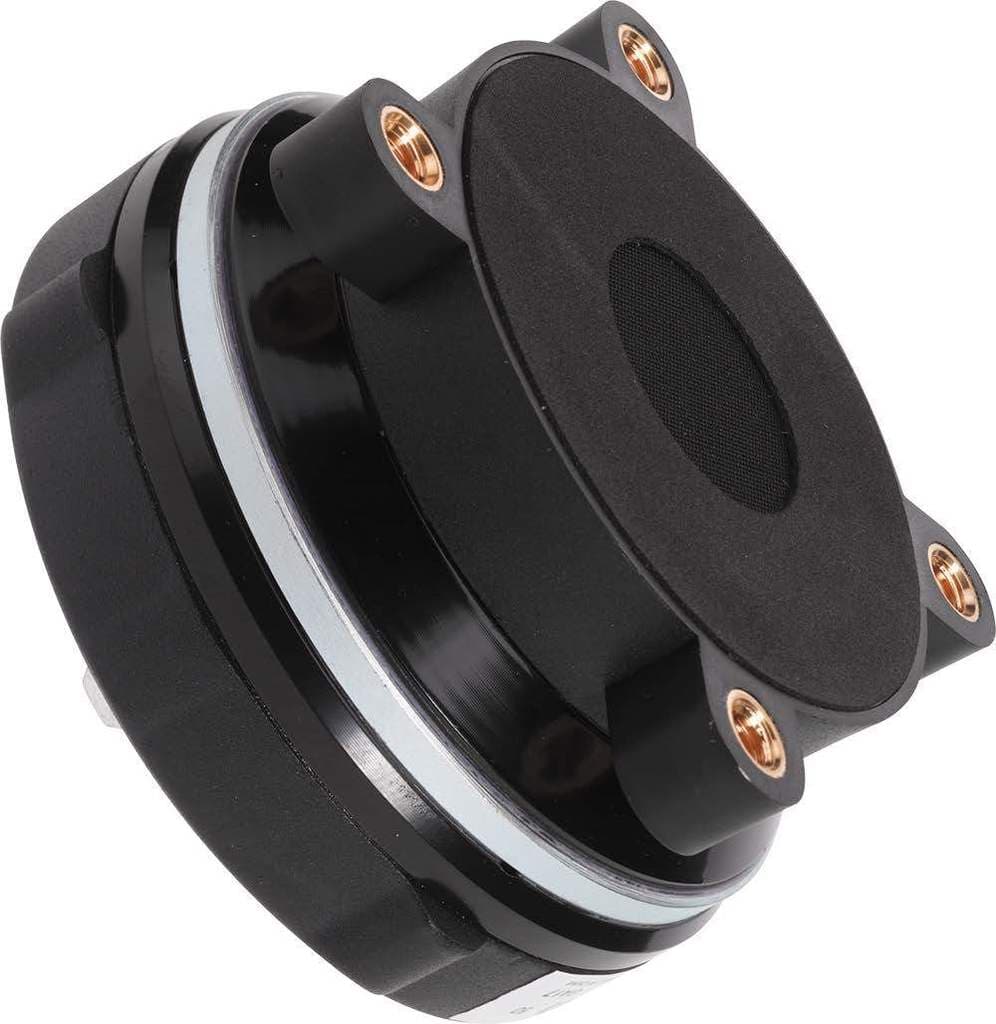

Monacor CDX1-1720/8 1 inch 8 ohm loudspeaker driver view 4
Auto-advancing

Overview

Compression DriverCDX series
Monacor

Monacor CDX1-1720/8

Monacor CDX1-1720/8 is a 1" 8 ohm compression driver rated at 50W RMS. The source-backed specifications include sensitivity 107dB, range from 800Hz, to 20000Hz. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
8Ω
RMS Power
50W
Sensitivity
107.0dB
Datasheet

Technical Specifications

Canonical
SPL107dB
Power50W
Impedance8Ω
F Low800Hz
F High20000Hz
Voice Coil44mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight0.6kg
Diameter88.5mm
Overall Depth55.0mm
