1-inch compression driver · CDX series · 35 mm voice coil · 20 W
Monacor CDX1-1445/16 16Ω
16 Ω · 1500–20000 Hz
No price for delivery to the UK
- SPL
- 106dB
- Pe
- 20W
- Xover
- 2200Hz
- Throat
- –
- VC
- 35mm

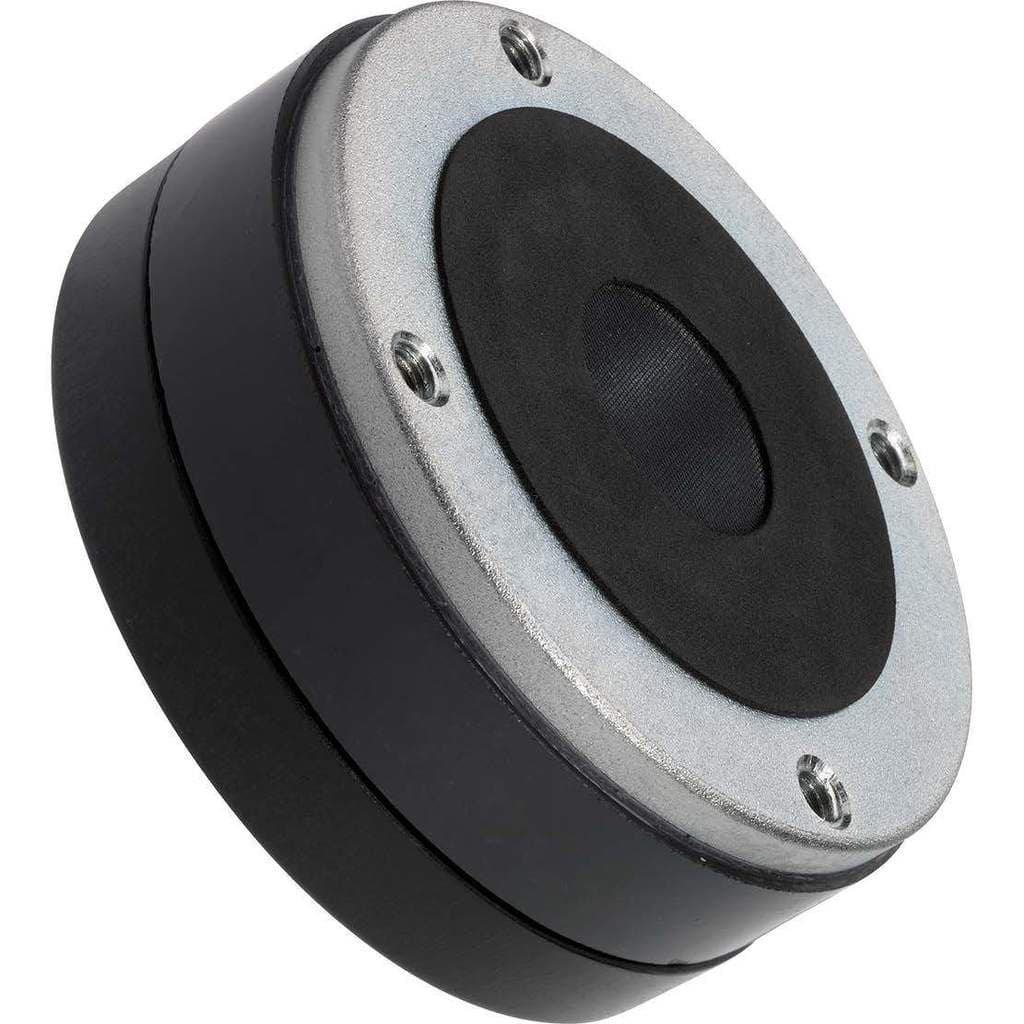

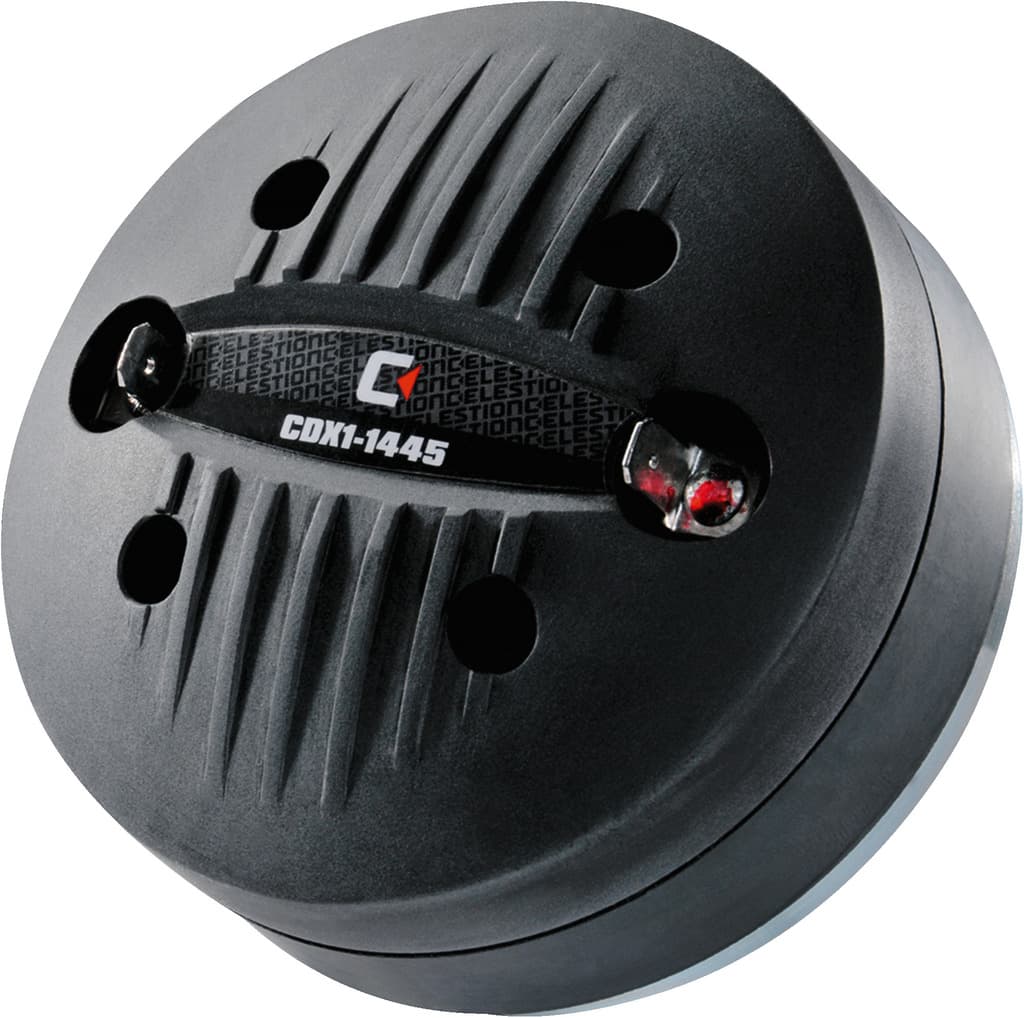

Monacor CDX1-1445/16 is a 1-inch 16 ohm compression driver rated at 20 W RMS. The source-backed specifications include sensitivity 106 dB, range from 1500 Hz, to 20000 Hz. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 35mm
Power and response
- Sensitivity
- 106dB
- Power
- 20W
- Impedance
- 16Ω
- Range
- 1500–20000Hz
- Crossover
- 2200Hz
Size and mounting
- Diameter
- 90mm
- Depth
- 52mm
- Weight
- 1.0kg
Other published values
- Power Peak
- 40
Everything else Monacor lists
HF · Primary · 1″
- SPL
- 106dB
- Power
- 20W
- Impedance
- 16Ω
- Power Peak
- 40
- Sensitivity
- 106dB
- Low limit
- 1500Hz
- High limit
- 20000Hz
- Manufacturer sensitivity
- 106dB
- Voice coil
- 35mm
- Crossover
- 2200Hz
- Weight
- 1.0kg
- Diameter
- 90mm
- Depth
- 52mm
