1-inch compression driver · CDX series · 25 mm voice coil · 12 W
Monacor CDX1-1070/8 8Ω
8 Ω · 1500–20000 Hz
£42.23
SteadyLTT · Ships from Germany · All 1 offer
- SPL
- 106dB
- Pe
- 12W
- Xover
- 2200Hz
- Throat
- –
- VC
- 25mm

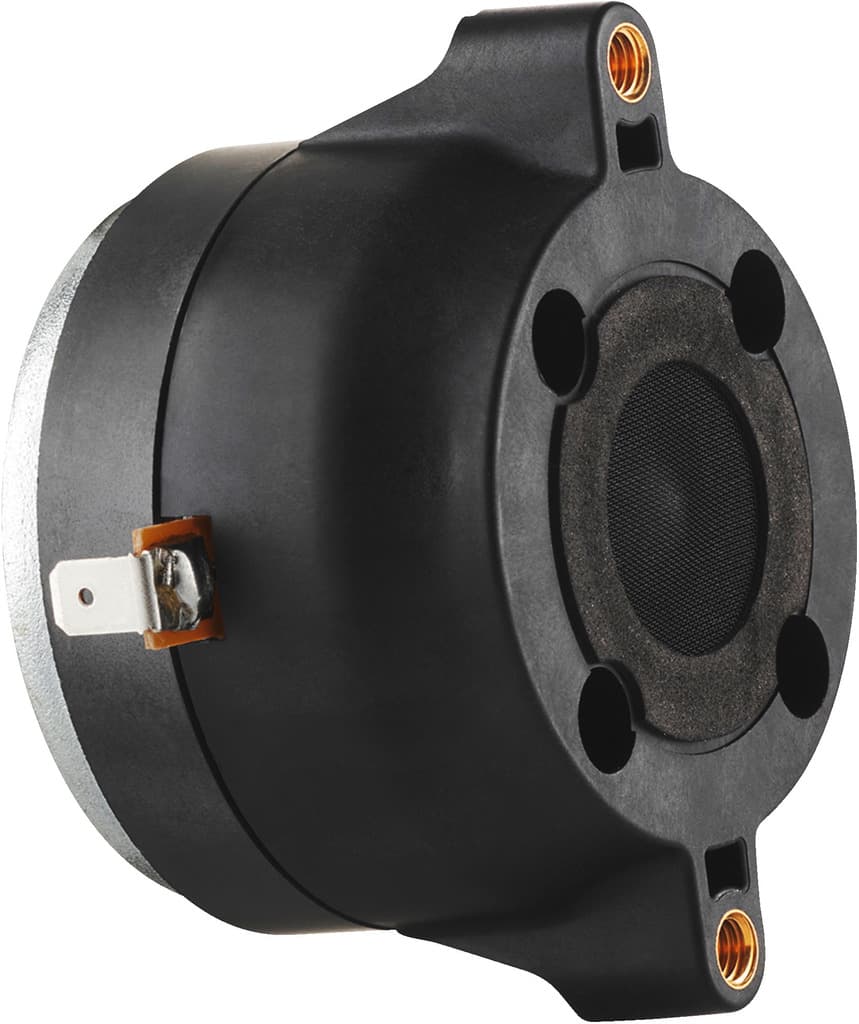

Monacor CDX1-1070/8 is a 1-inch 8 ohm compression driver rated at 12 W RMS. The source-backed specifications include sensitivity 106 dB, range from 1500 Hz, to 20000 Hz. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £42.23.
Source-backed specifications
Motor and cone
- Voice coil
- 25mm
Power and response
- Sensitivity
- 106dB
- Power
- 12W
- Impedance
- 8Ω
- Range
- 1500–20000Hz
- Crossover
- 2200Hz
Size and mounting
- Diameter
- 70mm
- Depth
- 50mm
- Weight
- 0.5kg
Other published values
- Power Peak
- 24
Everything else Monacor lists
HF · Primary · 1″
- SPL
- 106dB
- Power
- 12W
- Impedance
- 8Ω
- Power Peak
- 24
- Sensitivity
- 106dB
- Low limit
- 1500Hz
- High limit
- 20000Hz
- Manufacturer sensitivity
- 106dB
- Voice coil
- 25mm
- Crossover
- 2200Hz
- Weight
- 0.5kg
- Diameter
- 70mm
- Depth
- 50mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
LTT Import VAT and duty may apply | £42.23, the lowest price | Stock not listed | Visit shop at LTT |
Best price over time
Tracked since 28 Sep
