LF DriverPluvia series
Markaudio

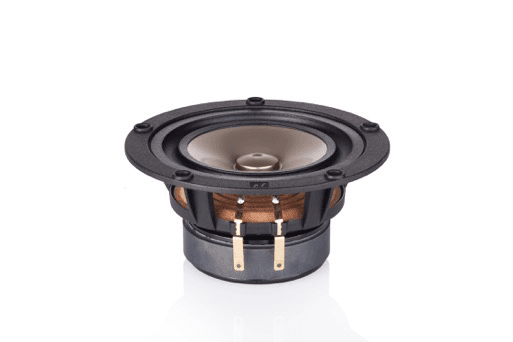

Markaudio PLUVIA 7
Markaudio PLUVIA 7 is a - 7.2 ohm LF driver rated at 22W RMS. The validated T/S data includes Fs 68Hz, Qts 0.54, Vas 5.5L, Xmax 4mm, sensitivity 86dB, plus 20cm³ Vd and 98 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
-
Impedance
7.2Ω
RMS Power
22W
Sensitivity
86.0dB
EBP
98
Either alignment
Vd
20cm³
T/S Parameters
Valid
Fs68Hz
Qts0.54
Qes0.69
Qms2.4
Vas5.5L
Re7.2Ω
Le0.04mH
BL4.0Tm
Sd50cm²
Mms4g
Xmax4.0mm
SPL86dB
Power22W
Impedance7Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.0kg
