Overview
LF DriverAlpair series
Markaudio

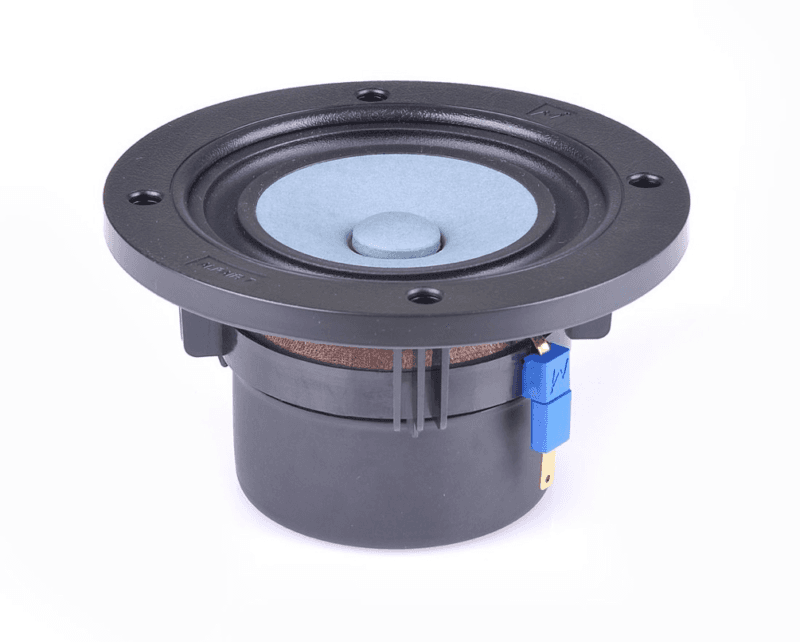

Markaudio Alpair 7p
Markaudio Alpair 7p is a - 5.4 ohm LF driver. The validated T/S data includes Fs 73Hz, Qts 0.50, Vas 5.6L, Xmax 4mm, sensitivity 87.7dB, plus 20cm³ Vd and 121 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
-
Impedance
5.4Ω
Sensitivity
87.7dB
85.8dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
121
Vented alignment
Vd
20cm³
T/S Parameters
Valid
Fs73Hz
Qts0.50
Qes0.60
Qms2.8
Vas5.6L
Re5.4Ω
Le0.02mH
BL3.5Tm
Sd50cm²
Mms3g
Xmax4.0mm
SPL88dB
Impedance5Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.0kg
