Markaudio Alpair 7 5.4Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverAlpair series
Markaudio

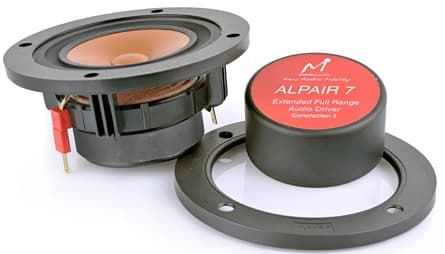

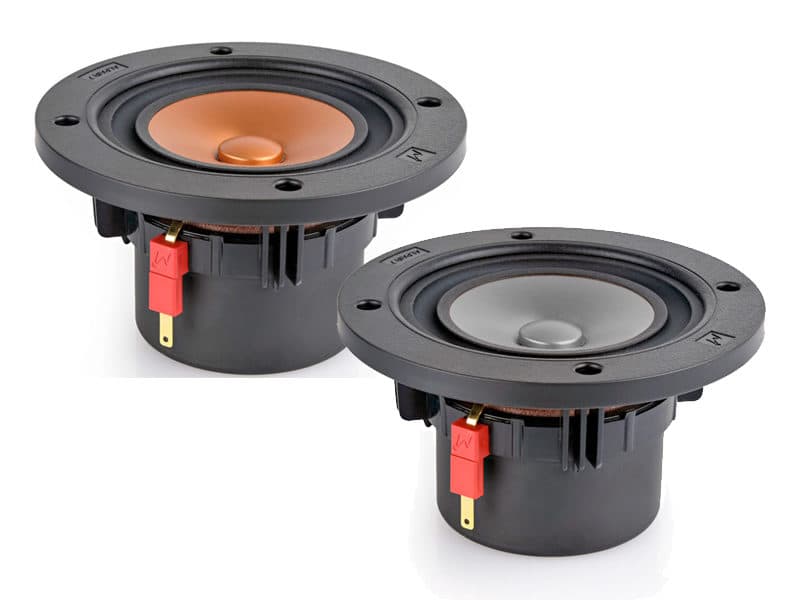

Markaudio Alpair 7
Markaudio Alpair 7 is a - 5.4 ohm LF driver. The validated T/S data includes Fs 71Hz, Qts 0.54, Vas 4.6L, Xmax 4.2mm, sensitivity 86dB, plus 21cm³ Vd and 109 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
-
Impedance
5.4Ω
Sensitivity
86.0dB
EBP
109
Vented alignment
Vd
21cm³
T/S Parameters
Valid
Fs71Hz
Qts0.54
Qes0.65
Qms3.1
Vas4.6L
Re5.4Ω
Le0.02mH
BL3.8Tm
Sd50cm²
Mms4g
Xmax4.2mm
SPL86dB
Impedance5Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

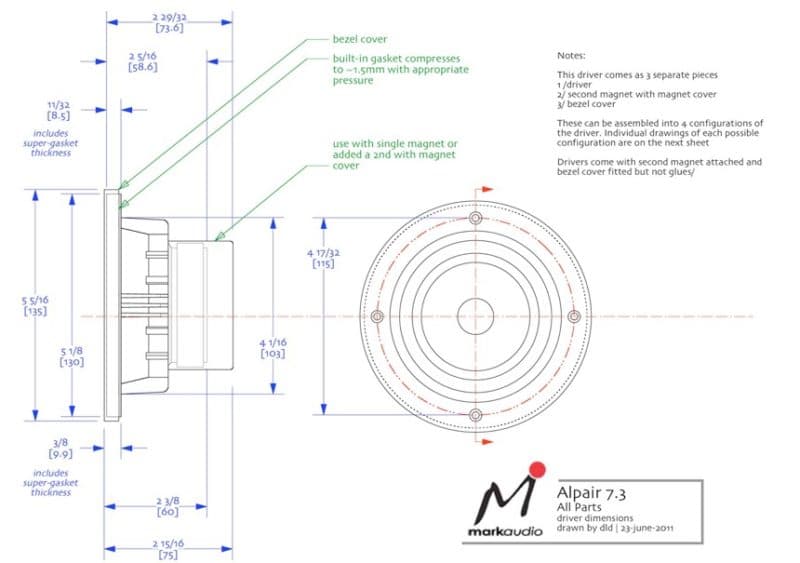

Dimensions & Physical
Weight2.0kg
