Overview
LF DriverAlpair series
Markaudio

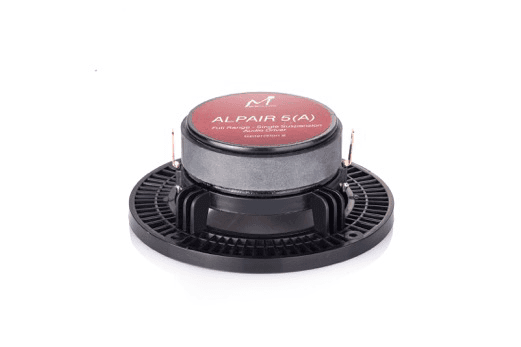

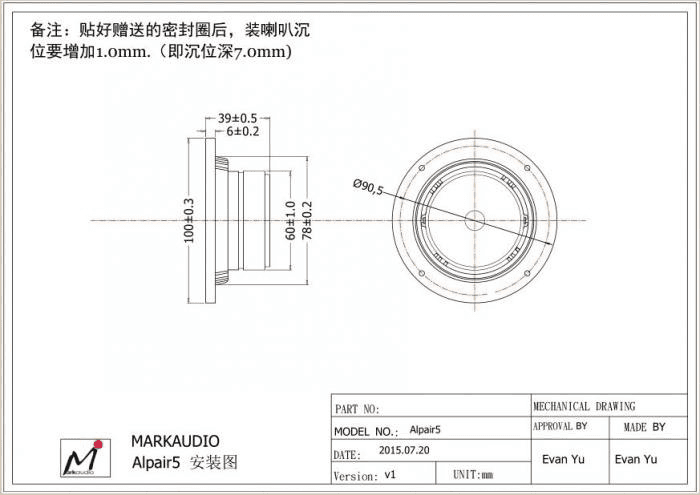

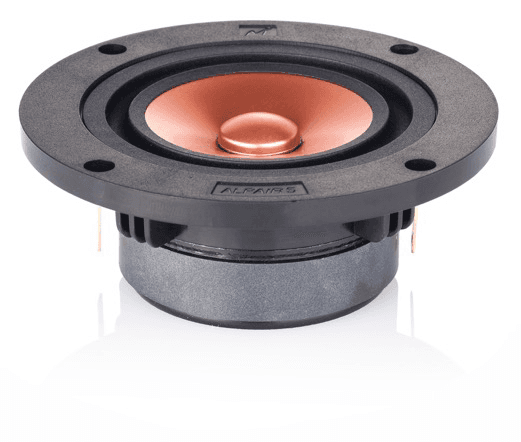

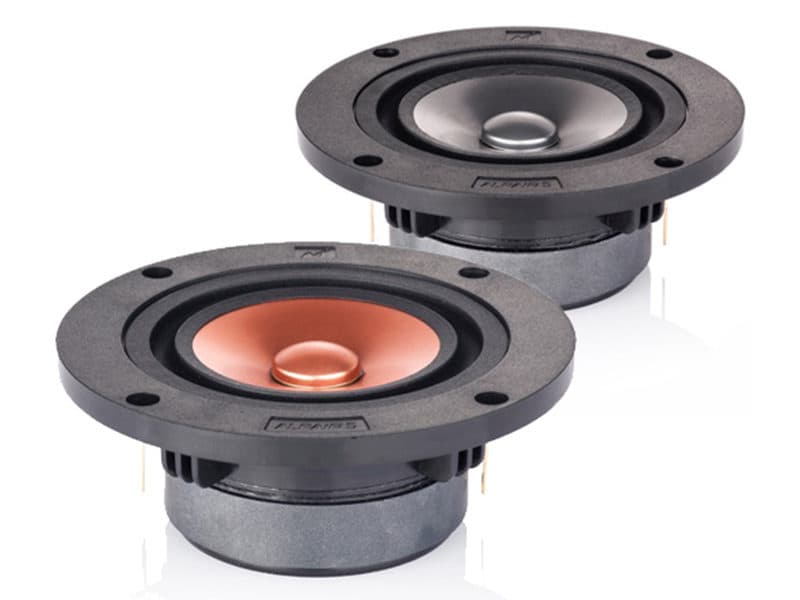

Markaudio Alpair 5
Markaudio Alpair 5 is a - 3.6 ohm LF driver rated at 22W RMS. The validated T/S data includes Fs 101Hz, Qts 0.54, Vas 5.5L, Xmax 4mm, sensitivity 91.2dB, plus 20cm³ Vd and 146 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
-
Impedance
3.6Ω
RMS Power
22W
Sensitivity
91.2dB
85.8dBmanufacturer; using T/S-derived value (5.4dB delta).
EBP
146
Vented alignment
Vd
20cm³
T/S Parameters
Valid
Fs101Hz
Qts0.54
Qes0.69
Qms2.4
Vas5.5L
Re7.2Ω
Le0.04mH
BL4.0Tm
Sd50cm²
Mms4g
Xmax4.0mm
SPL91dB
Power22W
Impedance4Ω
