1-inch compression driver · DN10 series · 51 mm voice coil · 70 W

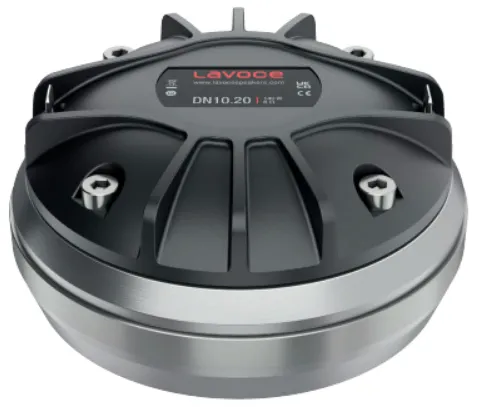

Lavoce DN10.20 8Ω
8 Ω · 1000–18000 Hz
No current price
- SPL
- 108dB
- Pe
- 70W
- Xover
- 1200Hz
- Throat
- 25mm
- VC
- 51mm

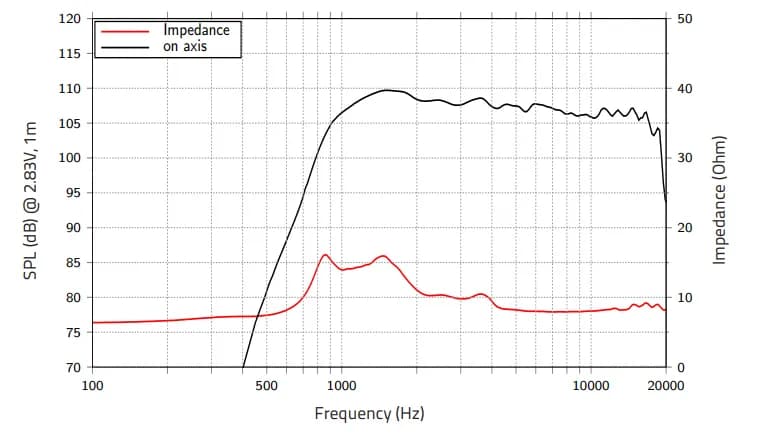

Published graphs
Lavoce DN10.20 is a 1-inch 8 ohm compression driver rated at 70 W RMS. The source-backed specifications include sensitivity 108 dB, range from 1000 Hz, to 18000 Hz, throat 25.4 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Le
- 0.10mH
Motor and cone
- Voice coil
- 51mm
- Flux density
- 2T
Power and response
- Sensitivity
- 108dB
- Power
- 70W
- Impedance
- 8Ω
- Min. impedance
- 8Ω
- Range
- 1000–18000Hz
- Crossover
- 1200Hz
- Throat
- 25mm

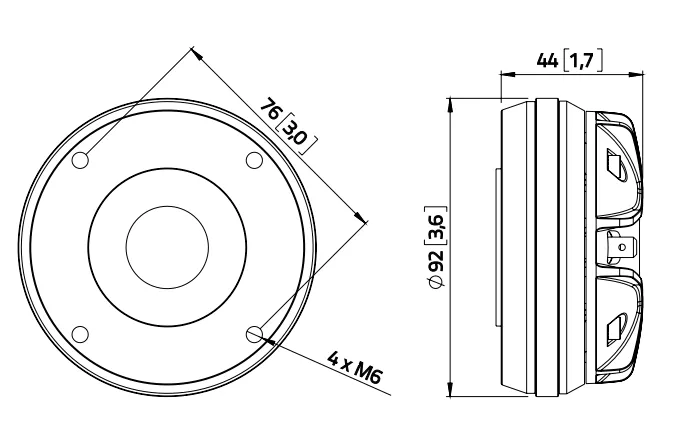

Size and mounting
- Weight
- 1.1kg
Other published values
- Power Program
- 140
Everything else Lavoce lists
HF · Primary · 1″
- Le
- 0.10mH
- SPL
- 108dB
- Power
- 70W
- Impedance
- 8Ω
- Flux density
- 2T
- Sensitivity
- 108dB
- Low limit
- 1000Hz
- Power Program
- 140
- High limit
- 18000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 108dB
- Min. impedance
- 8Ω
- Voice coil
- 51mm
- Crossover
- 1200Hz
- Weight
- 1.1kg
No current price found. Pricing may appear after the next vendor refresh.
