1-inch compression driver · DN10 series · 44 mm voice coil · 55 W

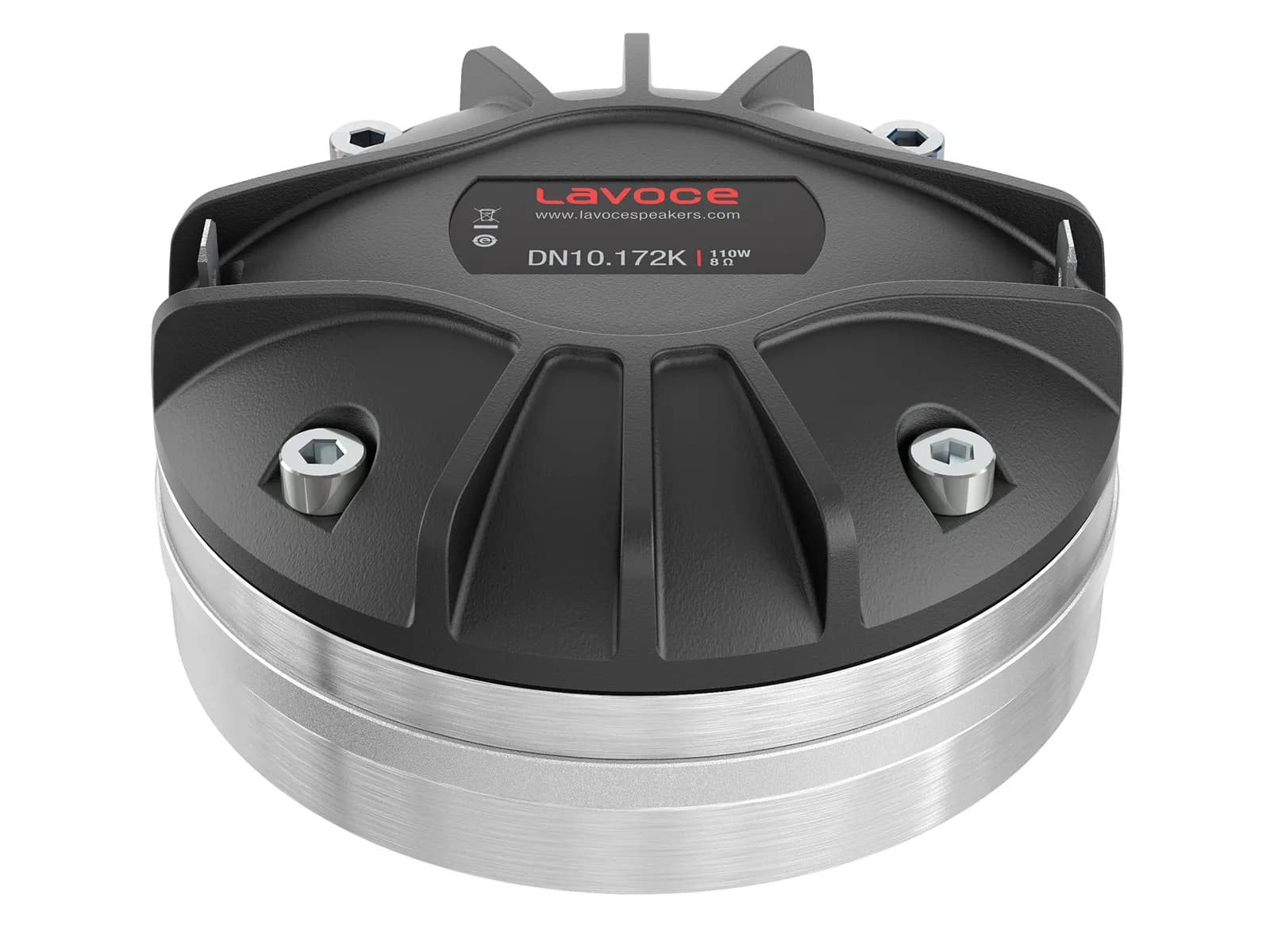

Lavoce DN10.172K 8Ω
8 Ω · 1200–20000 Hz
£68.33
SteadyBlue Aran · 9 in stock · All 1 offer
- SPL
- 110dB
- Pe
- 55W
- Xover
- 1500Hz
- Throat
- 25mm
- VC
- 44mm
Lavoce DN10.172K is a 1-inch 8 ohm compression driver rated at 55 W RMS. The source-backed specifications include sensitivity 110 dB, range from 1200 Hz, to 20000 Hz, throat 25.4 mm. bits tracks UK vendor pricing, price movement, and datasheet links, with a current best price of £68.33.
Source-backed specifications
Thiele/Small
- Le
- 0.08mH
Motor and cone
- Voice coil
- 44mm
- Flux density
- 1.95T
Power and response
- Sensitivity
- 110dB
- Power
- 55W
- Impedance
- 8Ω
- Min. impedance
- 7.8Ω
- Range
- 1200–20000Hz
- Crossover
- 1500Hz
- Throat
- 25mm
Size and mounting
- Weight
- 0.9kg
Other published values
- Power Program
- 110
Everything else Lavoce lists
HF · Primary · 1″
- Le
- 0.08mH
- SPL
- 110dB
- Power
- 55W
- Impedance
- 8Ω
- Flux density
- 1.95T
- Sensitivity
- 110dB
- Low limit
- 1200Hz
- Power Program
- 110
- High limit
- 20000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 110dB
- Min. impedance
- 7.8Ω
- Voice coil
- 44mm
- Crossover
- 1500Hz
- Weight
- 0.9kg
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran | £68.33, the lowest price | 9 in stock | Visit shop at Blue Aran |
Best price over time
Tracked since 1 Apr
