1-inch compression driver · DN10 series · 36 mm voice coil · 25 W

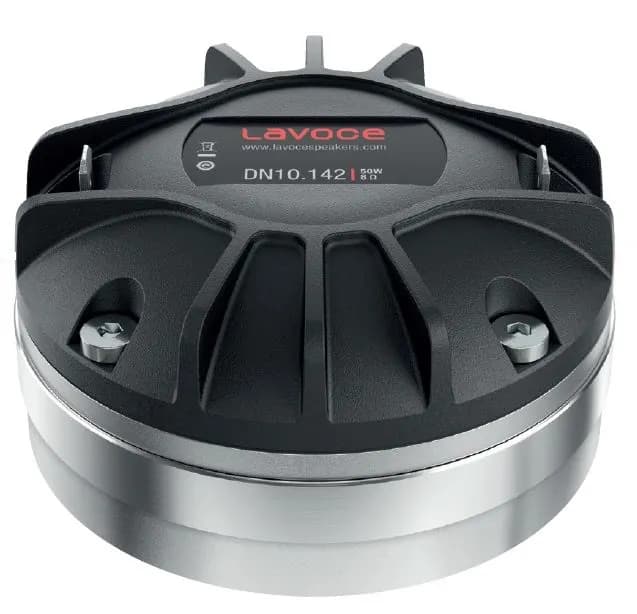

Lavoce DN10.142 8Ω
8 Ω · 1000–18000 Hz
£52.91
SteadyBlue Aran · All 1 offer
- SPL
- 107dB
- Pe
- 25W
- Xover
- 1200Hz
- Throat
- 25mm
- VC
- 36mm
Lavoce DN10.142 is a 1-inch 8 ohm compression driver rated at 25 W RMS. The source-backed specifications include sensitivity 107 dB, range from 1000 Hz, to 18000 Hz, throat 25.4 mm. bits tracks UK vendor pricing, price movement, and datasheet links, with a current best price of £52.91.
Source-backed specifications
Thiele/Small
- Le
- 0.10mH
Motor and cone
- Voice coil
- 36mm
- Flux density
- 1.80T
Power and response
- Sensitivity
- 107dB
- Power
- 25W
- Impedance
- 8Ω
- Min. impedance
- 7.5Ω
- Range
- 1000–18000Hz
- Crossover
- 1200Hz
- Throat
- 25mm
Size and mounting
- Weight
- 0.3kg
Other published values
- Power Program
- 50
Everything else Lavoce lists
HF · Primary · 1″
- Le
- 0.10mH
- SPL
- 107dB
- Power
- 25W
- Impedance
- 8Ω
- Flux density
- 1.80T
- Sensitivity
- 107dB
- Low limit
- 1000Hz
- Power Program
- 50
- High limit
- 18000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 107dB
- Min. impedance
- 7.5Ω
- Voice coil
- 36mm
- Crossover
- 1200Hz
- Weight
- 0.3kg
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran | £52.91, the lowest price | Stock not listed | Visit shop at Blue Aran |
Best price over time
Tracked since 1 Apr
