0.75-inch compression driver · DN07 series · 25 mm voice coil · 15 W

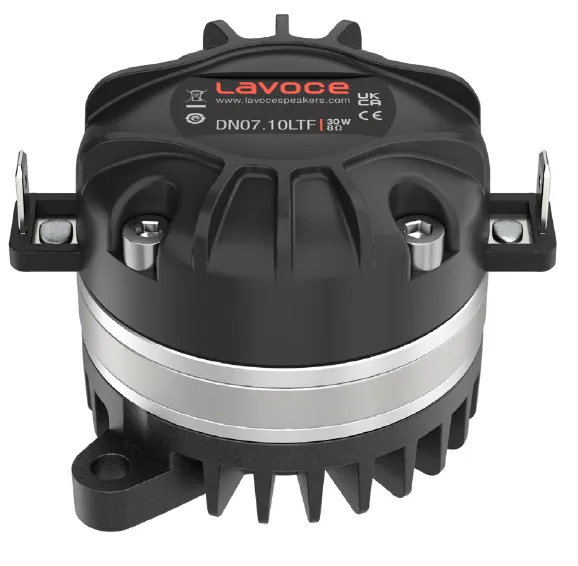

Lavoce DN07.10LTF 8Ω
8 Ω · 700–20000 Hz
No current price
- SPL
- 105dB
- Pe
- 15W
- Xover
- 800Hz
- Throat
- 19mm
- VC
- 25mm

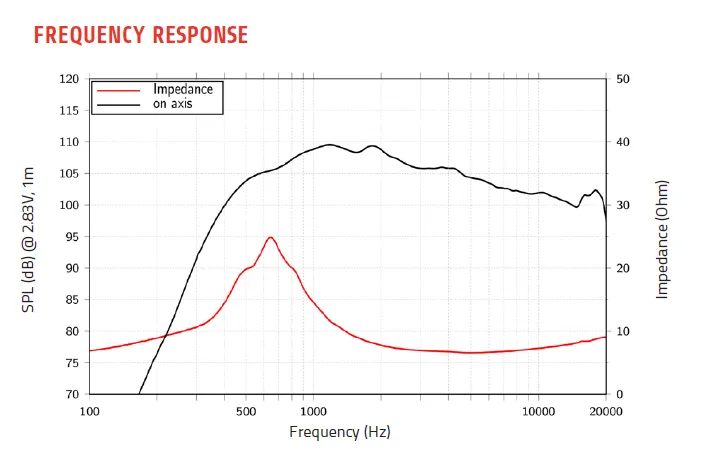

Published graphs
Lavoce DN07.10LTF is a 0.75-inch 8 ohm compression driver rated at 15 W RMS. The source-backed specifications include sensitivity 105 dB, range from 700 Hz, to 20000 Hz, throat 19 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Le
- 0.035mH
Motor and cone
- Voice coil
- 25mm
- Flux density
- 1.60T
Power and response
- Sensitivity
- 105dB
- Power
- 15W
- Impedance
- 8Ω
- Min. impedance
- 6.4Ω
- Range
- 700–20000Hz
- Crossover
- 800Hz
- Throat
- 19mm
Size and mounting
- Weight
- 0.18kg
Other published values
- Power Program
- 30
Everything else Lavoce lists
HF · Primary · 0.7480314960629921″
- Le
- 0.035mH
- SPL
- 105dB
- Power
- 15W
- Impedance
- 8Ω
- Flux density
- 1.60T
- Sensitivity
- 105dB
- Low limit
- 700Hz
- Power Program
- 30
- High limit
- 20000Hz
- Throat
- 19mm
- Manufacturer sensitivity
- 105dB
- Min. impedance
- 6.4Ω
- Voice coil
- 25mm
- Crossover
- 800Hz
- Weight
- 0.18kg
