0.75-inch compression driver · DN07 series · 25 mm voice coil · 10 W

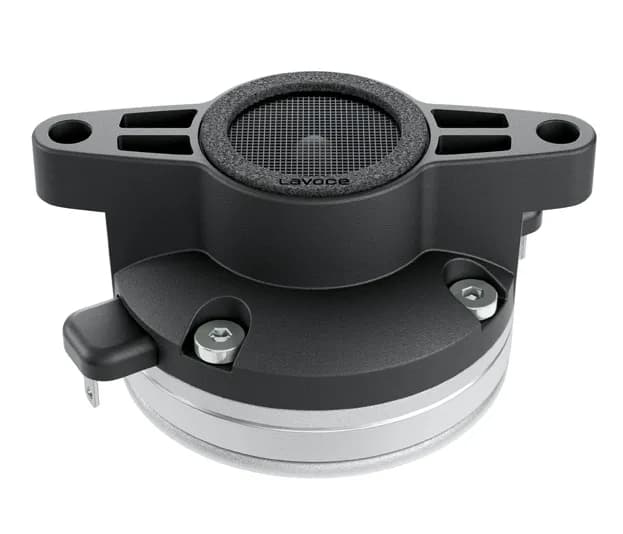

Lavoce DN07.10LM 8Ω
8 Ω · 2000–18000 Hz
£23.04
SteadyBlue Aran · 3 in stock · All 1 offer
- SPL
- 109dB
- Pe
- 10W
- Xover
- 2500Hz
- Throat
- 19mm
- VC
- 25mm
Lavoce DN07.10LM is a 0.75-inch 8 ohm compression driver rated at 10 W RMS. The source-backed specifications include sensitivity 109 dB, range from 2000 Hz, to 18000 Hz, throat 19 mm. bits tracks UK vendor pricing, price movement, and datasheet links, with a current best price of £23.04.
Source-backed specifications
Thiele/Small
- Le
- 0.04mH
Motor and cone
- Voice coil
- 25mm
- Flux density
- 1.65T
Power and response
- Sensitivity
- 109dB
- Power
- 10W
- Impedance
- 8Ω
- Min. impedance
- 6.8Ω
- Range
- 2000–18000Hz
- Crossover
- 2500Hz
- Throat
- 19mm
Size and mounting
- Weight
- 0.15kg
Other published values
- Power Program
- 20
Everything else Lavoce lists
HF · Primary · 0.7480314960629921″
- Le
- 0.04mH
- SPL
- 109dB
- Power
- 10W
- Impedance
- 8Ω
- Flux density
- 1.65T
- Sensitivity
- 109dB
- Low limit
- 2000Hz
- Power Program
- 20
- High limit
- 18000Hz
- Throat
- 19mm
- Manufacturer sensitivity
- 109dB
- Min. impedance
- 6.8Ω
- Voice coil
- 25mm
- Crossover
- 2500Hz
- Weight
- 0.15kg
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran | £23.04, the lowest price | 3 in stock | Visit shop at Blue Aran |
Best price over time
Tracked since 1 Apr
