1-inch compression driver · DF10 series · 35 mm voice coil · 35 W

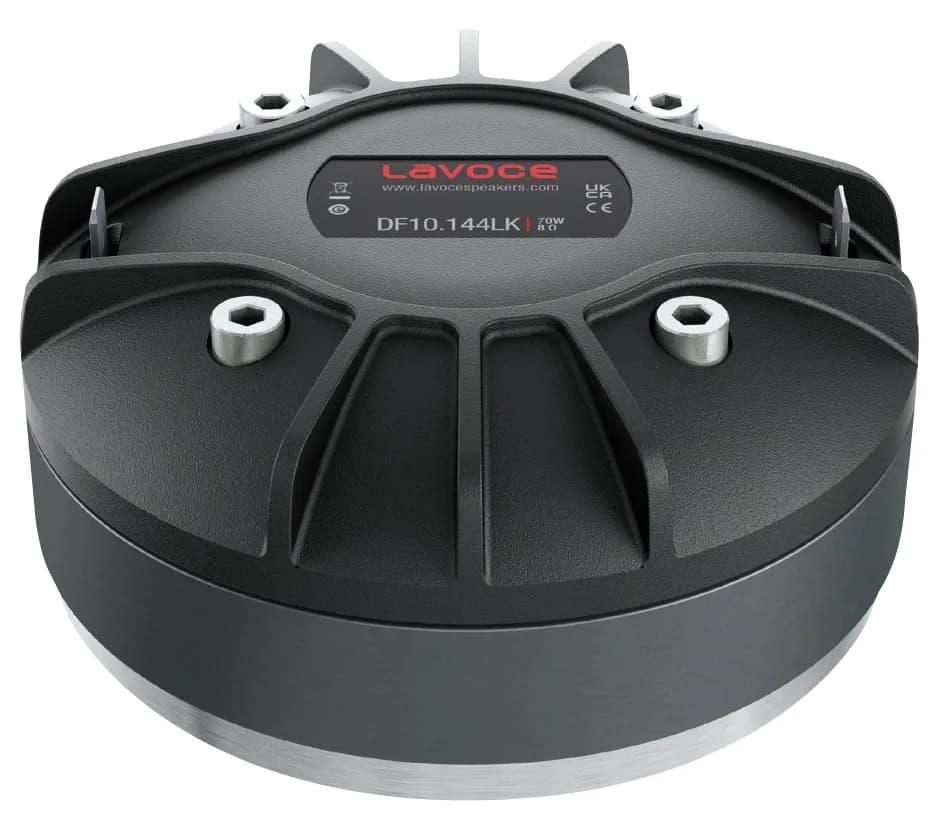

Lavoce DF10.144LK 8Ω
8 Ω · 1000–20000 Hz
No current price
- SPL
- 106dB
- Pe
- 35W
- Xover
- 1200Hz
- Throat
- 25mm
- VC
- 35mm
Lavoce DF10.144LK is a 1-inch 8 ohm compression driver rated at 35 W RMS. The source-backed specifications include sensitivity 106 dB, range from 1000 Hz, to 20000 Hz, throat 25.4 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Le
- 0.09mH
Motor and cone
- Voice coil
- 35mm
- Flux density
- 1.55T
Power and response
- Sensitivity
- 106dB
- Power
- 35W
- Impedance
- 8Ω
- Min. impedance
- 7.4Ω
- Range
- 1000–20000Hz
- Crossover
- 1200Hz
- Throat
- 25mm
Size and mounting
- Weight
- 0.9kg
Other published values
- Power Program
- 70
Everything else Lavoce lists
HF · Primary · 1″
- Le
- 0.09mH
- SPL
- 106dB
- Power
- 35W
- Impedance
- 8Ω
- Flux density
- 1.55T
- Sensitivity
- 106dB
- Low limit
- 1000Hz
- Power Program
- 70
- High limit
- 20000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 106dB
- Min. impedance
- 7.4Ω
- Voice coil
- 35mm
- Crossover
- 1200Hz
- Weight
- 0.9kg
