1-inch compression driver · DF10 series · 36 mm voice coil · 30 W

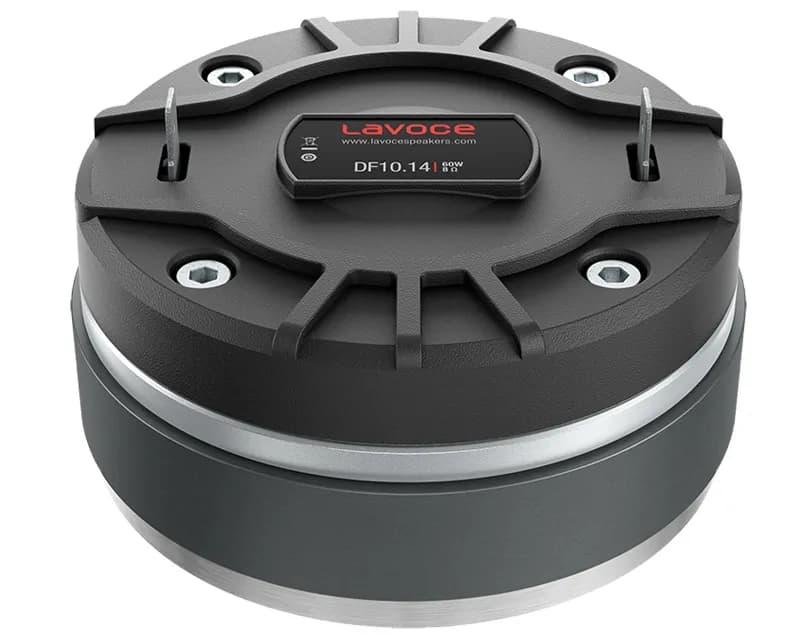

Lavoce DF10.14 8Ω
8 Ω · 1500–20000 Hz
£41.53
SteadyBlue Aran · 8 in stock · All 2 offers
- SPL
- 106dB
- Pe
- 30W
- Xover
- 1700Hz
- Throat
- 25mm
- VC
- 36mm
Lavoce DF10.14 is a 1-inch 8 ohm compression driver rated at 30 W RMS. The source-backed specifications include sensitivity 106 dB, range from 1500 Hz, to 20000 Hz, throat 25.4 mm. bits tracks UK vendor pricing, price movement, and datasheet links, with a current best price of £41.53.
Source-backed specifications
Thiele/Small
- Le
- 0.09mH
Motor and cone
- Voice coil
- 36mm
- Flux density
- 1.50T
Power and response
- Sensitivity
- 106dB
- Power
- 30W
- Impedance
- 8Ω
- Min. impedance
- 7.4Ω
- Range
- 1500–20000Hz
- Crossover
- 1700Hz
- Throat
- 25mm
Size and mounting
- Weight
- 1kg
Other published values
- Power Program
- 60
Everything else Lavoce lists
HF · Primary · 1″
- Le
- 0.09mH
- SPL
- 106dB
- Power
- 30W
- Impedance
- 8Ω
- Flux density
- 1.50T
- Sensitivity
- 106dB
- Low limit
- 1500Hz
- Power Program
- 60
- High limit
- 20000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 106dB
- Min. impedance
- 7.4Ω
- Voice coil
- 36mm
- Crossover
- 1700Hz
- Weight
- 1kg
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran | £41.53, the lowest price | 8 in stock | Visit shop at Blue Aran | |
Boomtown | £49.89 | 20% above the lowest price | In stock | Visit shop at Boomtown |
Best price over time
Tracked since 1 Apr
