1-inch compression driver · DF10 series · 25 mm voice coil · 20 W

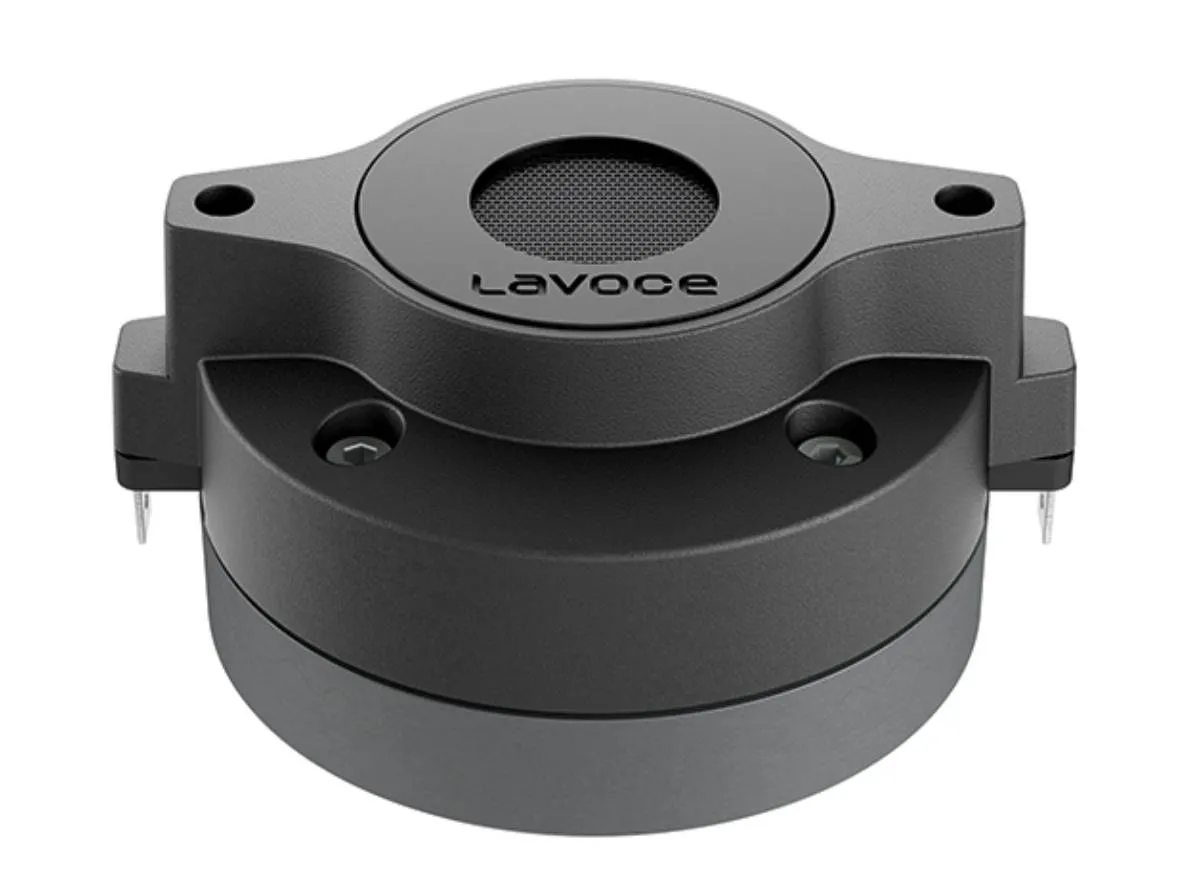

Lavoce DF10.101L 8Ω
8 Ω · 1500–18000 Hz
£15.98
SteadyBlue Aran · 11 in stock · All 1 offer
- SPL
- 107dB
- Pe
- 20W
- Xover
- 2500Hz
- Throat
- 25mm
- VC
- 25mm
Lavoce DF10.101L is a 1-inch 8 ohm compression driver rated at 20 W RMS. The source-backed specifications include sensitivity 107 dB, range from 1500 Hz, to 18000 Hz, throat 25.4 mm. bits tracks UK vendor pricing, price movement, and datasheet links, with a current best price of £15.98.
Source-backed specifications
Thiele/Small
- Le
- 0.03mH
Motor and cone
- Voice coil
- 25mm
- Flux density
- 1.50T
Power and response
- Sensitivity
- 107dB
- Power
- 20W
- Impedance
- 8Ω
- Min. impedance
- 6Ω
- Range
- 1500–18000Hz
- Crossover
- 2500Hz
- Throat
- 25mm

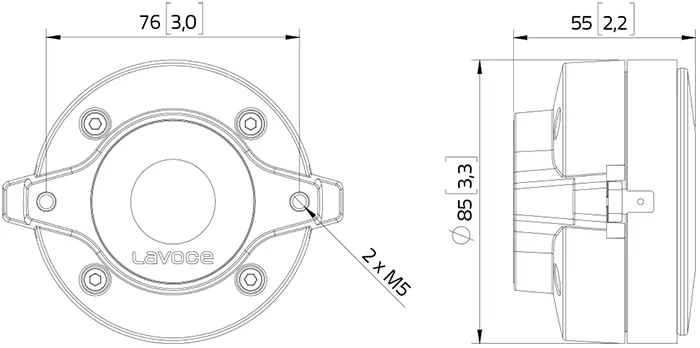

Size and mounting
- Weight
- 0.8kg
Other published values
- Power Program
- 40
Everything else Lavoce lists
HF · Primary · 1″
- Le
- 0.03mH
- SPL
- 107dB
- Power
- 20W
- Impedance
- 8Ω
- Flux density
- 1.50T
- Sensitivity
- 107dB
- Low limit
- 1500Hz
- Power Program
- 40
- High limit
- 18000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 107dB
- Min. impedance
- 6Ω
- Voice coil
- 25mm
- Crossover
- 2500Hz
- Weight
- 0.8kg
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran | £15.98, the lowest price | 11 in stock | Visit shop at Blue Aran |
Best price over time
Tracked since 1 Apr
