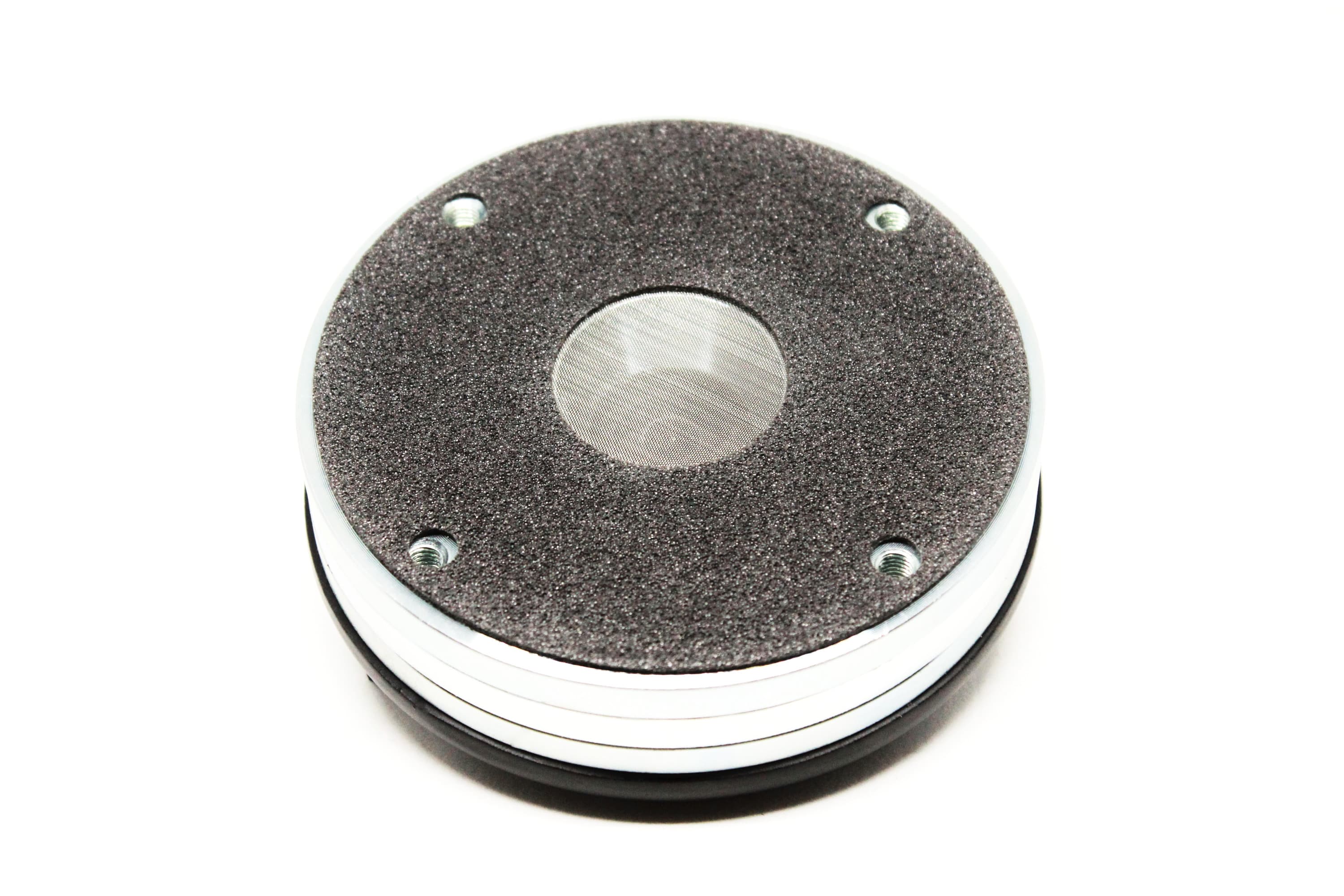

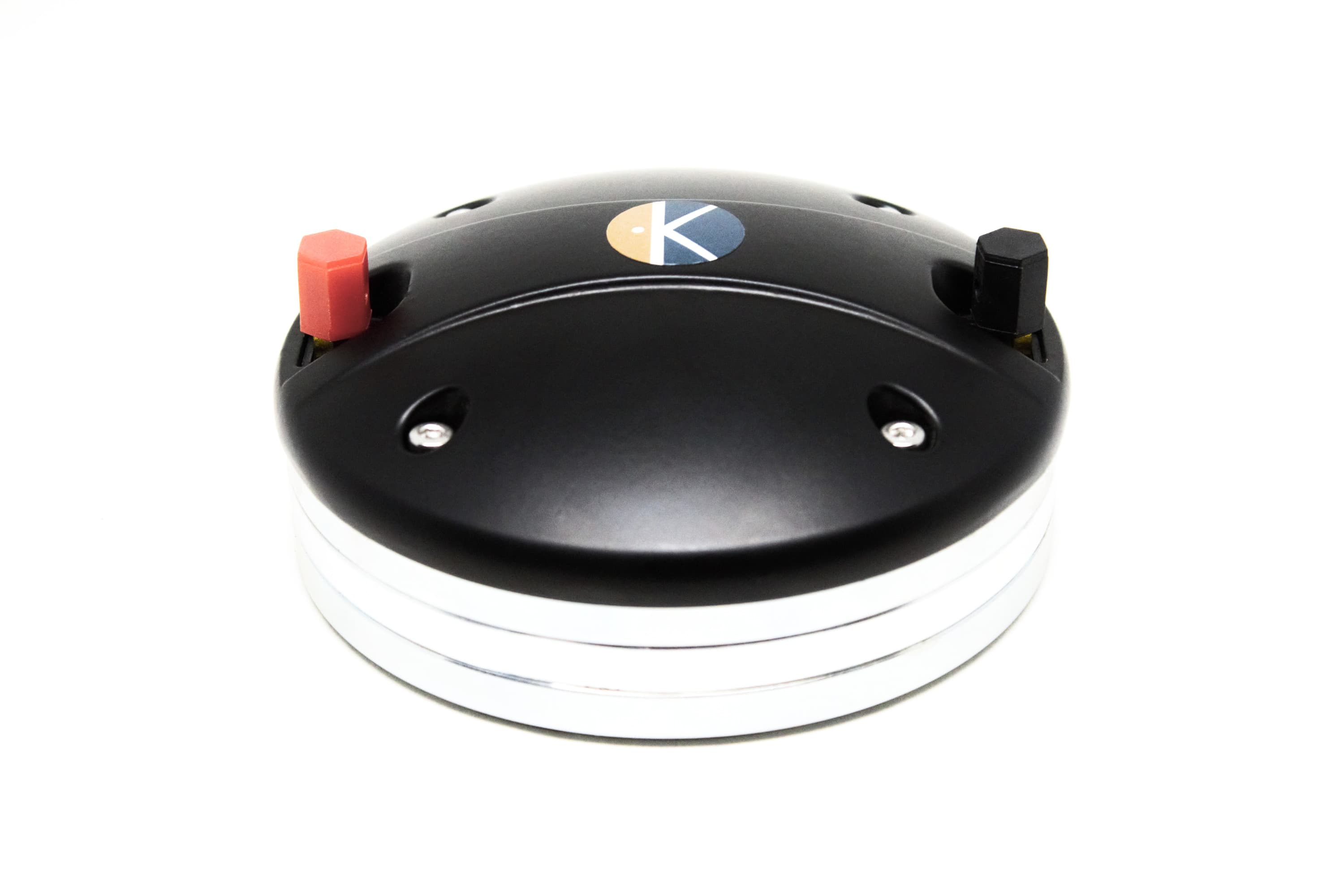

1.5-inch compression driver
Kartesian CMP65_VPA 8Ω
8 Ω · 700–18000 Hz
No current price
- SPL
- 106dB
- Pe
- –
- Xover
- –
- Throat
- –
- VC
- –
Kartesian CMP65_VPA is a 1.5-inch 8 ohm compression driver. The source-backed specifications include sensitivity 106 dB, range from 700 Hz, to 18000 Hz. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Partial source evidence
Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.
Material fields not published: Power
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
Thiele/Small
- Fs
- 720Hz
- Re
- 6.2Ω
Motor and cone
- BL
- 16.4T·m
- Sd
- 34cm²
- Mms
- 0.52g
- Xmax
- 0.5mm
Power and response
- Sensitivity
- 106dB
- Impedance
- 8Ω
- Range
- 700–18000Hz
Size and mounting
- Diameter
- 36mm
Everything else Kartesian lists
HF · Primary · 1.417322834645669″
- BL
- 16.4T·m
- Fs
- 720Hz
- Re
- 6.2Ω
- Sd
- 34cm²
- Mms
- 0.52g
- SPL
- 106dB
- Xmax
- 0.5mm
- Impedance
- 8Ω
- Sensitivity
- 106dB
- Low limit
- 700Hz
- High limit
- 18000Hz
- Manufacturer sensitivity
- 106dB
- Diameter
- 36mm
No current price found. Pricing may appear after the next vendor refresh.
