Kartesian CMP50_VPA-S 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Kartesian
  4. /CMP50_VPA-S

Media

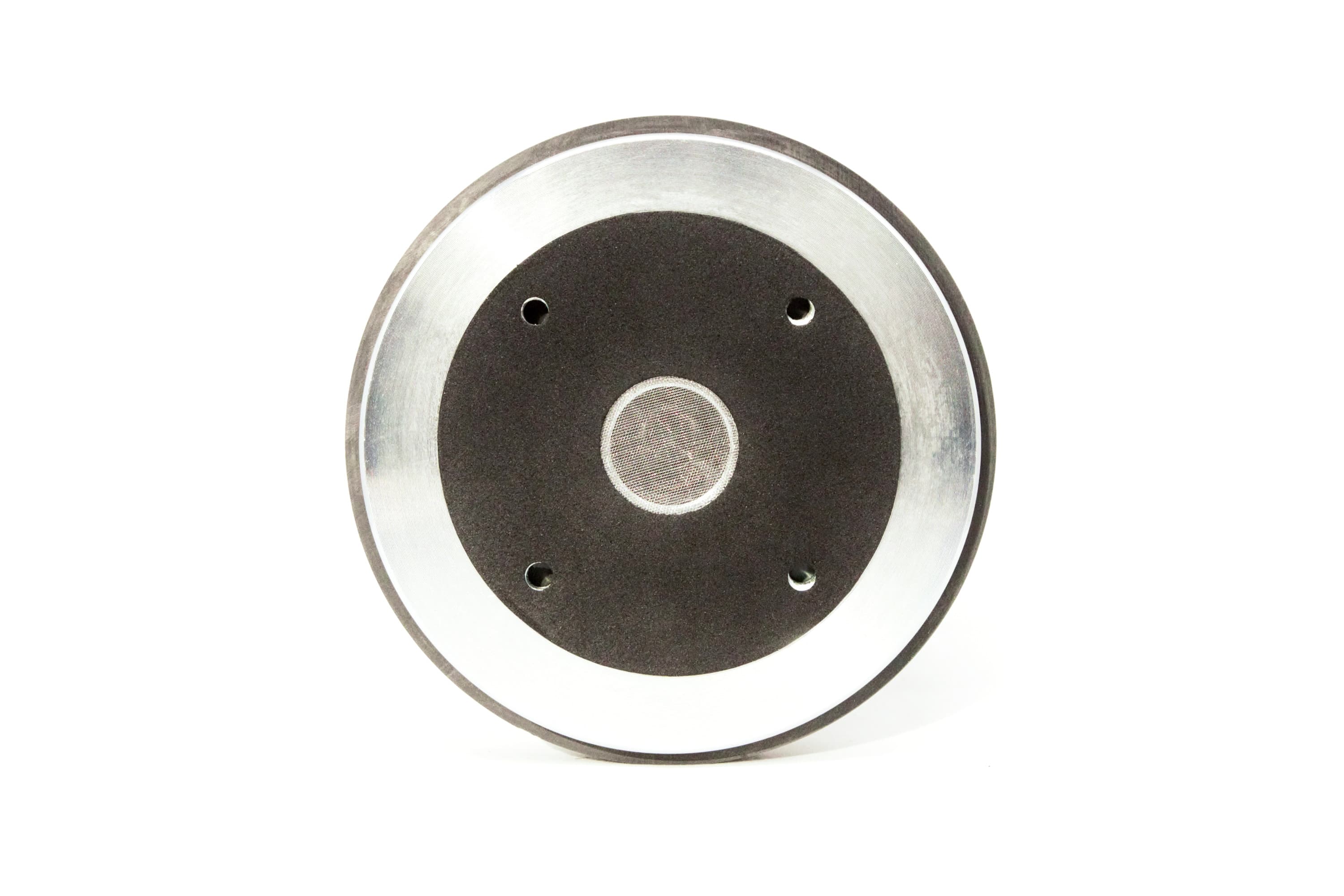

Kartesian CMP50_VPA-S 0.984251968503937 inch 8 ohm loudspeaker driver view 1

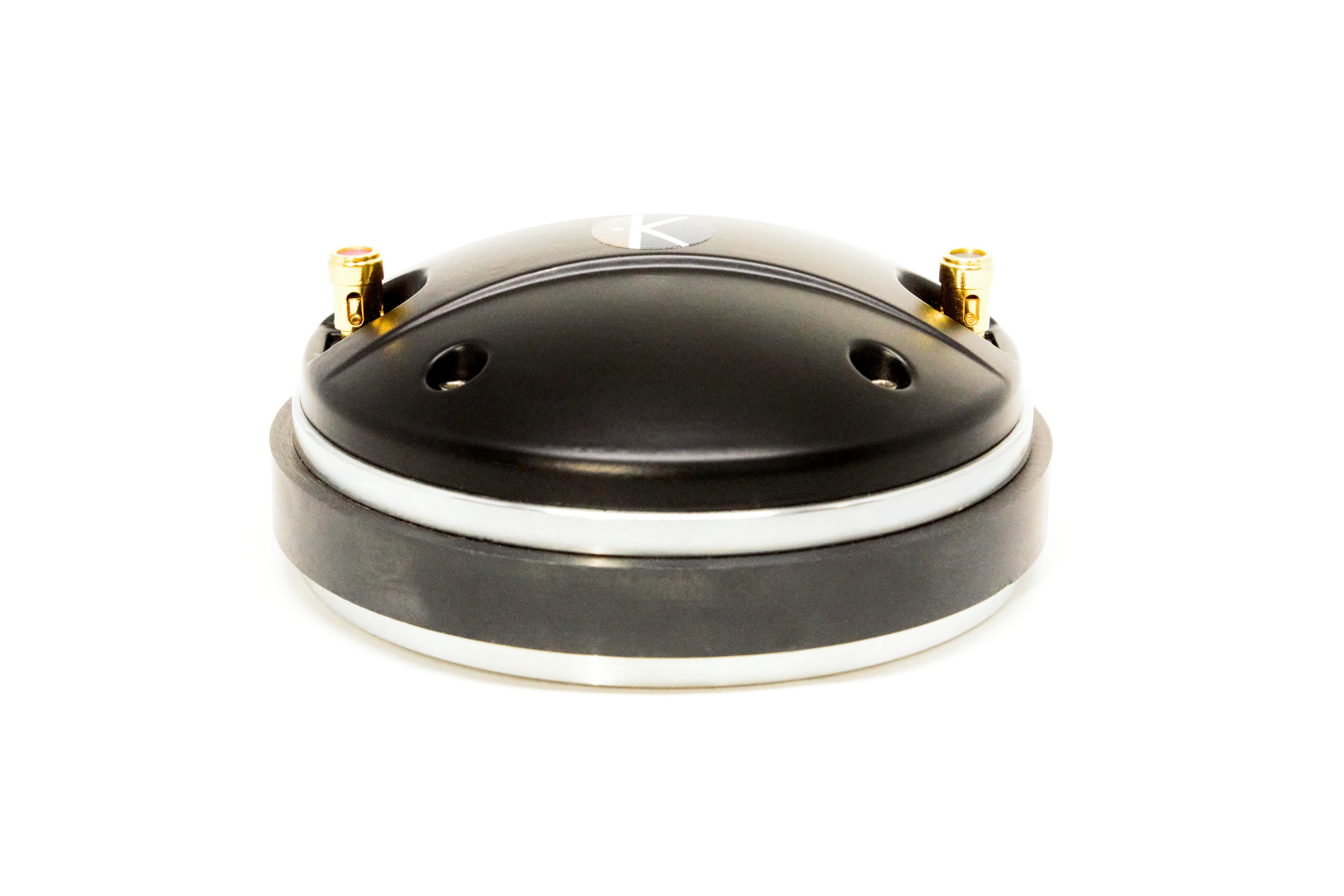

Kartesian CMP50_VPA-S 0.984251968503937 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression Driver
Kartesian

Kartesian CMP50_VPA-S

Kartesian CMP50_VPA-S is a 1" 8 ohm compression driver. The source-backed specifications include sensitivity 106.5dB, range from 1000Hz, to 20000Hz. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Partial source evidence

Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.

Material fields not published: Power

  • Manufacturer page linked
  • Datasheet linked
  • Canonical units normalized for comparison
  • Vd can be derived from Sd and Xmax
Manufacturer source Datasheet Validation methodology
Size
1"
Impedance
8Ω
Sensitivity
106.5dB
Datasheet

Technical Specifications

Canonical
Fs600Hz
Re6.3Ω
BL14.2Tm
Sd20cm²
Mms0g
Xmax0.5mm
SPL107dB
Impedance8Ω
F Low1000Hz
F High20000Hz

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Diameter25.0mm
