Kartesian CMP35_VPA 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Kartesian
  4. /CMP35_VPA

Media

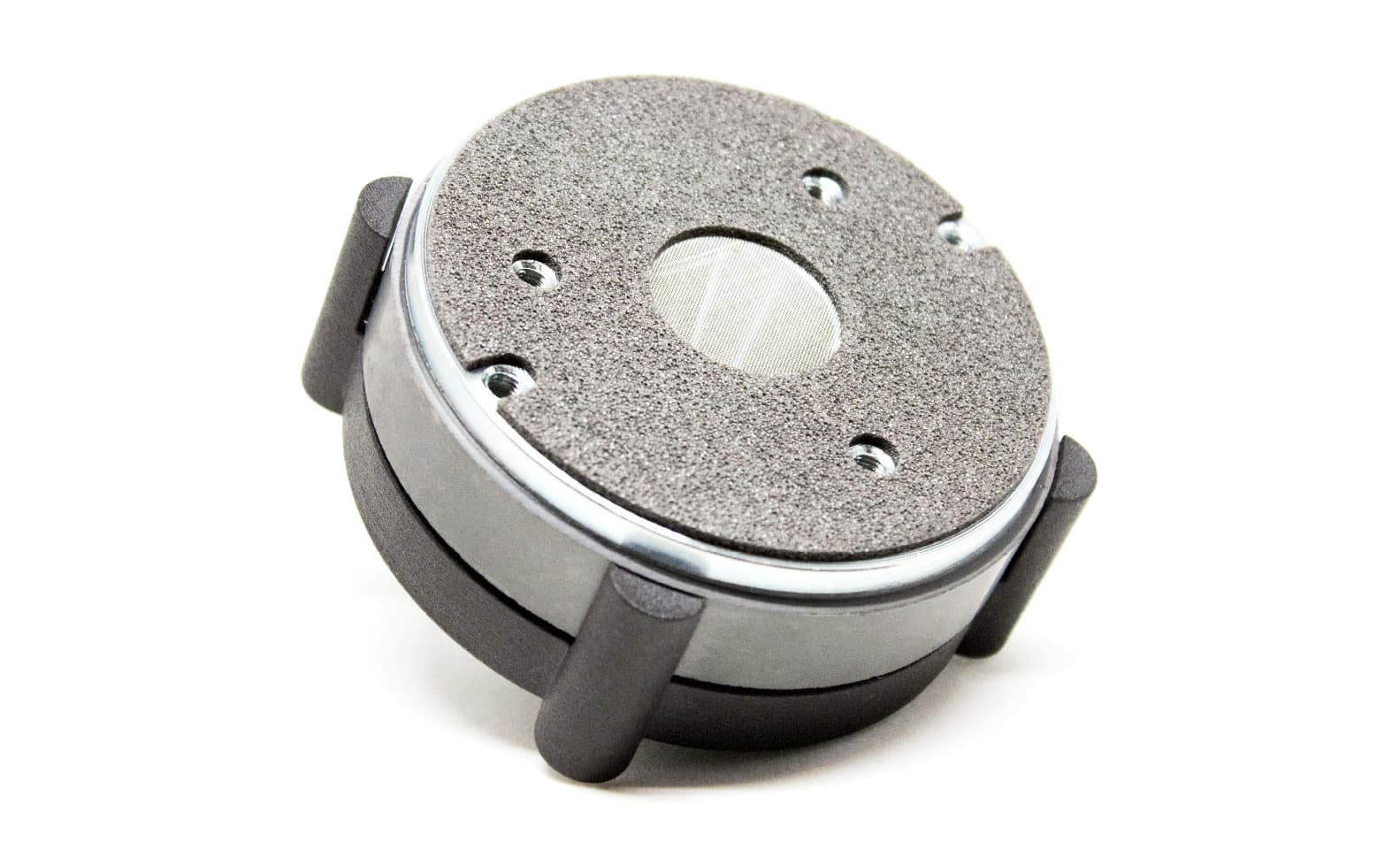

Kartesian CMP35_VPA 0.984251968503937 inch 8 ohm loudspeaker driver view 1

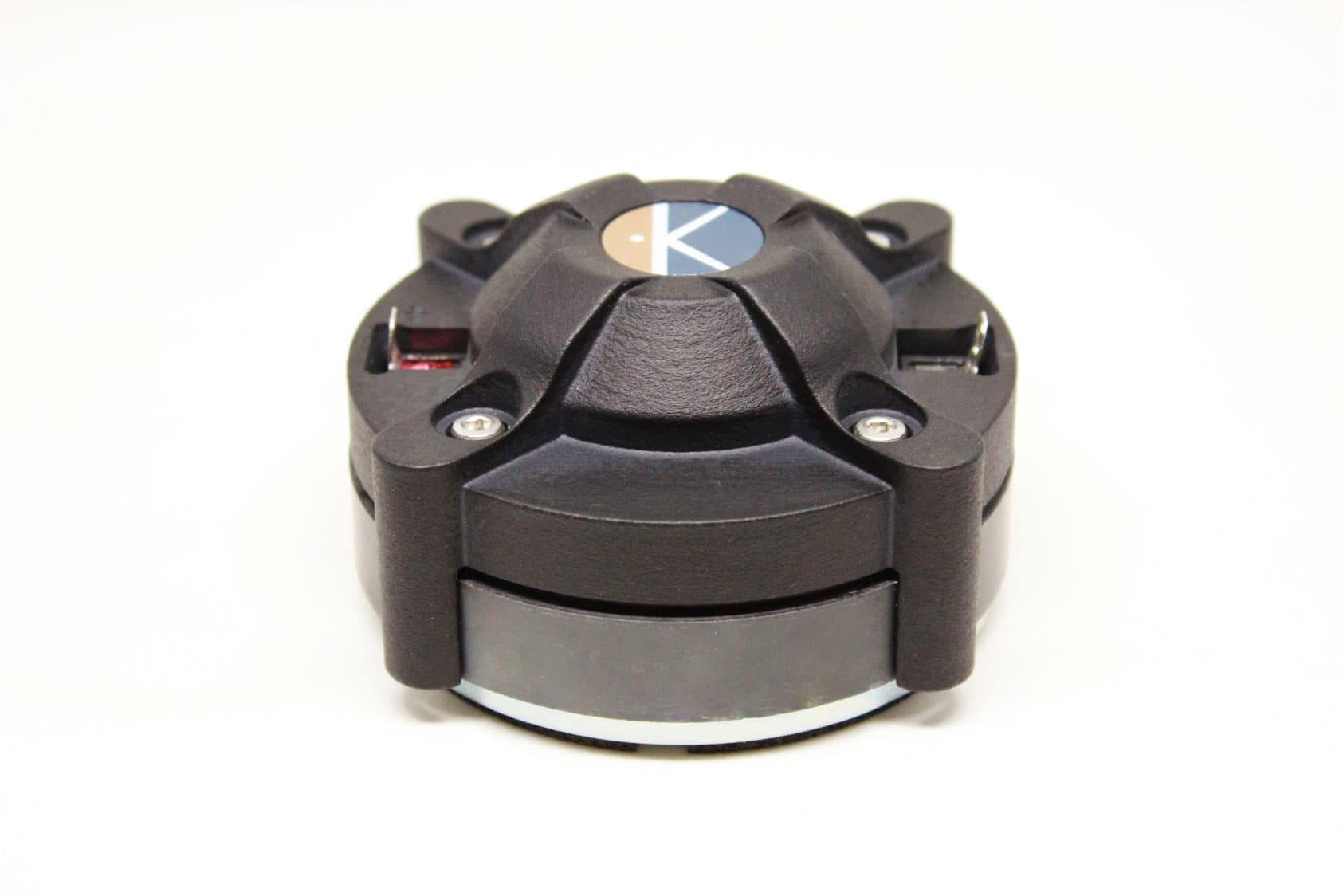

Kartesian CMP35_VPA 0.984251968503937 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression Driver
Kartesian

Kartesian CMP35_VPA

Kartesian CMP35_VPA is a 1" 8 ohm compression driver. The source-backed specifications include sensitivity 103dB, range from 1500Hz, to 20000Hz. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Partial source evidence

Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.

Material fields not published: Power

  • Manufacturer page linked
  • Datasheet linked
  • Canonical units normalized for comparison
  • Vd can be derived from Sd and Xmax
Manufacturer source Datasheet Validation methodology
Size
1"
Impedance
8Ω
Sensitivity
103.0dB
Datasheet

Technical Specifications

Canonical
Fs1010Hz
Re6.6Ω
BL5.2Tm
Sd9cm²
Mms0g
Xmax0.3mm
SPL103dB
Impedance8Ω
F Low1500Hz
F High20000Hz

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Diameter25.0mm
