Fane CD-1544N-P 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Fane
  4. /CD-1544N-P

Media

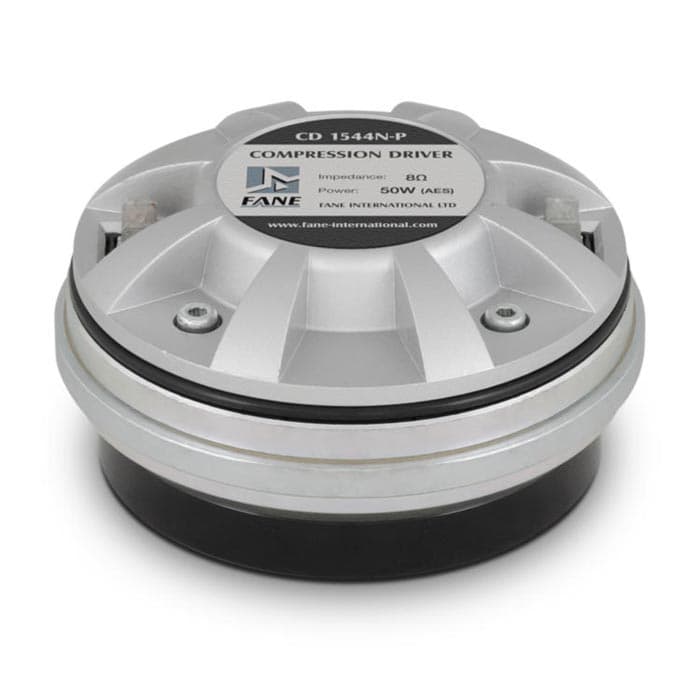

Fane CD-1544N-P 0 inch 8 ohm loudspeaker driver view 1

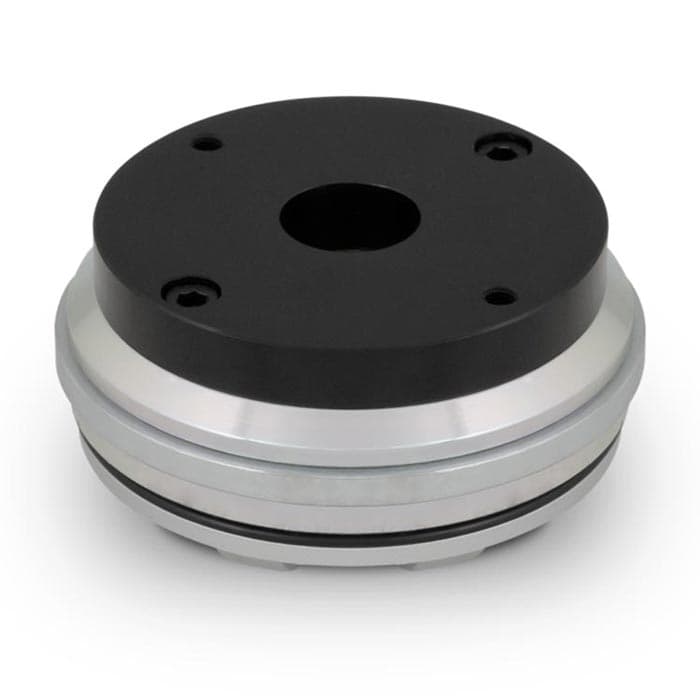

Fane CD-1544N-P 0 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression Driver
Fane

Fane CD-1544N-P

Fane CD-1544N-P is a 4.25" 8 ohm compression driver rated at 50W RMS. The source-backed specifications include sensitivity 105dB, range from 2000Hz, to 18000Hz, throat 25.4mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
4.25"
Impedance
8Ω
RMS Power
50W
Sensitivity
105.0dB
Datasheet

Technical Specifications

Canonical
Re6.2Ω
SPL105dB
Power50W
Impedance8Ω
F Low2000Hz
F High18000Hz
Throat25mm
Voice Coil44mm
Flux Density1.40T

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight3.5kg
Diameter105.9mm
Overall Depth54.9mm
Bolt Circle Diameter50.8mm
