Fane CD-140 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Fane
  4. /CD-140

Media

Fane CD-140 0 inch 8 ohm loudspeaker driver view 1

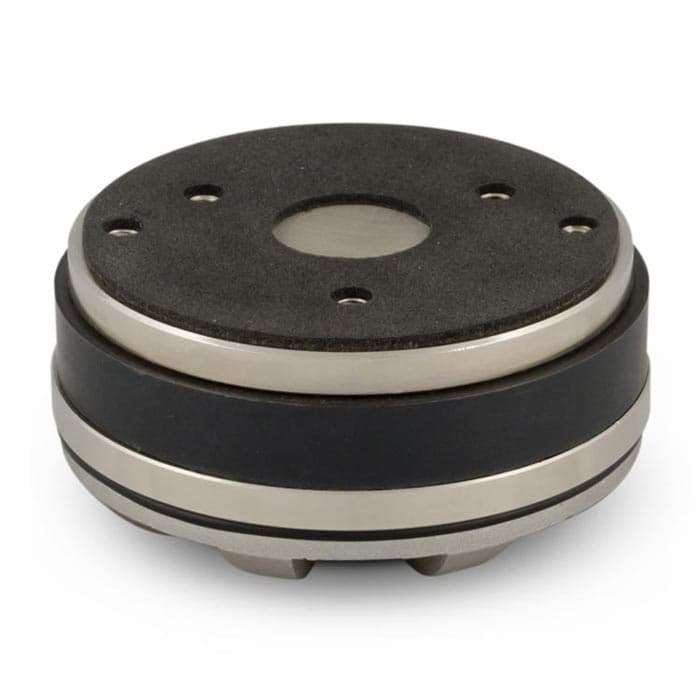

Fane CD-140 0 inch 8 ohm loudspeaker driver view 2

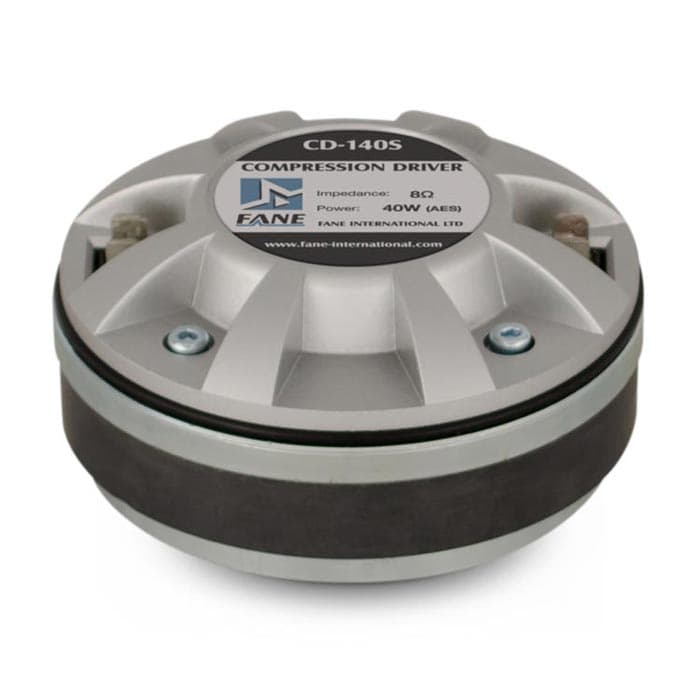

Fane CD-140 0 inch 8 ohm loudspeaker driver view 3
Auto-advancing

Overview

Compression Driver
Fane

Fane CD-140

Fane CD-140 is a 4" 8 ohm compression driver rated at 40W RMS. The source-backed specifications include sensitivity 105dB, range from 2000Hz, to 18000Hz, throat 25.4mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
4"
Impedance
8Ω
RMS Power
40W
Sensitivity
105.0dB
Datasheet

Technical Specifications

Canonical
Re6.2Ω
SPL105dB
Power40W
Impedance8Ω
F Low2000Hz
F High18000Hz
Throat25mm
Voice Coil44mm
Flux Density1.35T

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight3.4kg
Diameter101.6mm
Overall Depth50.0mm
Bolt Circle Diameter76.2mm
