Fane CD-130 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Fane
  4. /CD-130

Media

Fane CD-130 0 inch 8 ohm loudspeaker driver view 1

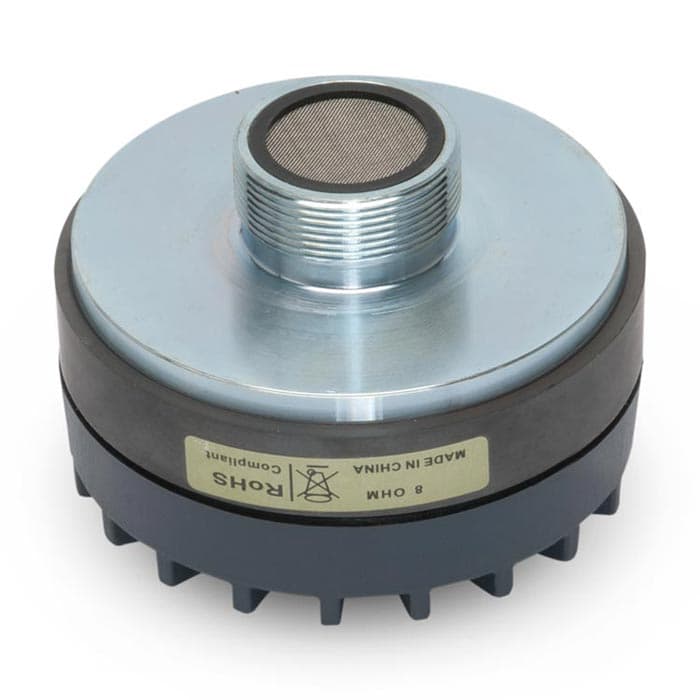

Fane CD-130 0 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression Driver
Fane

Fane CD-130

Fane CD-130 is a 3.5" 8 ohm compression driver rated at 30W RMS. The source-backed specifications include sensitivity 106dB, range from 2000Hz, to 18000Hz, throat 25.4mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
3.5"
Impedance
8Ω
RMS Power
30W
Sensitivity
106.0dB
Datasheet

Technical Specifications

Canonical
Re6.4Ω
SPL106dB
Power30W
Impedance8Ω
F Low2000Hz
F High18000Hz
Throat25mm
Voice Coil34mm
Flux Density1.25T

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight2.0kg
Diameter89.9mm
Overall Depth43.9mm
