1-inch compression driver · 44 mm voice coil · 60 W

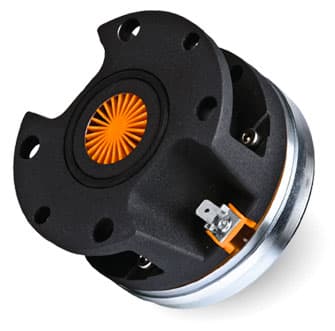

FaitalPRO HF10TX 8Ω
8 Ω · 800–20000 Hz
No current price
- SPL
- 109dB
- Pe
- 60W
- Xover
- 1500Hz
- Throat
- 25mm
- VC
- 44mm
FaitalPRO HF10TX is a 1-inch 8 ohm compression driver rated at 60 W RMS. The source-backed specifications include sensitivity 109 dB, range from 800 Hz, to 20000 Hz, throat 25.4 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Re
- 5.5Ω
Motor and cone
- Voice coil
- 44mm
Power and response
- Sensitivity
- 109dB
- Power
- 60W
- Impedance
- 8Ω
- Min. impedance
- 7Ω
- Range
- 800–20000Hz
- Crossover
- 1500Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 87mm
- Depth
- 56mm
- Weight
- 1.1kg
Other published values
- Power Program
- 120
Everything else FaitalPRO lists
LF · Primary · 1″
- Re
- 5.5Ω
- SPL
- 109dB
- Power
- 60W
- Impedance
- 8Ω
- Sensitivity
- 109dB
- Low limit
- 800Hz
- Power Program
- 120
- High limit
- 20000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 109dB
- Min. impedance
- 7Ω
- Voice coil
- 44mm
- Crossover
- 1500Hz
- Weight
- 1.1kg
- Diameter
- 87mm
- Depth
- 56mm
No current price found. Pricing may appear after the next vendor refresh.
