LF DriverALPHA series
Eminence

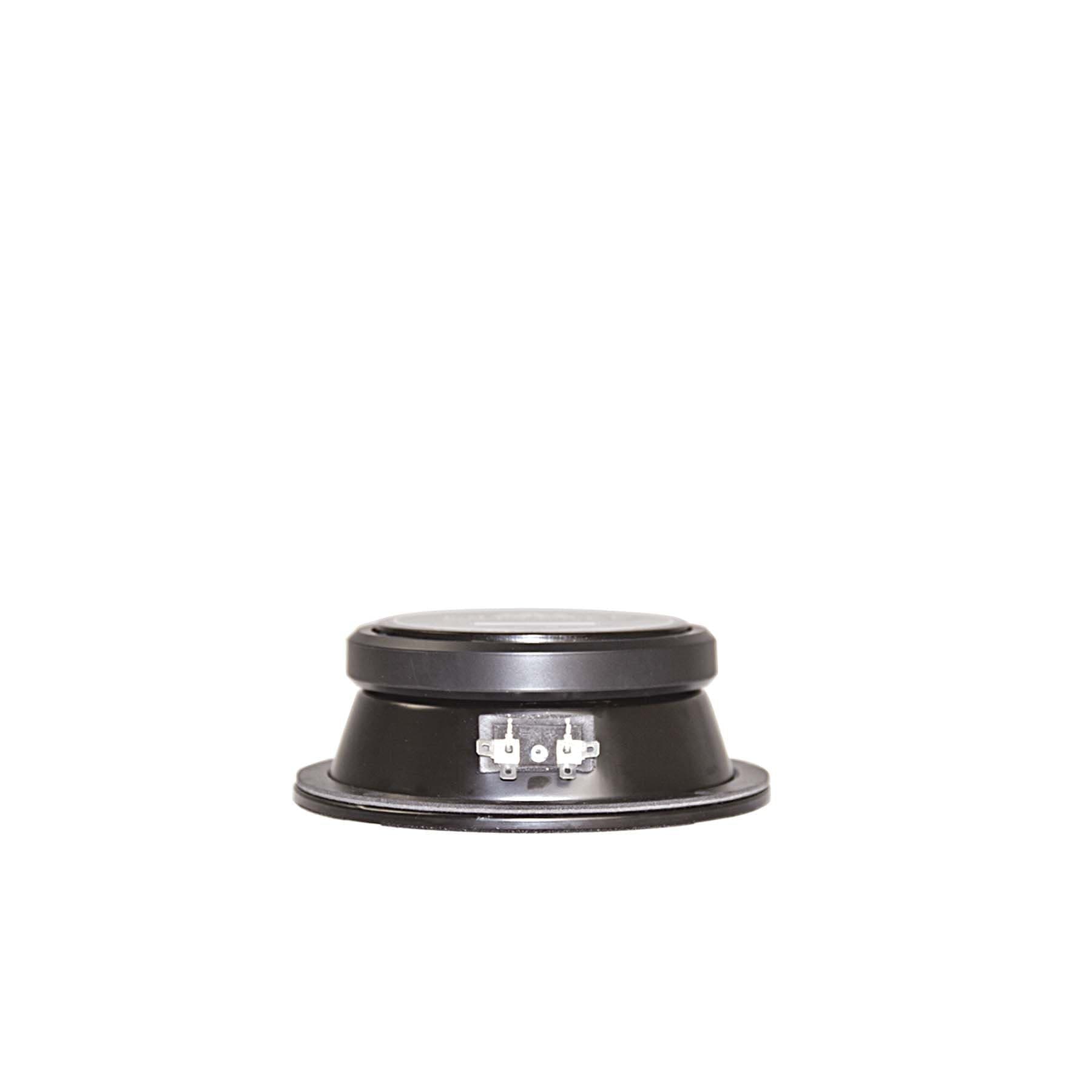

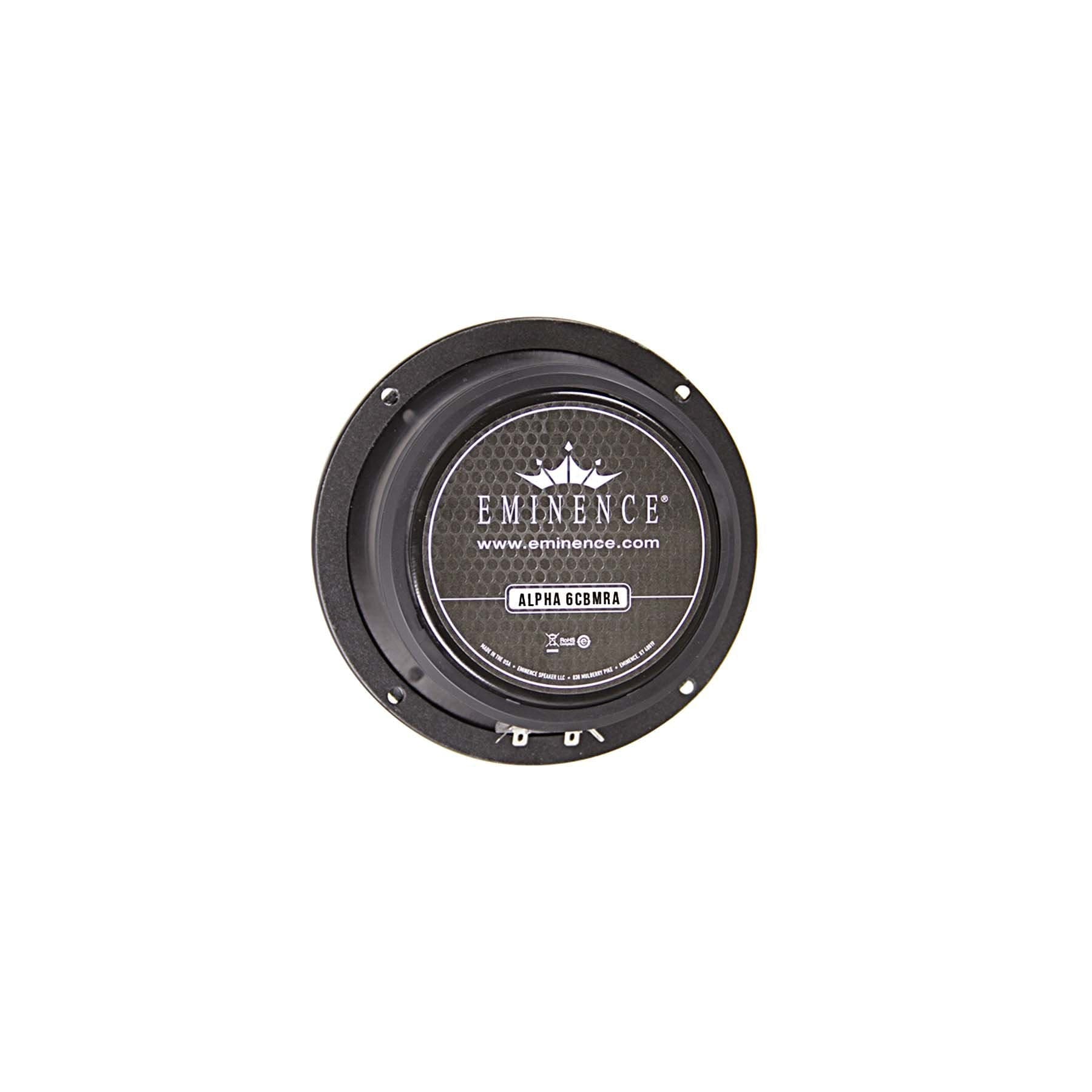

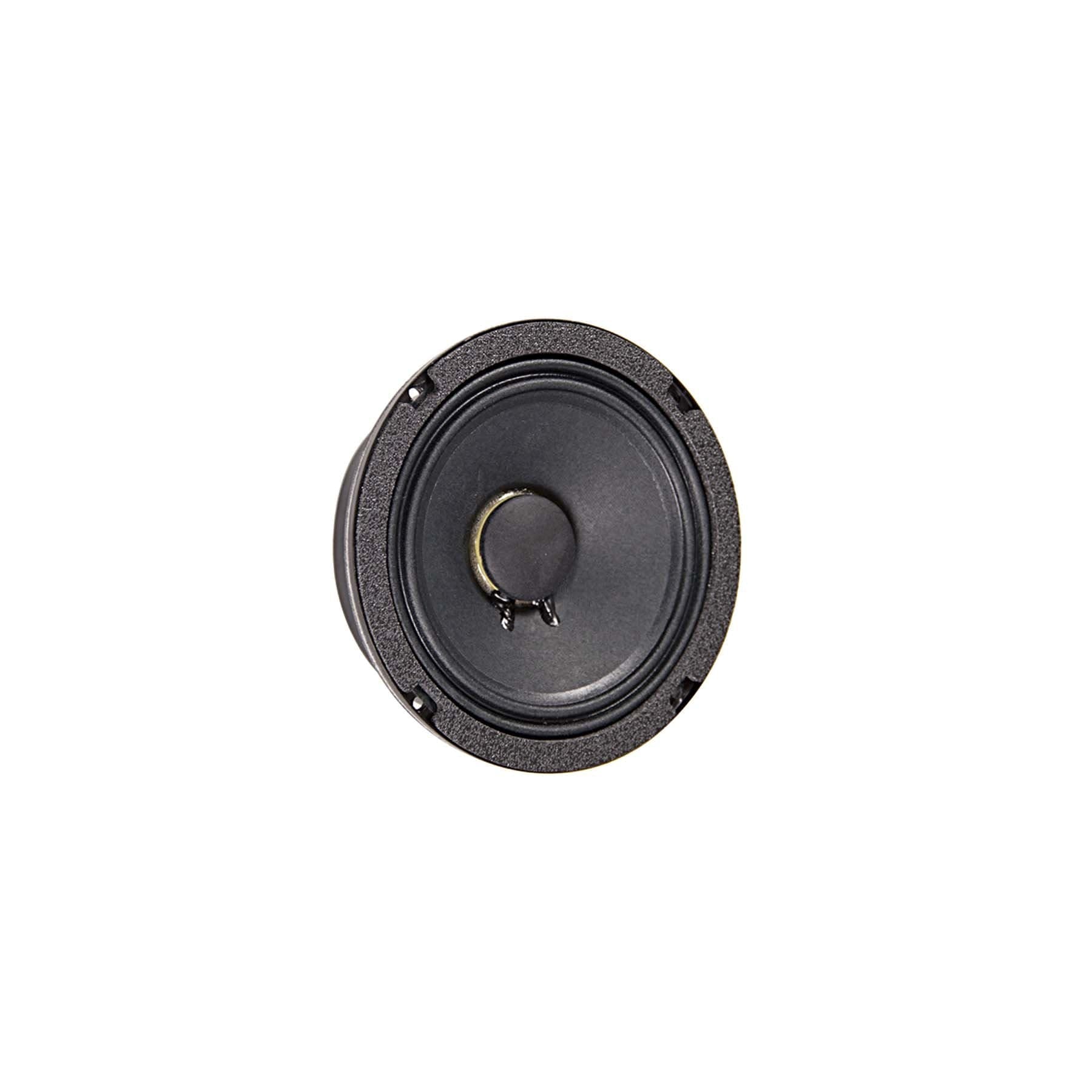

Eminence ALPHA-6CBMRA
Eminence ALPHA-6CBMRA is a 6" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 407Hz, Qts 1.35, Vas 0.5L, Xmax 1.5mm, sensitivity 94.4dB, plus 19cm³ Vd and 234 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £62.27.
Size
6"
Impedance
8Ω
RMS Power
100W
Sensitivity
94.4dB
97.8dBmanufacturer; using T/S-derived value (3.4dB delta).
EBP
234
Vented alignment
Vd
19cm³
T/S Parameters
Valid
Fs407Hz
Qts1.35
Qes1.74
Qms6.0
Vas0.5L
Re5.3Ω
Le0.38mH
BL7.9Tm
Sd127cm²
Mms8g
Xmax1.5mm
SPL94dB
Power100W
Impedance8Ω
F Low400Hz
F High5000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£62.27
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.7kg
Diameter167.4mm
Overall Depth55.9mm
Cutout Diameter144.5mm
Bolt Circle Diameter153.9mm
