Overview
LF DriverALPHA series
Eminence

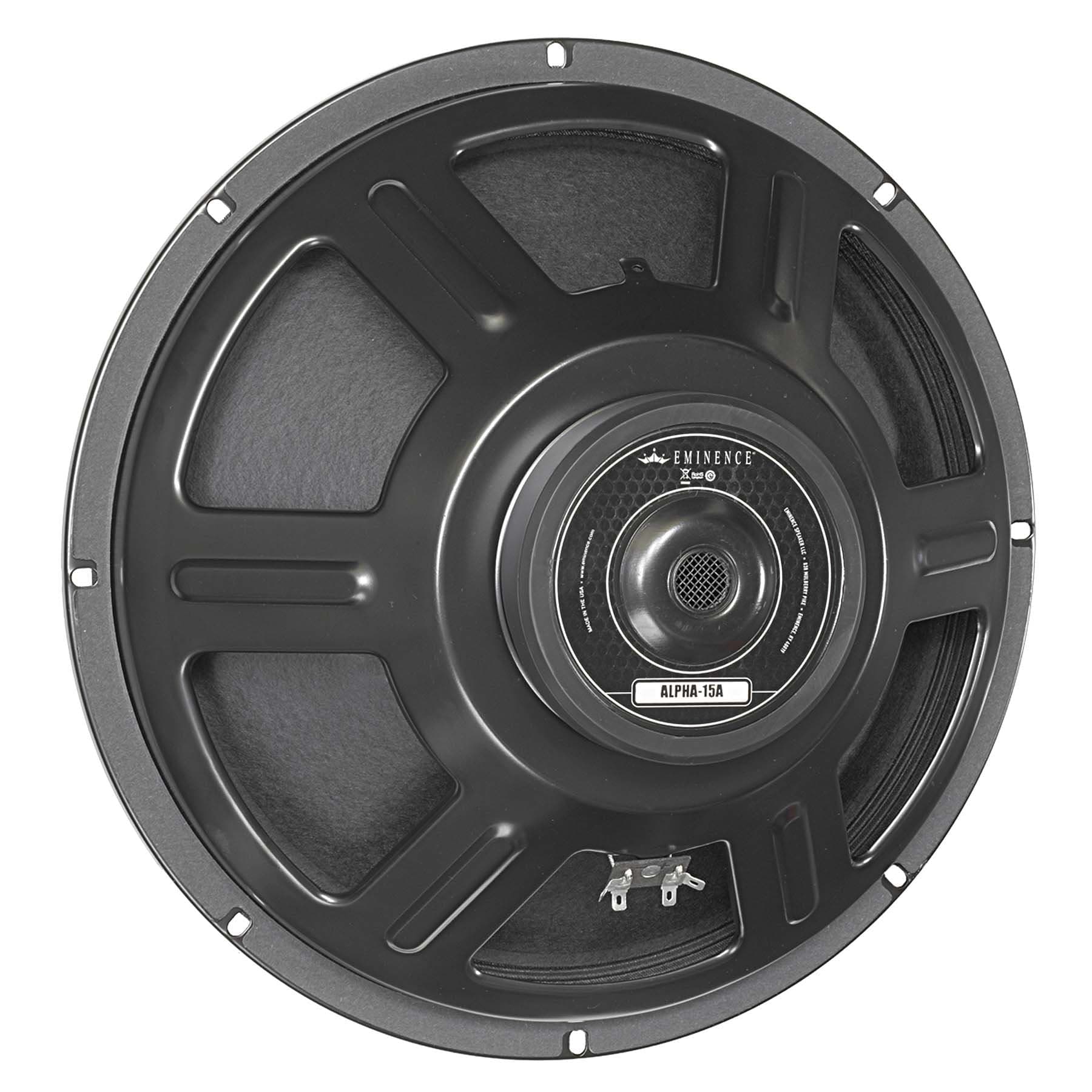

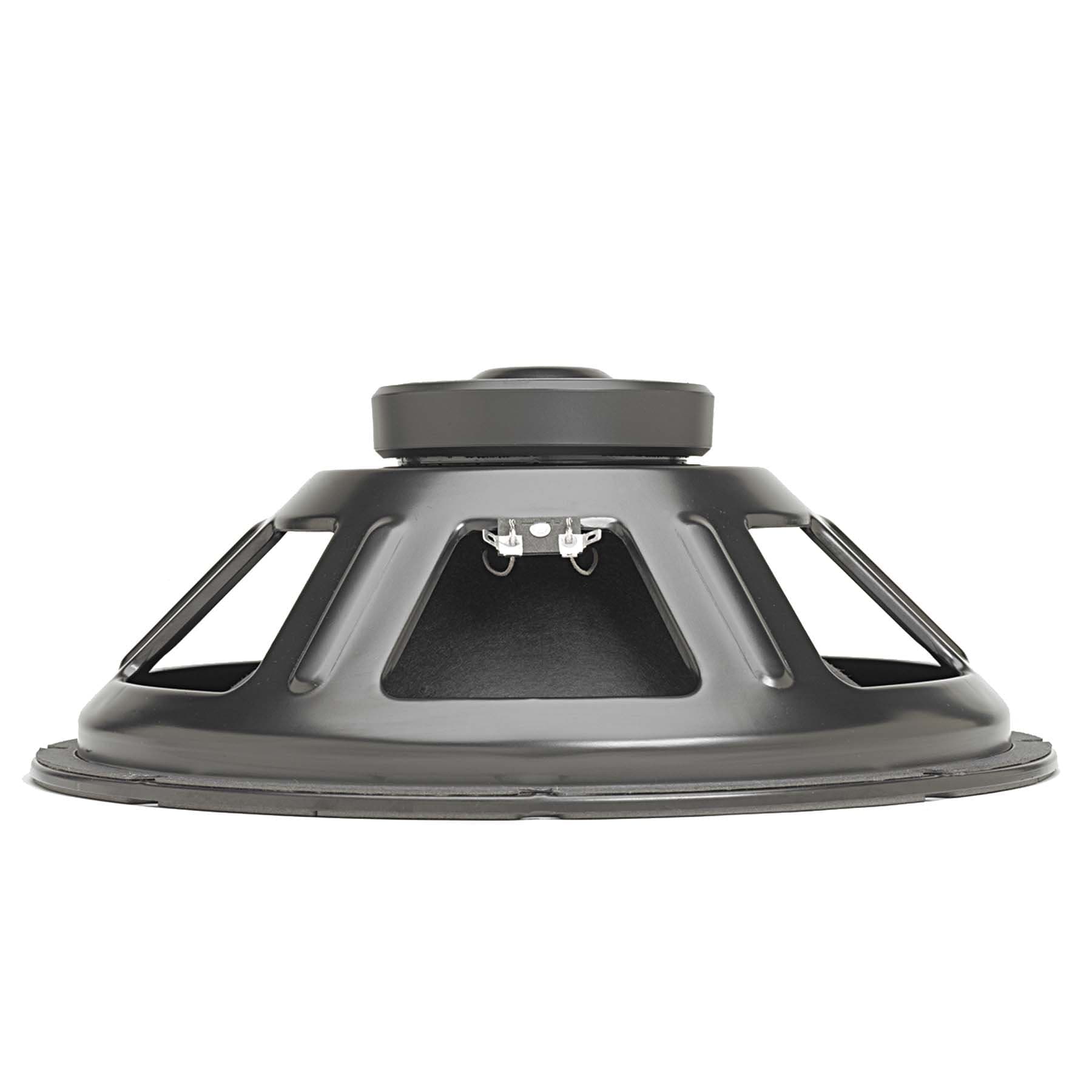

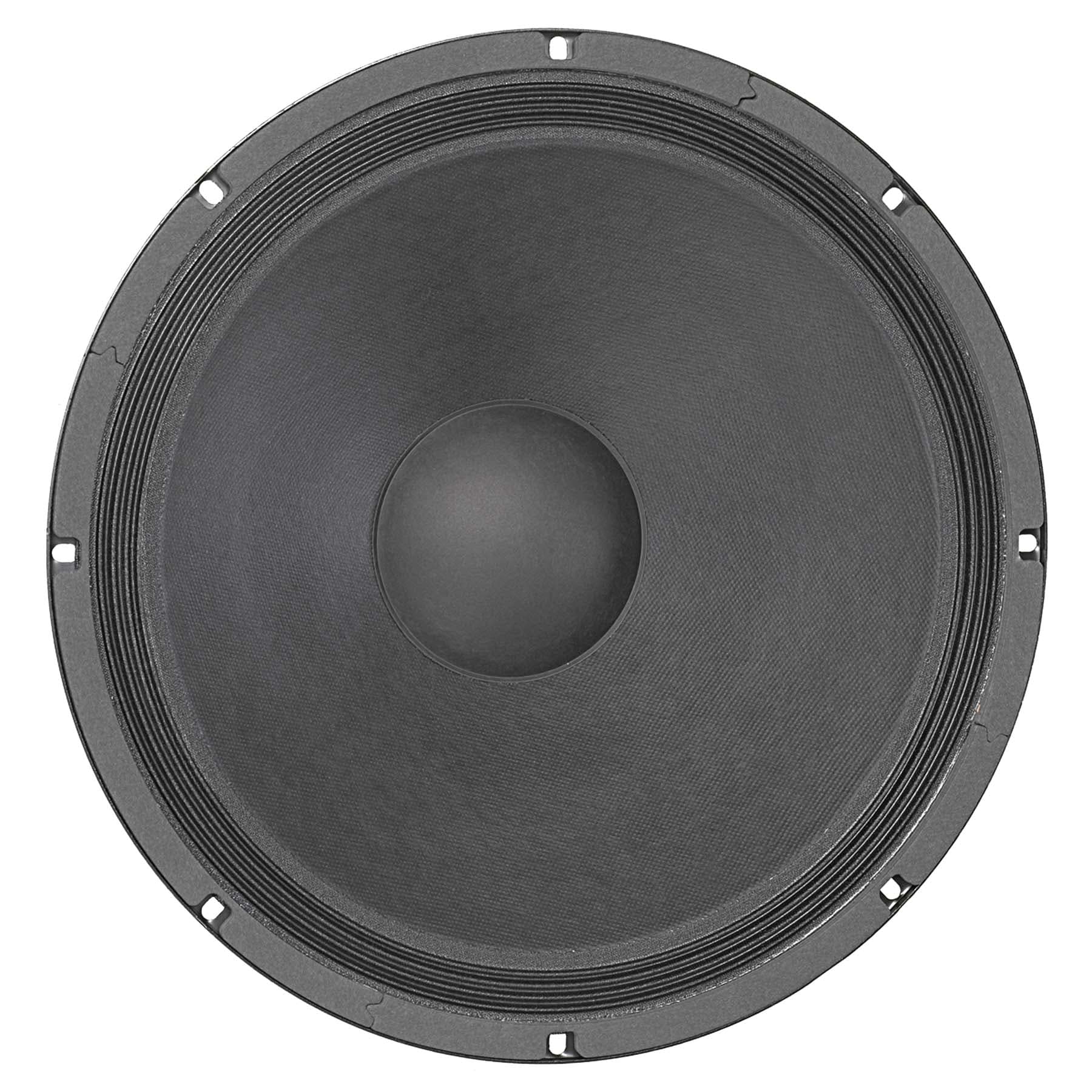

Eminence ALPHA-15A
Eminence ALPHA-15A is a 15" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 41Hz, Qts 1.26, Vas 260L, Xmax 3.8mm, sensitivity 92.7dB, plus 325cm³ Vd and 27 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £103.54.
Size
15"
Impedance
8Ω
RMS Power
200W
Sensitivity
92.7dB
97.0dBmanufacturer; using T/S-derived value (4.3dB delta).
EBP
27
Sealed alignment
Vd
325cm³
T/S Parameters
Valid
Fs41Hz
Qts1.26
Qes1.53
Qms7.2
Vas260.0L
Re5.9Ω
Le0.84mH
BL7.7Tm
Sd856cm²
Mms59g
Xmax3.8mm
SPL93dB
Power200W
Impedance8Ω
F Low46Hz
F High3000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£112.42
inc VAT
Out of stock
bluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£114.82
inc VAT
25 in stock5-7 weeks
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£120.00
inc VAT
Best current price
Updated 11 Sept 2026
partsexpress
£103.54
Avg £112.79£9.24 below avg (-8.2%)
inc VAT·4 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.0kg
Diameter384.8mm
Overall Depth148.1mm
Cutout Diameter352.3mm
Bolt Circle Diameter369.8mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
ALPHA-15A
15"
Best current price
£103.54
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
Loading matches
