Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEminence ALPHA-12A 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverALPHA series
Eminence

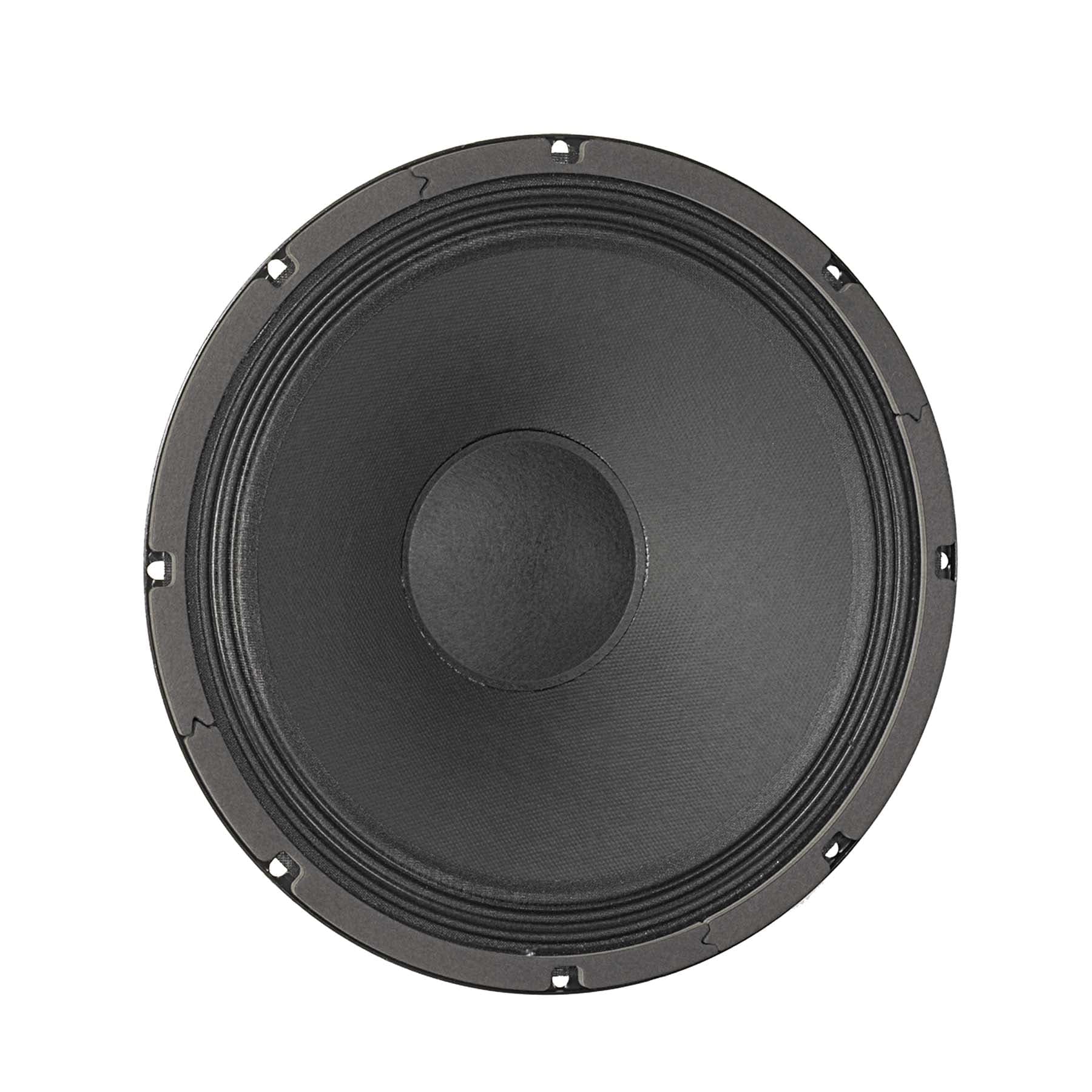

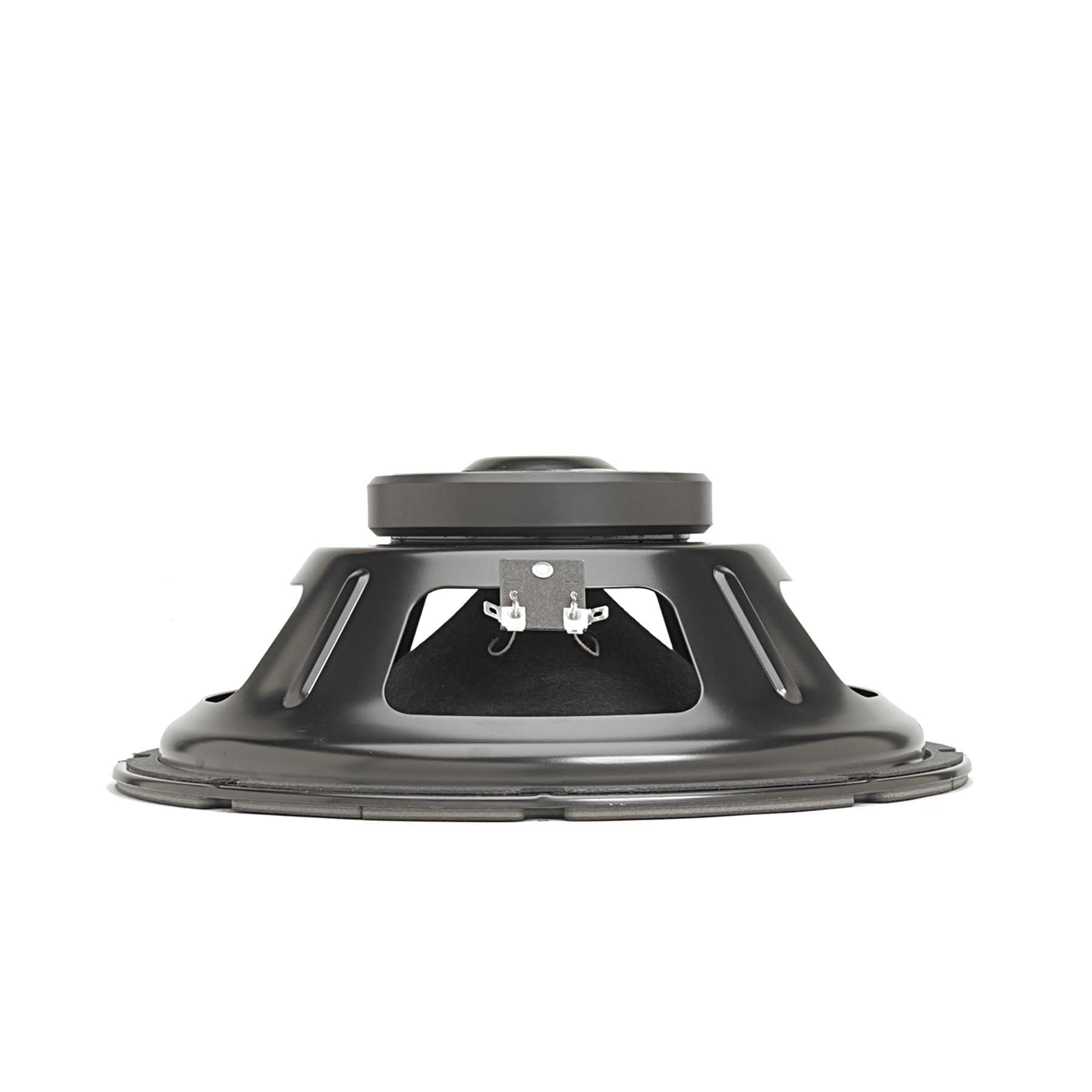

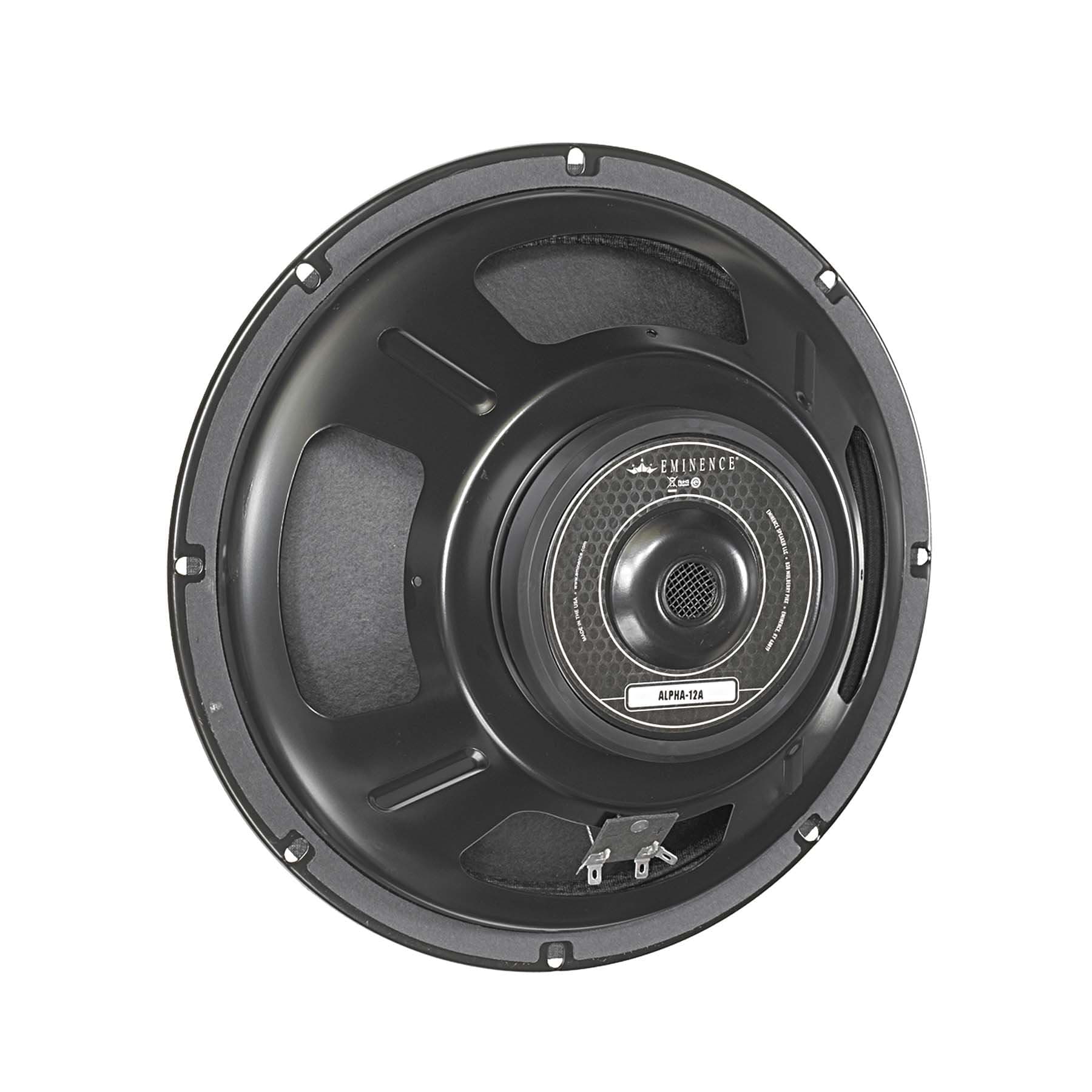

Eminence ALPHA-12A
Eminence ALPHA-12A is a 12" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 49Hz, Qts 0.77, Vas 121.5L, Xmax 2.4mm, sensitivity 94.1dB, plus 125cm³ Vd and 56 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £59.99.
Size
12"
Impedance
8Ω
RMS Power
150W
Sensitivity
94.1dB
95.6dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
56
Either alignment
Vd
125cm³
T/S Parameters
Valid
Fs49Hz
Qts0.77
Qes0.88
Qms6.5
Vas121.5L
Re6.3Ω
Le0.79mH
BL8.5Tm
Sd520cm²
Mms33g
Xmax2.4mm
SPL94dB
Power150W
Impedance8Ω
F Low51Hz
F High4000Hz
Pricing & availability
Price definitionsOffers & B-stock
1 hidden from price comparisons
Price movement
Other offers
3 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£88.34
inc VAT
In stock
partsexpress
Updated 19 Aug 2026
Source: ex VAT
£88.75
inc VAT
Out of stock
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£93.47
inc VAT
Best current price
Updated 11 Sept 2026
bluearan
£59.99
Avg £80.60£20.61 below avg (-25.6%)
inc VAT·1 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.4kg
Diameter311.4mm
Overall Depth120.1mm
Cutout Diameter280.9mm
Bolt Circle Diameter297.4mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
ALPHA-12A
12"
Best current price
£59.99
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
Loading matches
