1.5-inch compression driver · 75 mm voice coil · 120 W
Eighteen Sound ND3SG 8Ω
8 Ω · 800–20000 Hz
No current price
- SPL
- 112dB
- Pe
- 120W
- Xover
- 1200Hz
- Throat
- 36mm
- VC
- 75mm

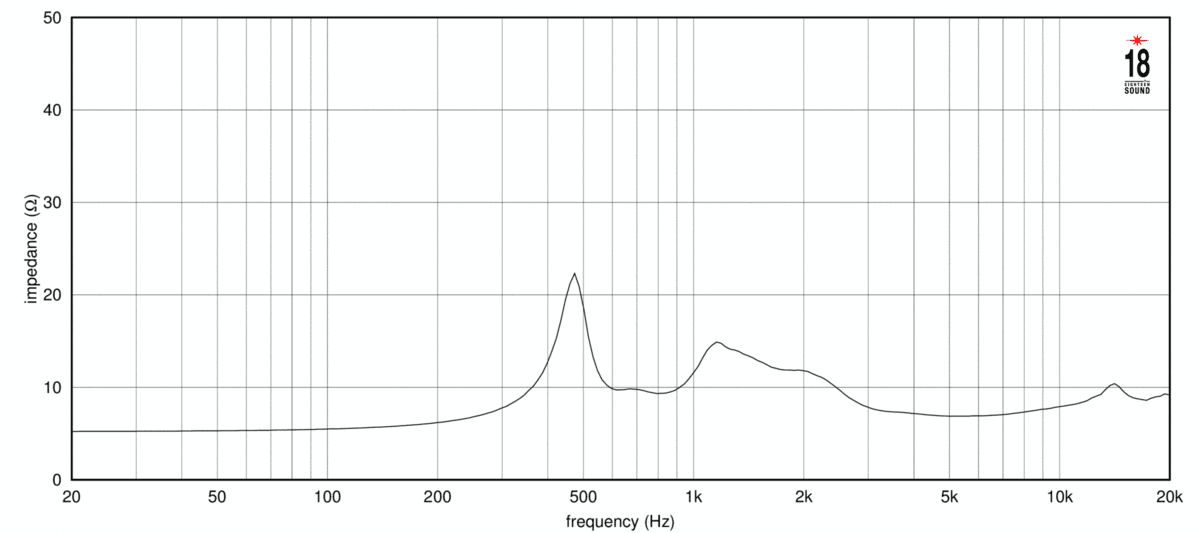

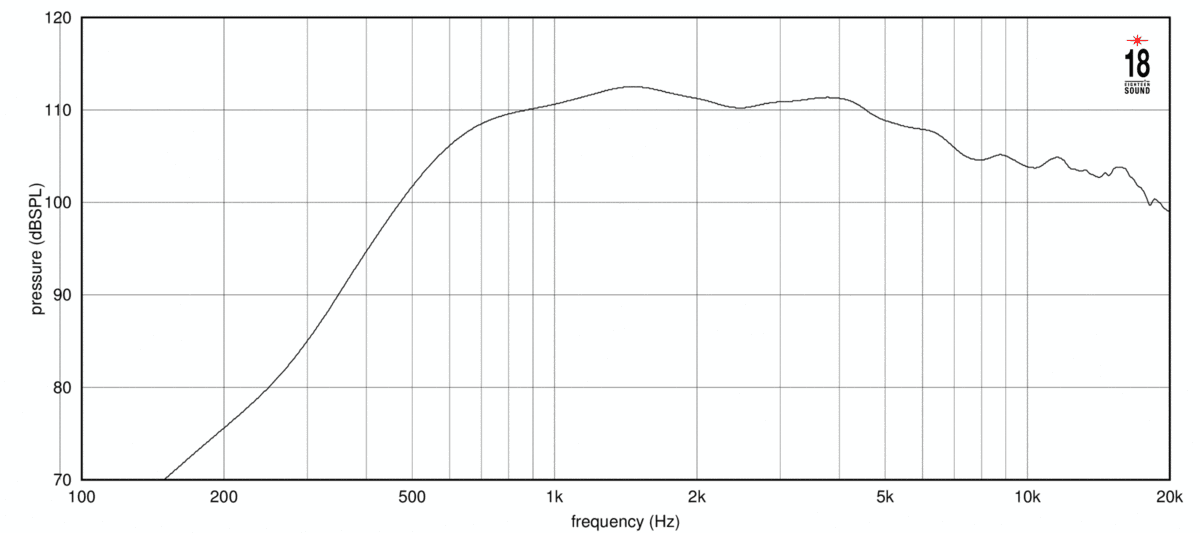

Published graphs

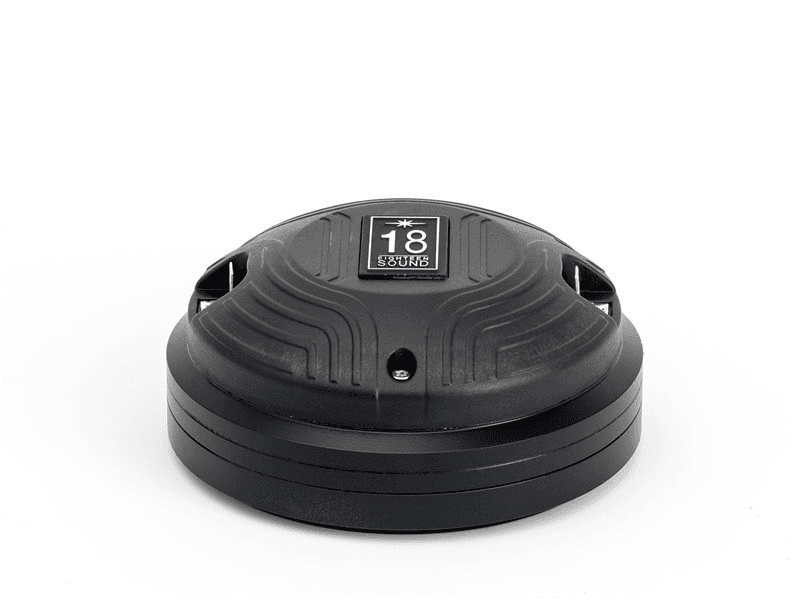

Eighteen Sound ND3SG is a 1.5-inch 8 ohm compression driver rated at 120 W RMS. The source-backed specifications include sensitivity 112 dB, range from 800 Hz, to 20000 Hz, throat 36 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 75mm
Power and response
- Sensitivity
- 112dB
- Power
- 120W
- Nominal power
- 120W
- Impedance
- 8Ω
- Min. impedance
- 6.6Ω
- Range
- 800–20000Hz
- Crossover
- 1200Hz
- Throat
- 36mm
Size and mounting
- Diameter
- 120mm
- Depth
- 53mm
- Weight
- 2.3kg
Other published values
- Power Program
- 240
Everything else Eighteen Sound lists
HF · Primary · 1.4″
- SPL
- 112dB
- Power
- 120W
- Impedance
- 8Ω
- Sensitivity
- 112dB
- Low limit
- 800Hz
- Nominal power
- 120W
- Power Program
- 240
- High limit
- 20000Hz
- Throat
- 36mm
- Manufacturer sensitivity
- 112dB
- Min. impedance
- 6.6Ω
- Voice coil
- 75mm
- Crossover
- 1200Hz
- Weight
- 2.3kg
- Diameter
- 120mm
- Depth
- 53mm
No current price found. Pricing may appear after the next vendor refresh.
