1.5-inch compression driver · 75 mm voice coil · 80 W
Eighteen Sound ND1480BE 16Ω
16 Ω
No price for delivery to the UK
- SPL
- 112dB
- Pe
- 80W
- Xover
- –
- Throat
- 36mm
- VC
- 75mm

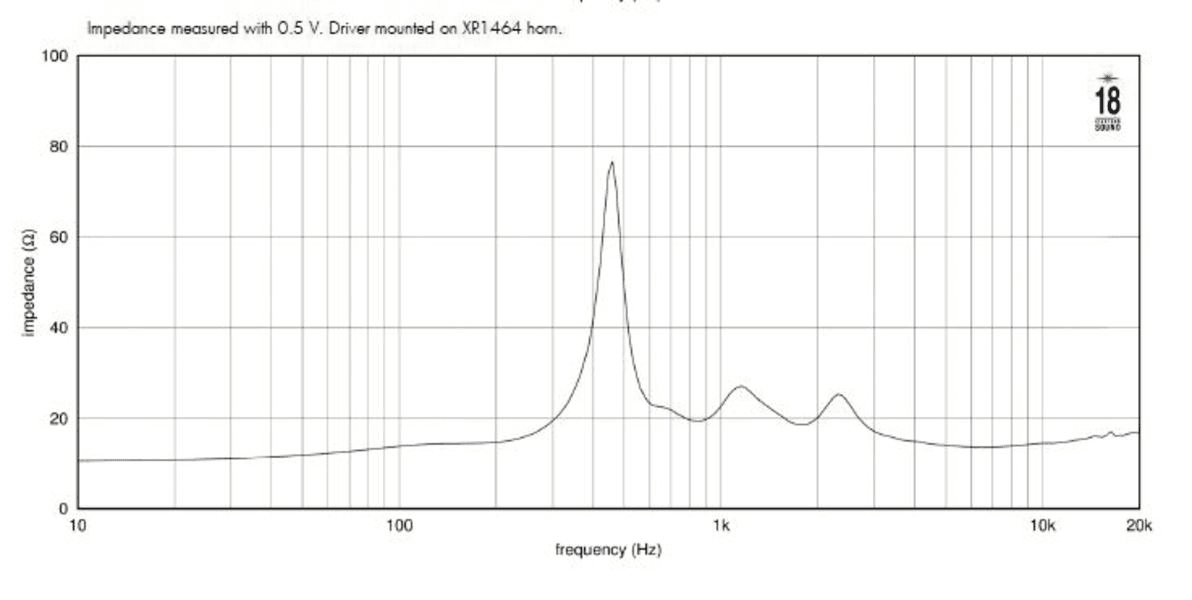

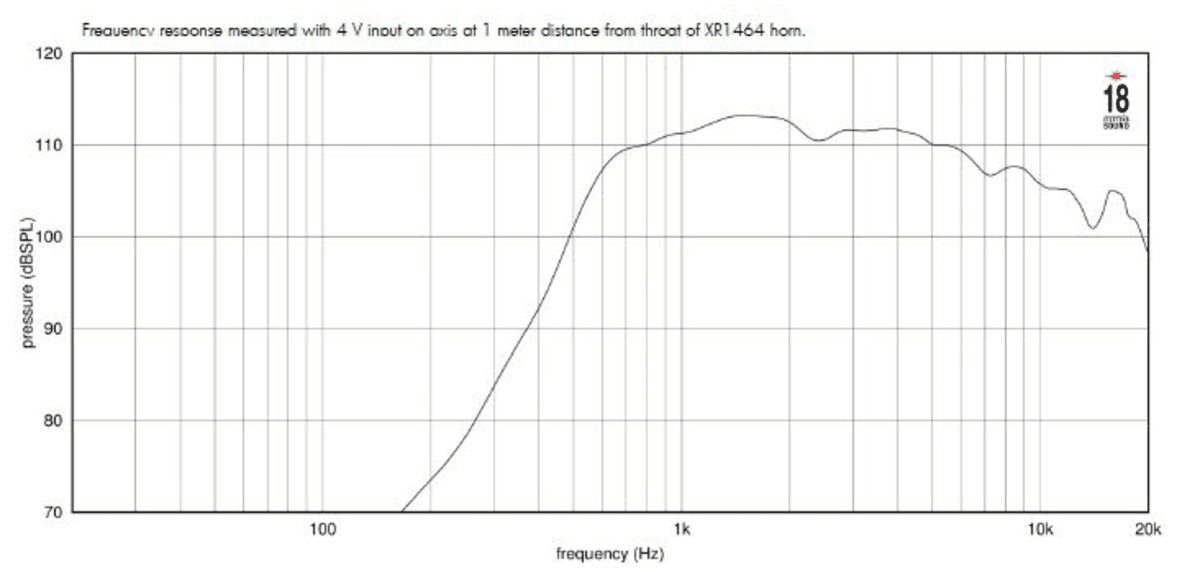

Published graphs
Eighteen Sound ND1480BE is a 1.5-inch 16 ohm compression driver rated at 80 W RMS. The source-backed specifications include sensitivity 112 dB, throat 36 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Partial source evidence
Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.
Material fields not published: Frequency range (low), Frequency range (high)
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Motor and cone
- Voice coil
- 75mm
Power and response
- Sensitivity
- 112dB
- Power
- 80W
- Nominal power
- 80W
- Impedance
- 16Ω
- Min. impedance
- 10.6Ω
- Throat
- 36mm
Size and mounting
- Diameter
- 131mm
- Depth
- 62mm
- Weight
- 3.1kg
Other published values
- Power Program
- 200
Everything else Eighteen Sound lists
HF · Primary · 1.4″
- SPL
- 112dB
- Power
- 80W
- Impedance
- 16Ω
- Sensitivity
- 112dB
- Nominal power
- 80W
- Power Program
- 200
- Throat
- 36mm
- Manufacturer sensitivity
- 112dB
- Min. impedance
- 10.6Ω
- Voice coil
- 75mm
- Weight
- 3.1kg
- Diameter
- 131mm
- Depth
- 62mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £3,468.05 | Back order | Visit shop at Lean Audio |
