1.5-inch compression driver · 75 mm voice coil · 100 W

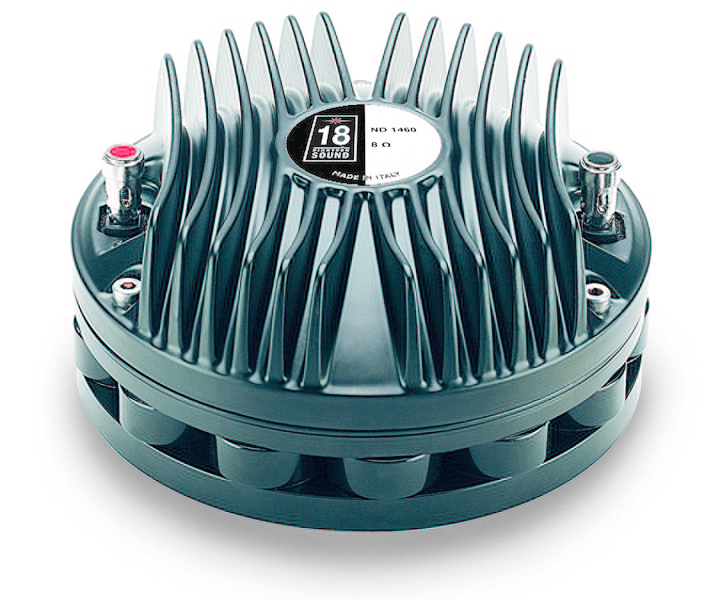

Eighteen Sound ND1460T 8Ω
8 Ω · 500–20000 Hz
No current price
- SPL
- 110dB
- Pe
- 100W
- Xover
- 800Hz
- Throat
- 35mm
- VC
- 75mm

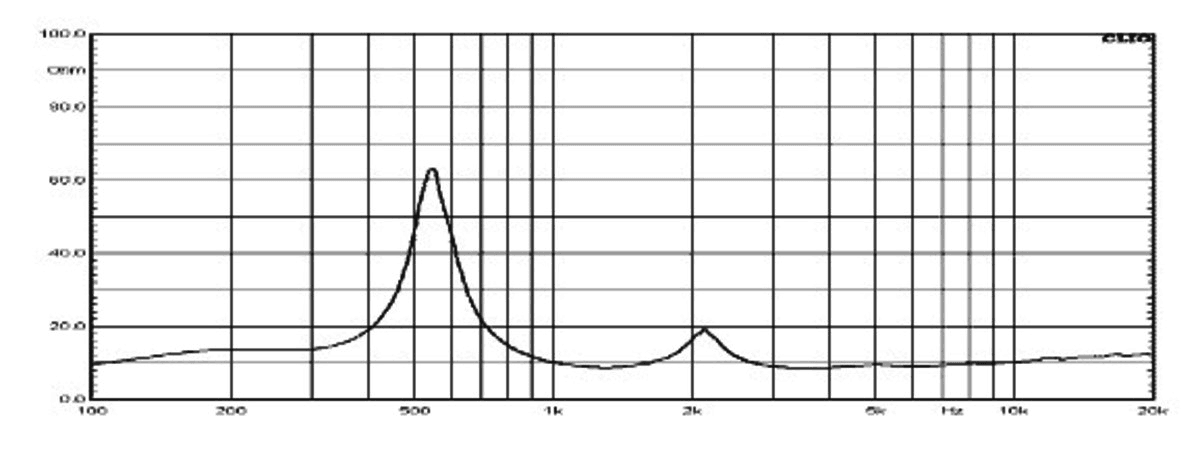

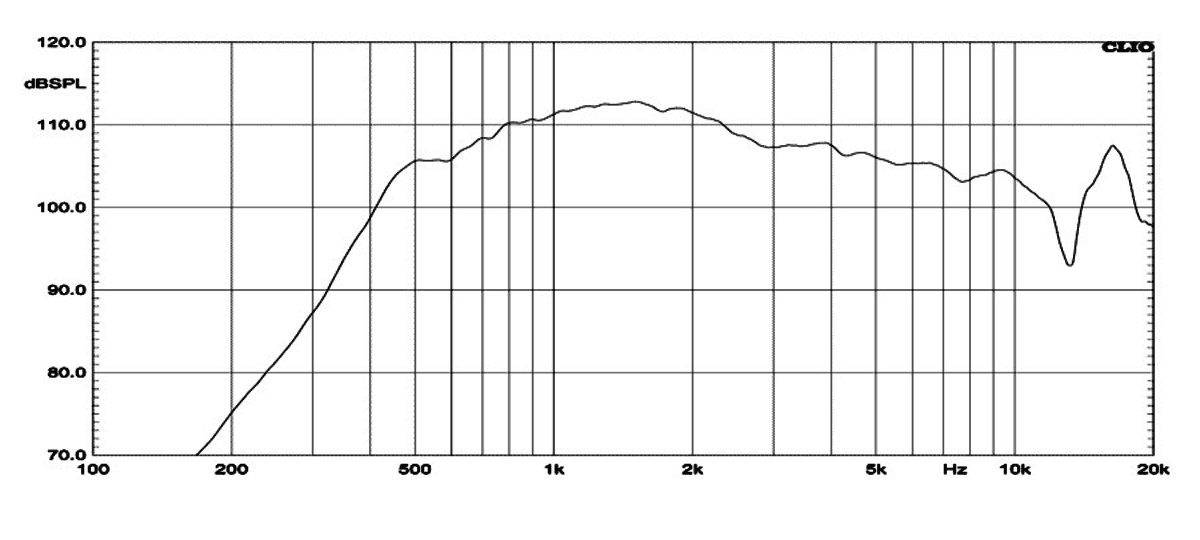

Published graphs
Eighteen Sound ND1460T is a 1.5-inch 8 ohm compression driver rated at 100 W RMS. The source-backed specifications include sensitivity 110 dB, range from 500 Hz, to 20000 Hz, throat 35 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 75mm
Power and response
- Sensitivity
- 110dB
- Power
- 100W
- Nominal power
- 100W
- Impedance
- 8Ω
- Min. impedance
- 8Ω
- Range
- 500–20000Hz
- Crossover
- 800Hz
- Throat
- 35mm
Size and mounting
- Diameter
- 132mm
- Depth
- 62mm
- Weight
- 2.9kg
Other published values
- Power Program
- 200
Everything else Eighteen Sound lists
HF · Primary · 1.4″
- SPL
- 110dB
- Power
- 100W
- Impedance
- 8Ω
- Sensitivity
- 110dB
- Low limit
- 500Hz
- Nominal power
- 100W
- Power Program
- 200
- High limit
- 20000Hz
- Throat
- 35mm
- Manufacturer sensitivity
- 110dB
- Min. impedance
- 8Ω
- Voice coil
- 75mm
- Crossover
- 800Hz
- Weight
- 2.9kg
- Diameter
- 132mm
- Depth
- 62mm
