1-inch compression driver · 35 mm voice coil · 30 W
Eighteen Sound ND1020 8Ω
8 Ω · 1600–20000 Hz
No price for delivery to the UK
- SPL
- 109dB
- Pe
- 30W
- Xover
- 1600Hz
- Throat
- 25mm
- VC
- 35mm

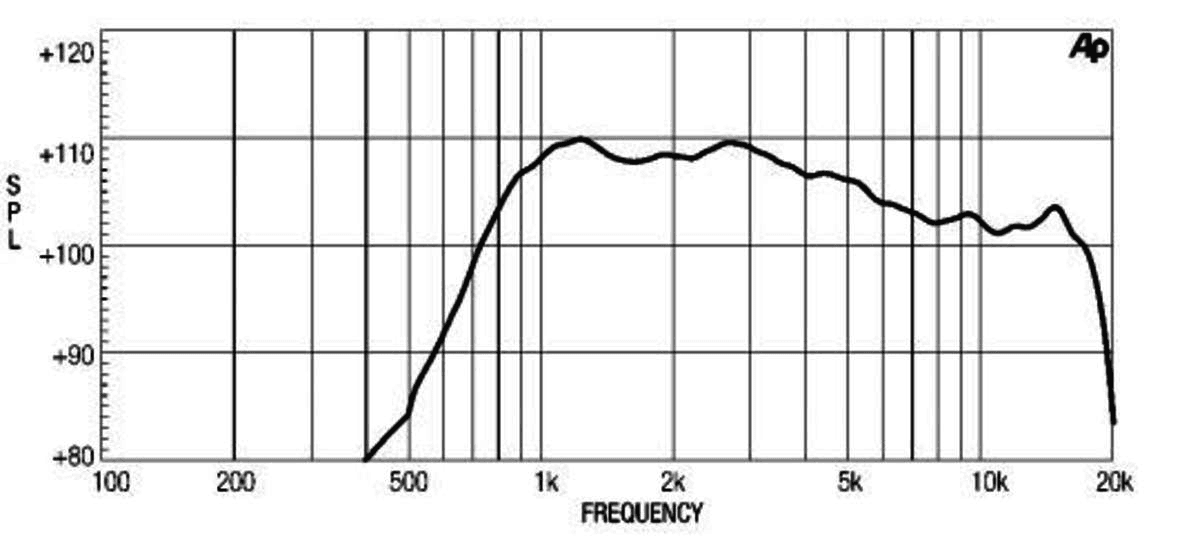

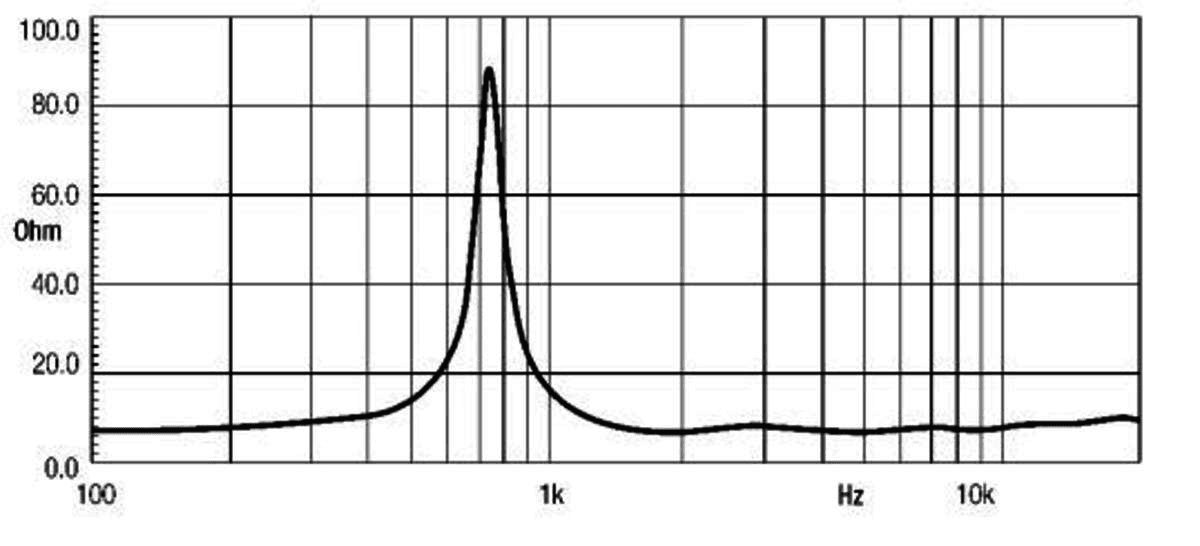

Published graphs
Eighteen Sound ND1020 is a 1-inch 8 ohm compression driver rated at 30 W RMS. The source-backed specifications include sensitivity 108.5 dB, range from 1600 Hz, to 20000 Hz, throat 25 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 35mm
Power and response
- Sensitivity
- 108.5dB
- Power
- 30W
- Nominal power
- 30W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 1600–20000Hz
- Crossover
- 1600Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 85mm
- Depth
- 40mm
- Weight
- 0.7kg
Other published values
- Power Program
- 60
Everything else Eighteen Sound lists
HF · Primary · 1″
- SPL
- 108.5dB
- Power
- 30W
- Impedance
- 8Ω
- Sensitivity
- 108.5dB
- Low limit
- 1600Hz
- Nominal power
- 30W
- Power Program
- 60
- High limit
- 20000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 108.5dB
- Min. impedance
- 6.5Ω
- Voice coil
- 35mm
- Crossover
- 1600Hz
- Weight
- 0.7kg
- Diameter
- 85mm
- Depth
- 40mm
